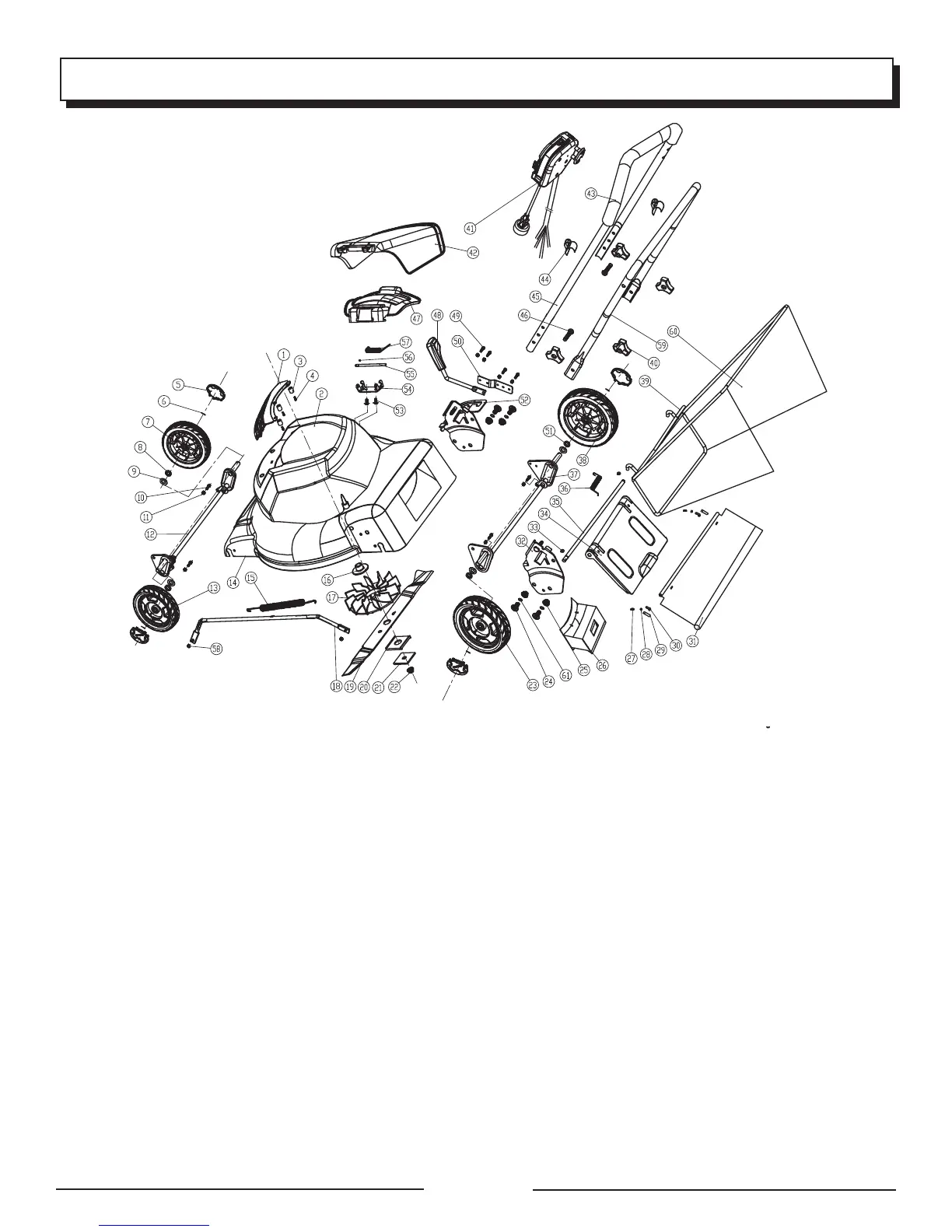

EXPLODED VIEW/PARTS LIST
MODEL UT13220
Key
Part
No.
No.
Description Qty.
1 R8403-516201 motor vent 1
2 R8020-516212SB motor cover 1
3 R8025-516201WA bolt sleeve 3
4 R8SJAB40-14B self-tapping screw 3
5 R8020-516206 motor cover 4
6 R8PA25-20D cotter pin 4
7 R8121-516103 7 in right front wheel 1
8 R8224-516201 front wheel ferrule 2
9 R8202-516202 washer 4
10 R8SACD05-12B pan head screw 4
11 R8NG-05B self locking nut 12
12 R8440-516201 20 in front wheel axle 1
13 R8121-516104 7 in left front wheel 1
14 R8006-516201 deck 1
15 R8342-517002 extension spring 1
16 R8224-516202 spindle guard 1
17 R8403-517001WA fan 1
18 R8087-516202 20 in link bar 1
19 R8231-516201 blade 1
20 R8181-517002WA blade insulator 1
21 R8321-517006 spacer 1
22 R8207-517001 blade nut 1
23 R8121-516101 8 in left rear wheel 1
24 R8SBCD10-20D bolt M10*20 4
25 R8ND-10D flange nut 4
26 R8020-516204SB mulching plug 1
27 R8SJAD04-12B pan head screw 2
28 R8NG-04B self-locking nut 2
29 R8187-516201 rubber board backup plate 2
30 R8186-517002 clip 2
31 R8181-516208SB rear flap 1
32 R8440-516101 height adjustment bracket left 1
33 R8CE-08B ring washer 2
34 R8020-516216 rear discharge door 1
35 R8081-516211 rear discharge pin 1
36 R8342-516210 rear compression spring 1
37 R8440-516202 20 in rear axle assy 1
38 R8121-516102 8 in right rear wheel 1
39 R8291-516201 grass catcher frame 1
40 R8313-513701 knob 4
41 R8000-516002 switch and power cable assy 1
42 R8020-516203SB side discharge deflector 1
43 R8331-516201 soft grip (not sold separately) 1
44 R8007-517001 cord guide 2
45 R8001-516201 upper handle with soft grip 1
46 R8206-517001 bolt 2
47 R8020-516202SB side discharge door 1
48 R8087-516101 height adjustment handle 1
49 R8SACD05-14B screw 4
50 R8321-517009 spring board 1
51 R8224-516201 rear wheel ferrule 2
52 R8440-516102 height adjustment bracket right 1
53 R8SQDD06-08D flange bolt 2
54 R8321-517008 side discharge bracket 1
55 R8081-516204 side discharge pin 1
56 R8CE-05B E-ring 1
57 R8342-516202 compression spring 1
58 R8NG-06B self locking nut 5
59 R8001-516202 lower handle 1
60 R8102-516202 grass catcher bag 1
61 R8WS-10B spring pad 4
Key
Part
No.
No.
Description Qty.
