Page 18

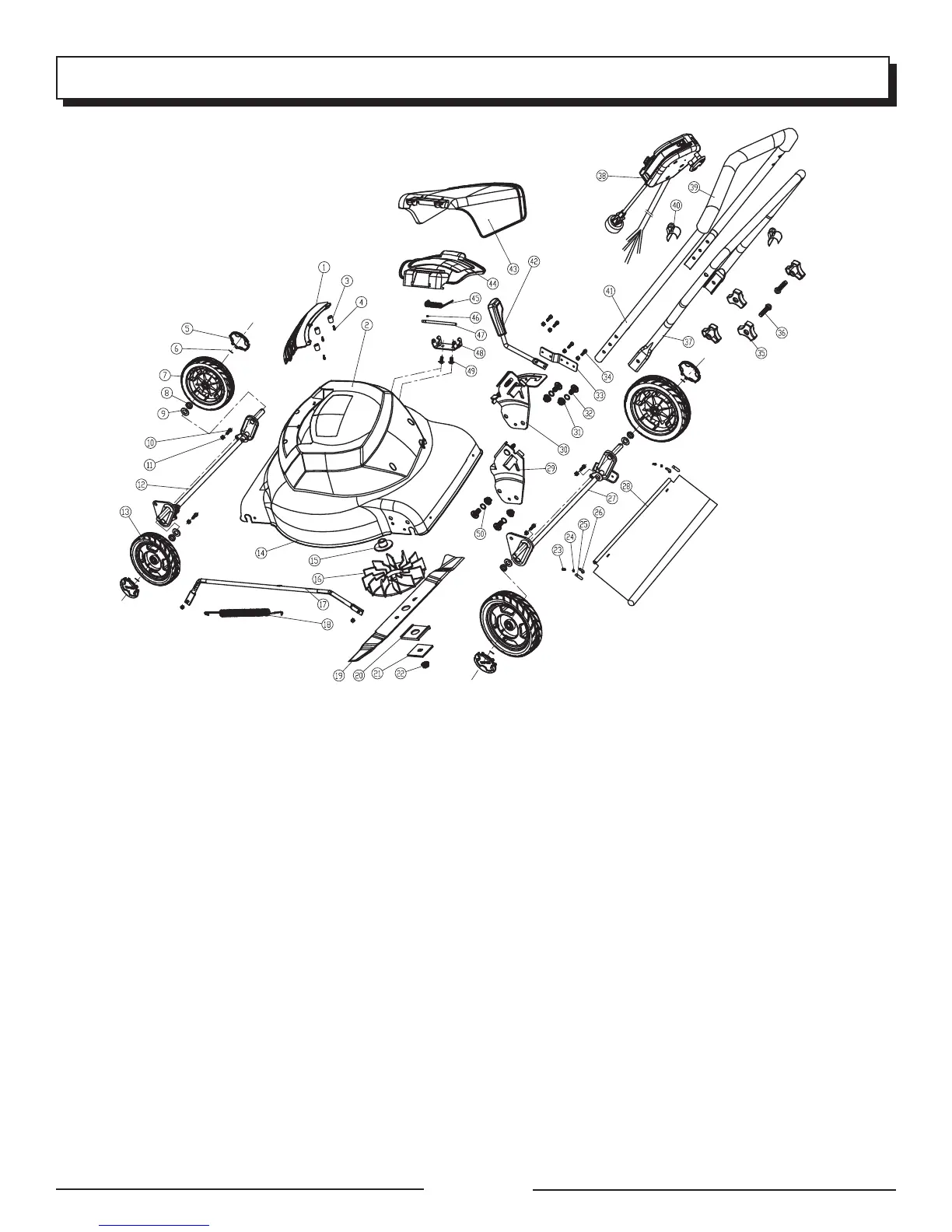

EXPLODED VIEW/PARTS LIST
MODEL UT13218
Key
Part
No.
No.
Description Qty.
1 8403-516201 motor vent 1
2 8020-517006 motor cover 1
3 8025-516201 bolt sleeve 1
4 8SJAB40-14B self-tapping screw 3
5 8020-516207 7 in wheel cover 4
6 8PA25-20D cotter pin 4
7 8121-516001 7 in right wheel 2
8 8224-516201 wheel ferrule 4
9 8202-516202 washer 4
10 8SACD05-12B pan head screw 4
11 8NG-05B self locking nut 12
12 8440-517001 18 in front axle 1
13 8121-516002 7 in left wheel 2
14 8006-517001 deck 1
15 8224-516202 spindle guard 1
16 8403-517001 fan 1
17 8087-517002 link bar 1
18 8342-517002 extension spring 1
19 8231-517001 blade 1
20 8181-517002 blade insulator 1
21 8321-517006 spacer 1
22 8207-517001 blade nut 1
23 8SJAD04-12B cross screw 2
24 8NG-04B lock nut 2
25 8187-516201 rubber board backup plate 2
26 8186-517002 clip 2
27 8440-517002 18 in rear axle 1
28 8181-517008SB rear flap 1
29 8440-517003 height adjustment bracket left 1
30 8440-517004 height adjustment bracket right 1
31 8ND-10D flange nut 4
32 8SBCD10-20D bolt M10x20 4
33 8321-517009 spring board 1
34 8SACD05-14B screw 4
35 8313-513701 knob 4
36 8206-517001 bolt 2
37 8001-517002 lower handle 1
38 8000-516002 switch and power cable assy 1
39 8331-516201 soft grip (not sold separately) 1
40 8007-517001 cord guide 2
41 8001-517001 upper handle with soft grip 1
42 8087-516001 height adjustment handle 1
43 8020-517003 side discharge deflector 1
44 8020-517002 side discharge door 1
45 8342-516202 compression spring 1
46 8CE-05B E-ring 1
47 8081-516204 side discharge pin 1
48 8321-517008 side discharge bracket 1
49 8SQDD06-08D flange bolt 2
50 R8WS-10B spring pad 4
Key
Part
No.
No.
Description Qty.
