ADJUSTMENTS
ADJUSTING THE SHAFT

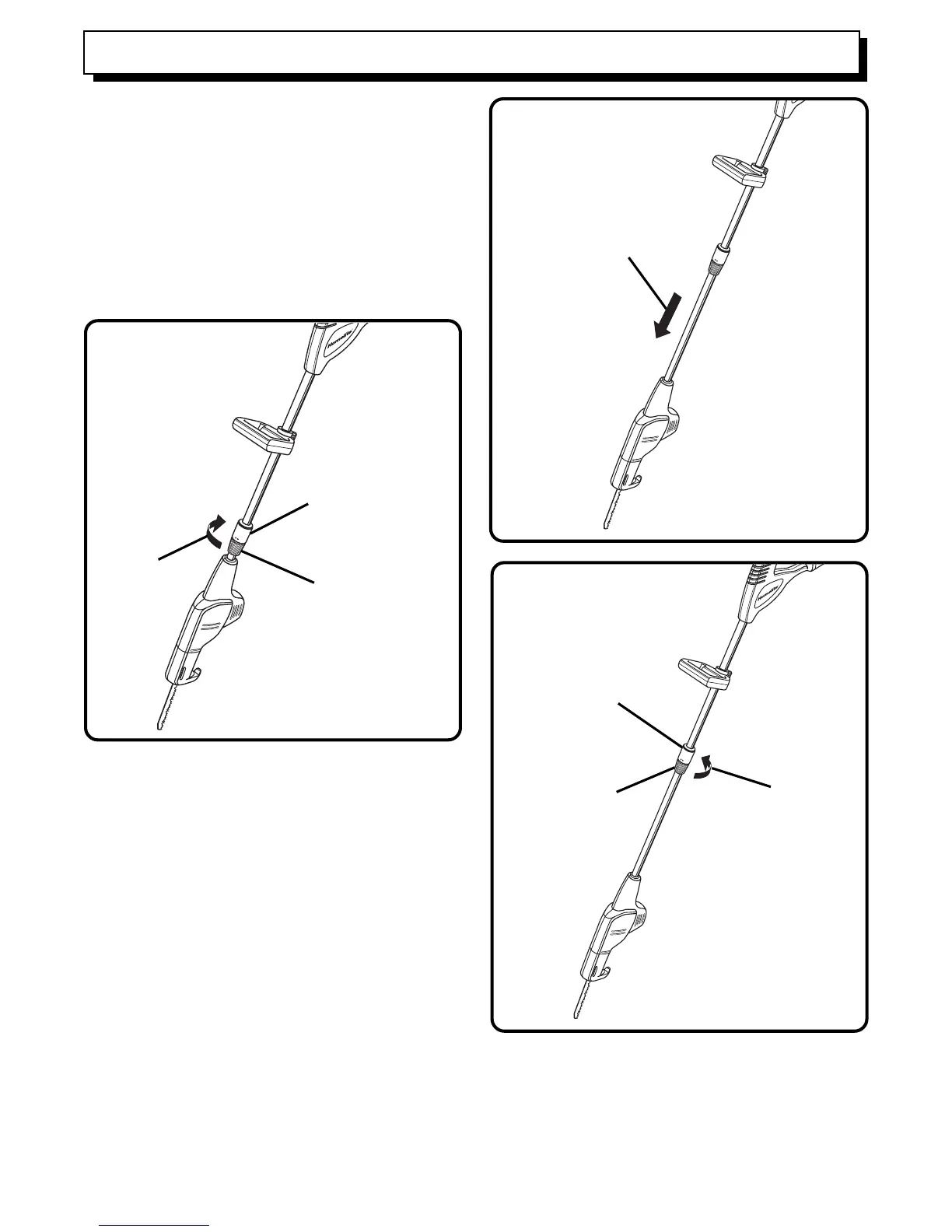

See Figures 7, 8 and 9.
1 Rotate the lower portion of the shaft adjustment
collar to the “Unlock” position. See Figure 7 .
2 Lower shaft should now be free to slide down from
inside the upper shaft. Make sure the shaft is pulled
out to the desired position. See Figure 8 .
3 Rotate shaft adjustment collar to the “Lock” position
and tighten securely. See Figure 9 .
Fig. 7
Fig. 8
Fig. 9
SHAFT
ADJUSTMENT
COLLAR
LOWER PORTION
OF SHAFT
ADJUSTMENT
COLLAR
TO UNLOCK
COLLAR
TO LOCK
COLLAR
LOWER PORTION
OF SHAFT
ADJUSTMENT
COLLAR
SHAFT
ADJUSTMENT
COLLAR
SLIDE OUT TO
DESIRED POSITION
U
L
C
L
N
O
K
U
L
C
L
N
O
K
