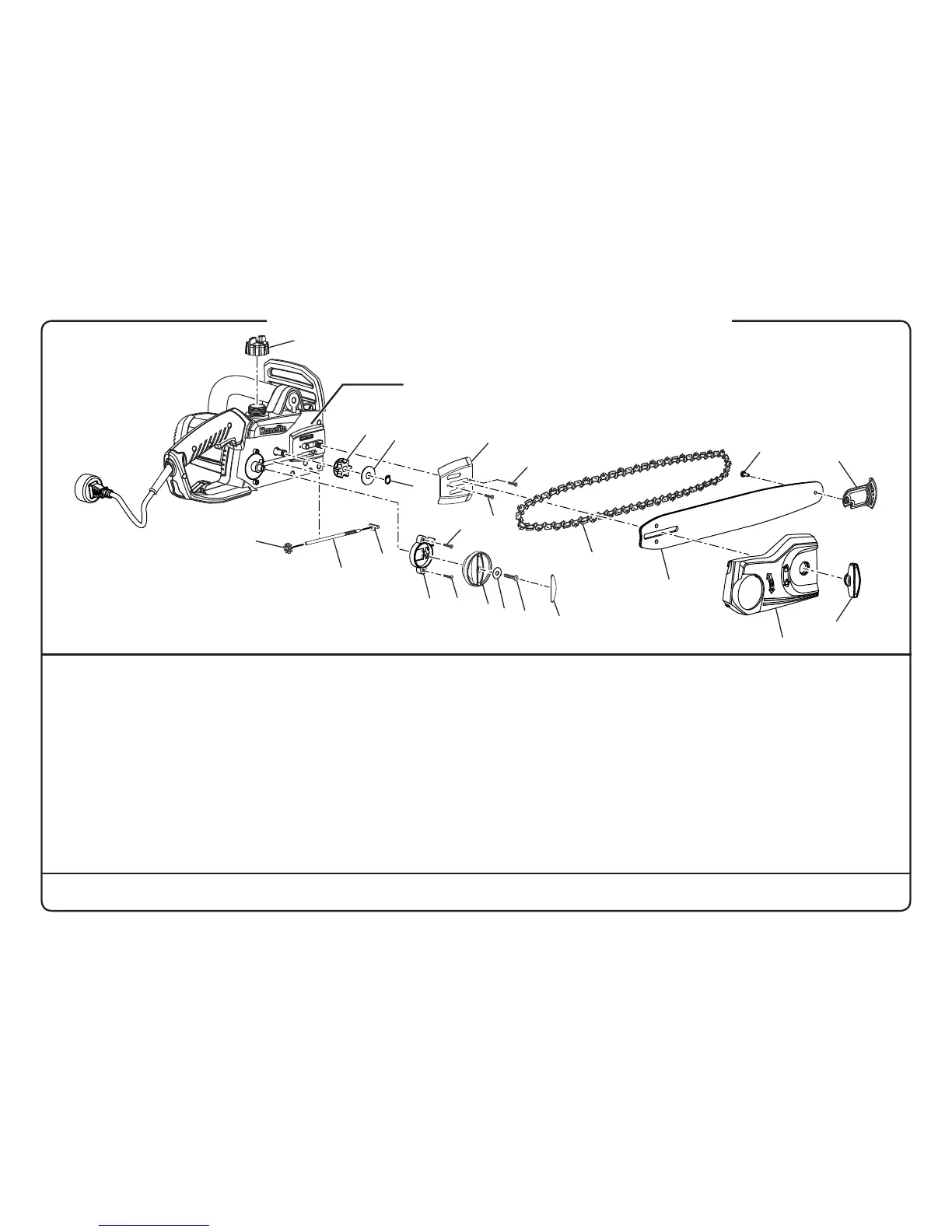

HOMELITE CHAIN SAW – MODEL NUMBER UT43103 − ALL VERSIONS
2
NOTE: The assembly shown represents an important part of the Double Insulated System. To avoid the possibility of alteration or damage to
the system, service should be performed by your nearest Homelite authorized service dealer.
1 34109154G Oil Reservoir Cap ......................................................... 1
2 33904159G Adjustment Gear .......................................................... 1
3 33202419G Adjustment Shaft ......................................................... 1
4 33301419G Adjustment Pin ............................................................. 1
5 34111159G Gear Cover ................................................................... 1
6 32203404G Screw (M4.2 x 10 mm) ................................................. 3
7 31102573G Adjustment Knob ......................................................... 1
8 33302102G Washer ......................................................................... 1
9 34106159-1G Insert ............................................................................ 1
10 901212001 Chain (.375 x 52 link, 14 in.) ......................................... 1
11 310625001 Guide Bar (14 in. with SAFE-T-TIP) .............................. 1
12 31101419G Chain Cover Assembly ................................................. 1
13 31101573G Chain Cover Lock Knob ............................................... 1
14 308949001 SAFE-T-TIP ................................................................... 1
15 660640001 Screw w/Washer .......................................................... 1
16 33902102G Sprocket ....................................................................... 1
17 3221675AG Screw (M3 x 12 mm) .................................................... 2
18 33302405G Adjustment Pin Cover .................................................. 1
19 3290875G Retaining Ring .............................................................. 1
20 3290186AG Washer (M4) ................................................................. 1
NOT SHOWN
34113419G Sleeve
988000307 Operator’s Manual
18
2
3
4
10
11
12
14
15
19
8
16
13
7
9
6
6
17
5
17
6
20
1
SEE NOTE
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY
PARTS LIST
