Page 27 — English

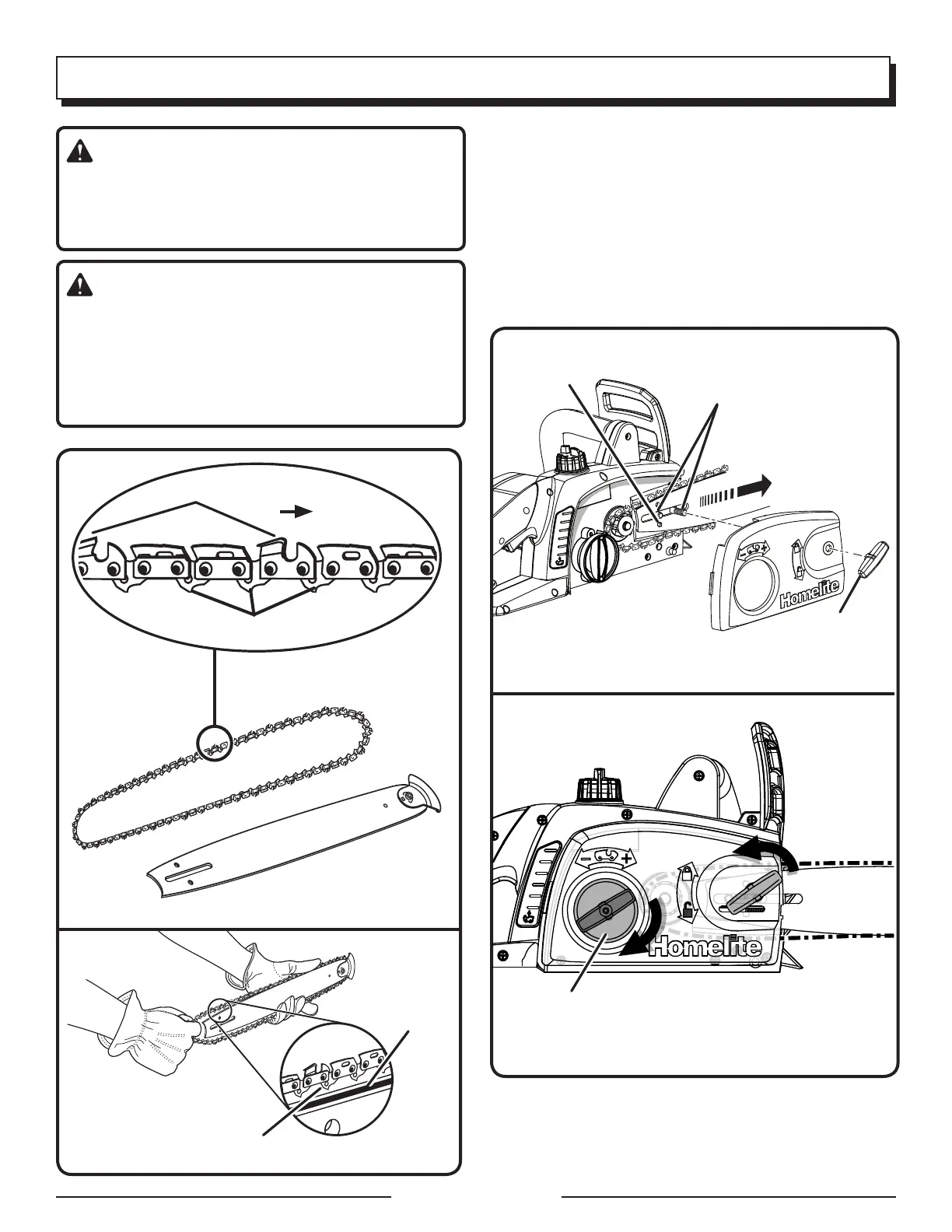

Fig. 31
BAR GROOVE
CHAIN DRIVE LINKS
Fig. 29
CUTTERS
CHAIN ROTATION
CHAIN DRIVE LINKS
Fig. 28
Fig. 30
CAUTION:
Always wear gloves when handling the bar and
chain; these components are sharp and may
contain burrs.
WARNING:
Never touch or adjust the chain while the motor
is running. The saw chain is very sharp; always
wear protective gloves when performing main-
tenance to the chain to avoid possible serious
lacerations.
BAR STUDS
CHAIN TENSIONING
PIN HOLE
CHAIN TENSIONING
KNOB
MAINTENANCE
NOTE: When replacing the guide bar and chain,
always use the specified bar and chain listed in
the Bar and Chain Combinations section later
in this manual.
Disconnect chain saw from power supply.
Rotate the chain cover lock knob counterclock-
wise and remove knob.
Remove the chain cover.
CHAIN COVER
LOCK KNOB
