Page 8
NOZZLE
BLOWER
TUBE
KNOB
ASSEMBLY
WARNING:
Stop the engine and disconnect the spark plug wire
before installing parts, making adjustments, cleaning, or
when not in use. Failure to do so could result in possible
serious personal injury.

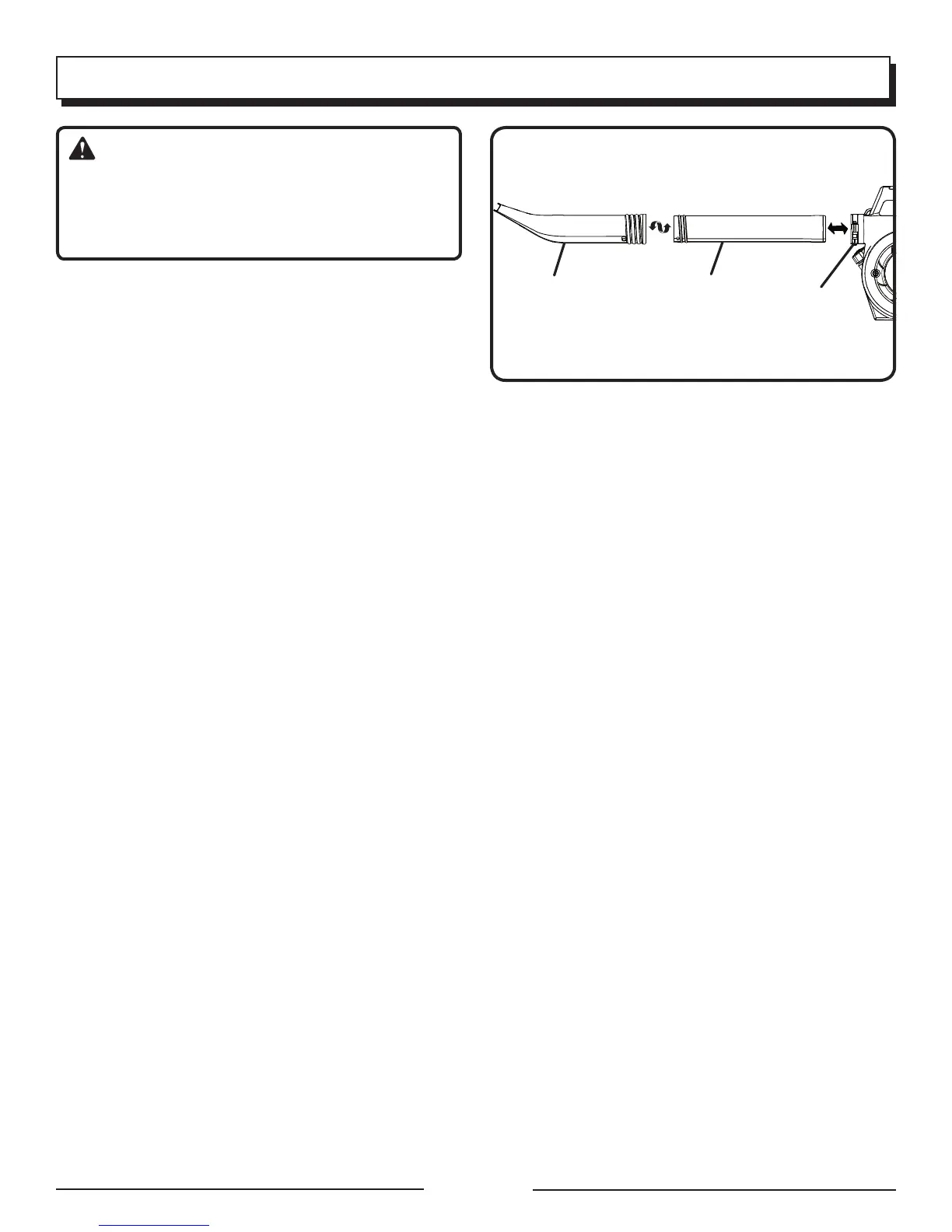

ASSEMBLING THE BLOWER TUBES
See Figure 2.
� Screw the nozzle onto the blower tube and tighten
securely. Check tightness after initial run and retighten if
needed.
Place clamp around the neck of the blower housing outlet.
Do not tighten the knob yet.
Align the locking tab on blower tube with the slot in the
blower housing outlet; push the tube into the housing.
Twist to lock into place.
Rotate the tube so the nozzle is pointing upward as
shown. Tighten the knob securely.
To remove the tubes, loosen the knob on the clamp.
Rotate the tubes to unlock them and remove from the
blower housing outlet.
