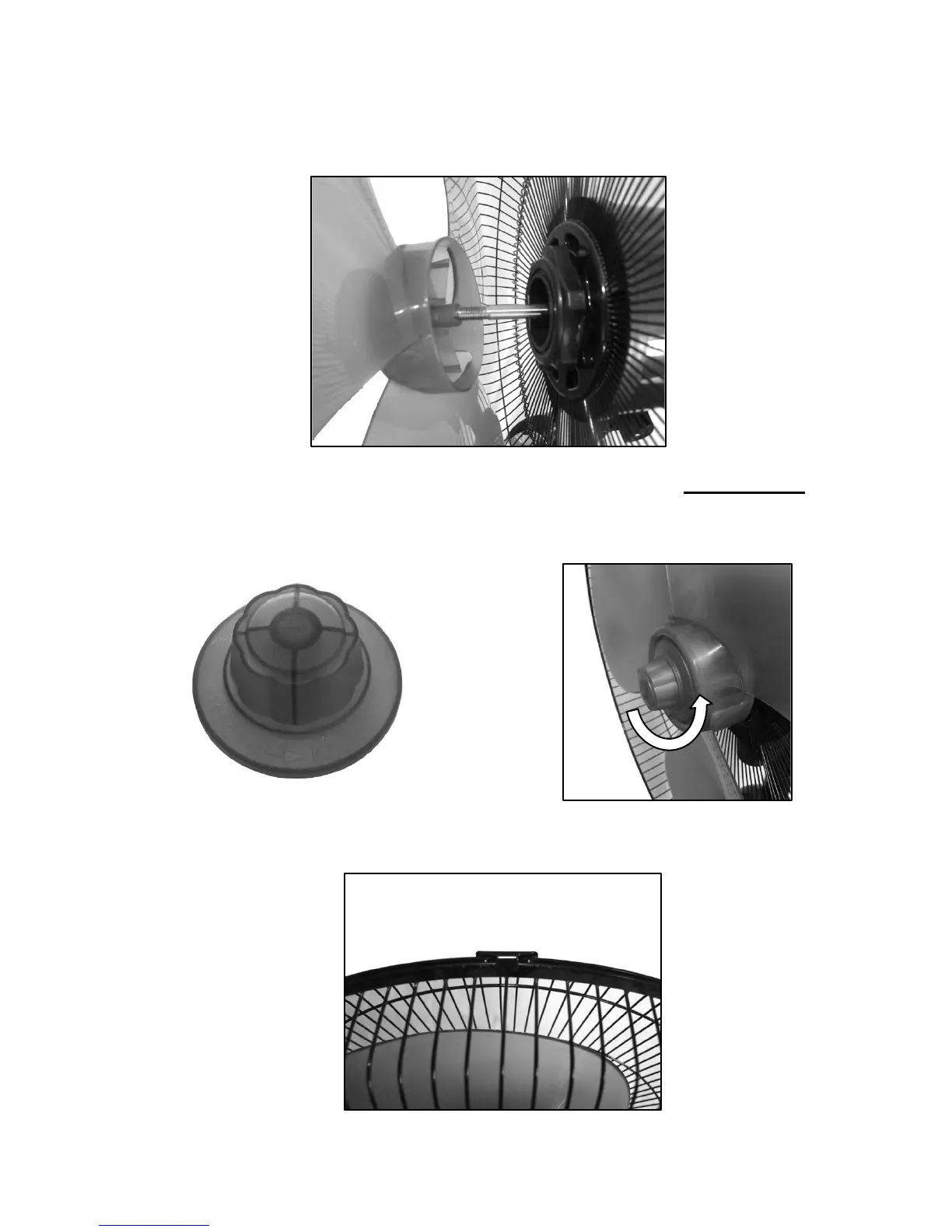

• Place the Fan Blade onto the motor spindle.
Note: The groove in the rear centre of the fan blade aligns with a T-bar on the motor
spindle to ensure correct positioning.
• Fix the blade into place by gently hand tightening the spinner anticlockwise onto
the end of the motor spindle. The spinner nut is self-tightening when the motor
starts so do not force it, just nip it up.
• Fit locating tab on the front Grille over the rear grille at the top.
