Homemaker LB-FS-40 - Misting Generator and Water Tank

Page 10 of 16

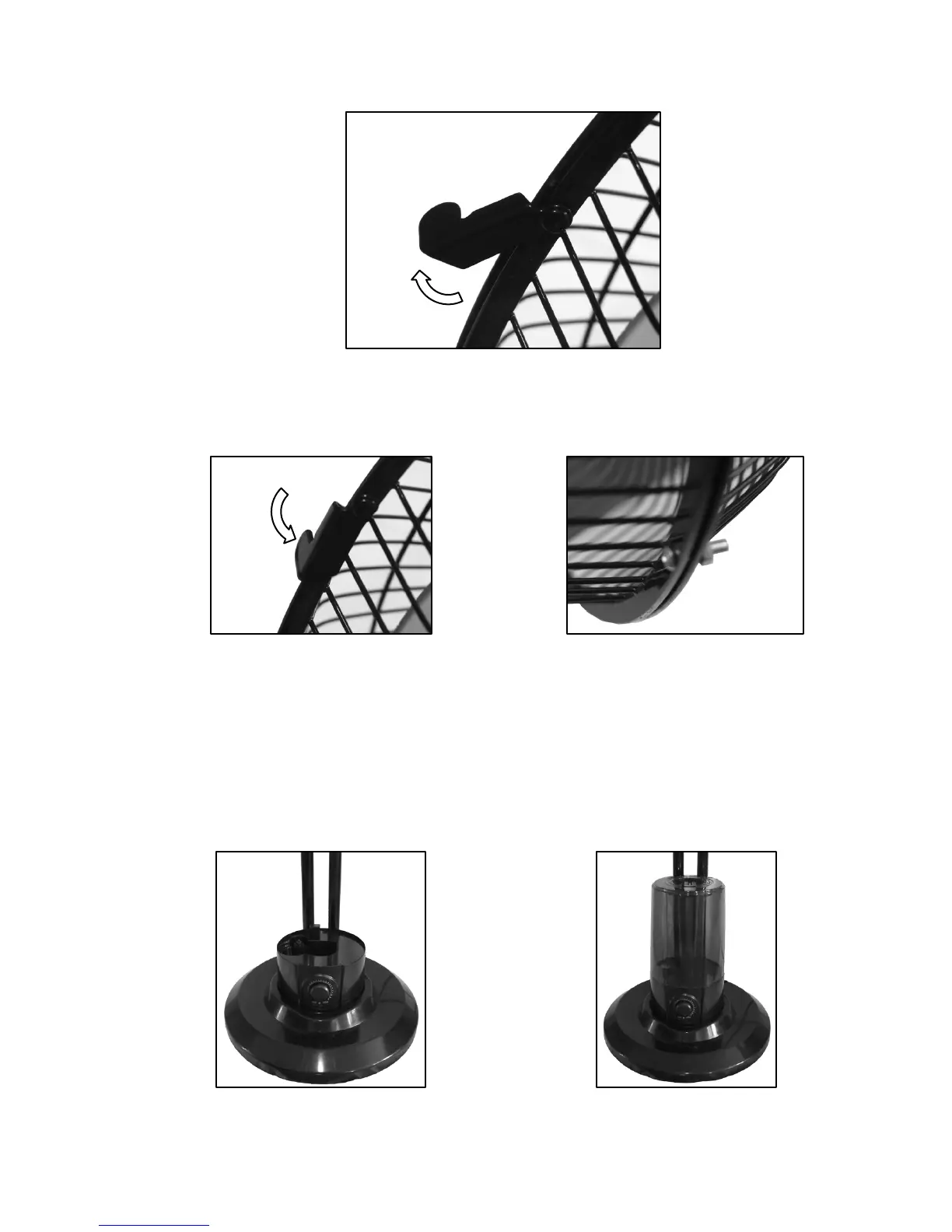

• Open up all locking clips on the front safety grille by rotating outward
• Place the Front safety grille into position and secure it by closing the clips over the
outer rim. The screw and nut at the bottom of the grille must be fitted.
3.4 Misting Generator and Water Tank
• Place the Misting Generator onto the Base ensuring it is seated properly in its
recess.
• Sit the water tank on top of the Misting Generator.
