52
Start-up
Danfoss RAV
The Danfoss valve bodies have elongated notches around
their circumference, which also ensure that the adapter is
properly seated when it snaps on.
During installation, please ensure that the pins in-
side the adapter are lined up with the notches on
the valve.

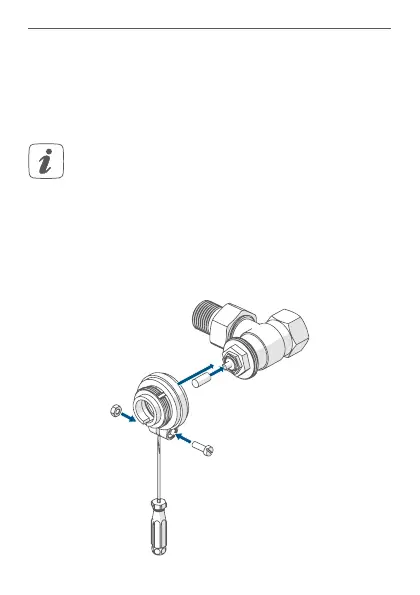

• Snap the adapter completely onto the valve.
• Attach the adapter using the provided screw and
nut.
• Place the spigot extension on the valve pin.
Danfoss RAV
