3
System Communications

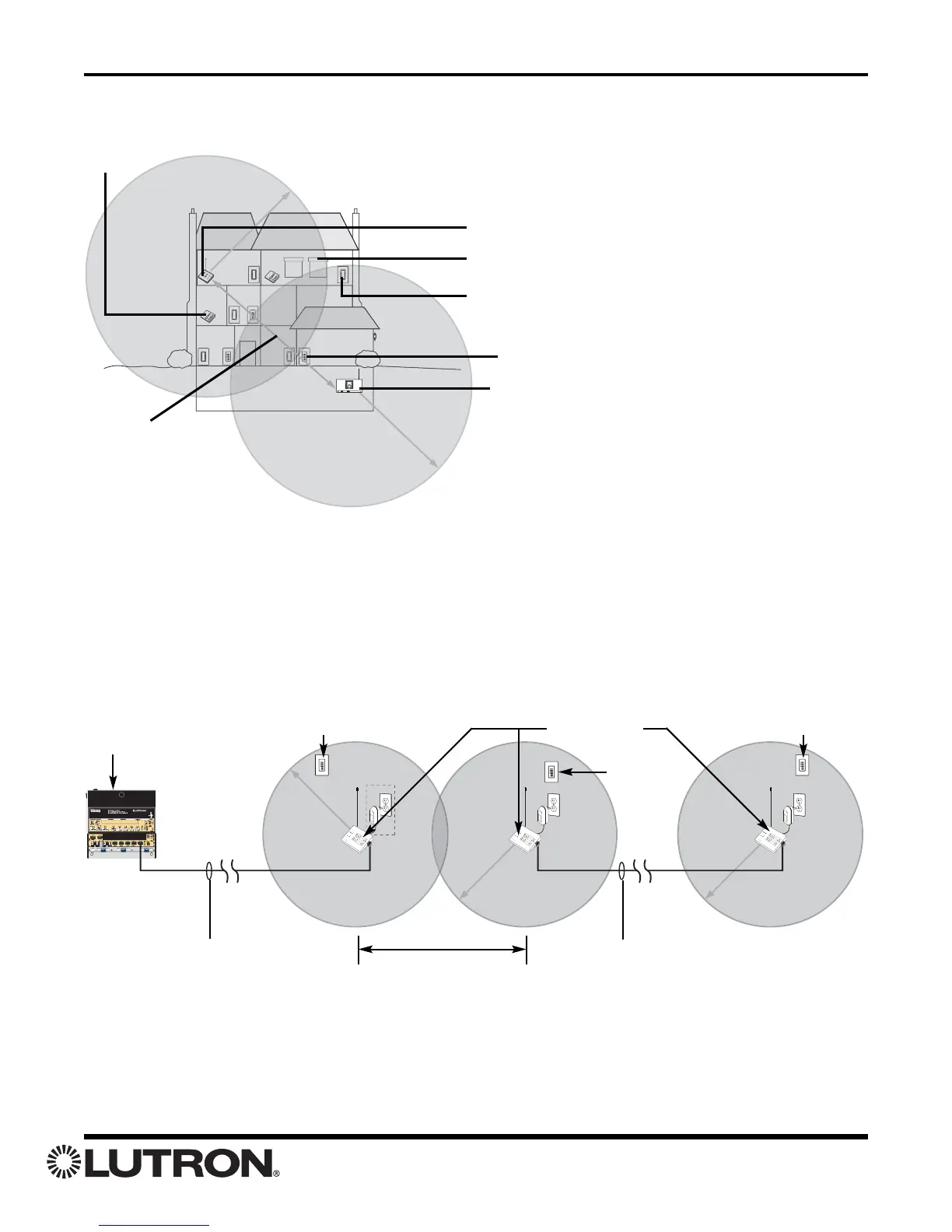

RF Communications Notes
• Hybrid Repeaters must be located within 30 feet (9 m) of the RF Dimmers, Switches, Shades and Keypads they are
covering.
• Hybrid Repeaters must also be within 60 feet (18 m) of an RF Processor or another repeater.
• Multiple repeaters may be necessary to provide adequate coverage. Up to four (4) repeaters may be used with each
RF Processor, and up to five (5) Hybrid Repeaters may be used with each 8 Series
TM Processor or 4 SeriesTM
Processor (equipped with Hybrid Repeater Link).
Hybrid Repeater Link (Wired) Communications
RF Tabletop
Keypad
RF Dimmer
30 ft. (9 m) maximum
RF Processor
RF Shade
RF Keypad
Hybrid Repeater
30 ft. (9 m) maximum
60 ft. (18 m) maximum
between RF
Processors and
Repeaters, or between
Repeaters
Hybrid Repeater Link
1000 ft. (305 m) maximum wire length per run
HomeWorks
® P5 Processor
(8 Series shown)
RF Keypad
30 ft. (9 m)
maximum
(optional)
30 ft. (9 m)
maximum
30 ft. (9 m)
maximum
60 ft. (18 m)
maximum
RF Keypad
RF Keypad
Hybrid Repeater
Hybrid Repeater Link
1000 ft. (305 m) maximum
wire length per run
RF Communications
Hybrid Repeater Link (Wired) Communications Notes
• Hybrid Repeater Link wiring must be in a daisy chain configuration.
• The total length of any single wire run on the Hybrid Repeater Link may be up to 1000 feet (305 m).
• The Hybrid Repeater Link (all wire runs) may contain up to five (5) Hybrid Repeaters total.
