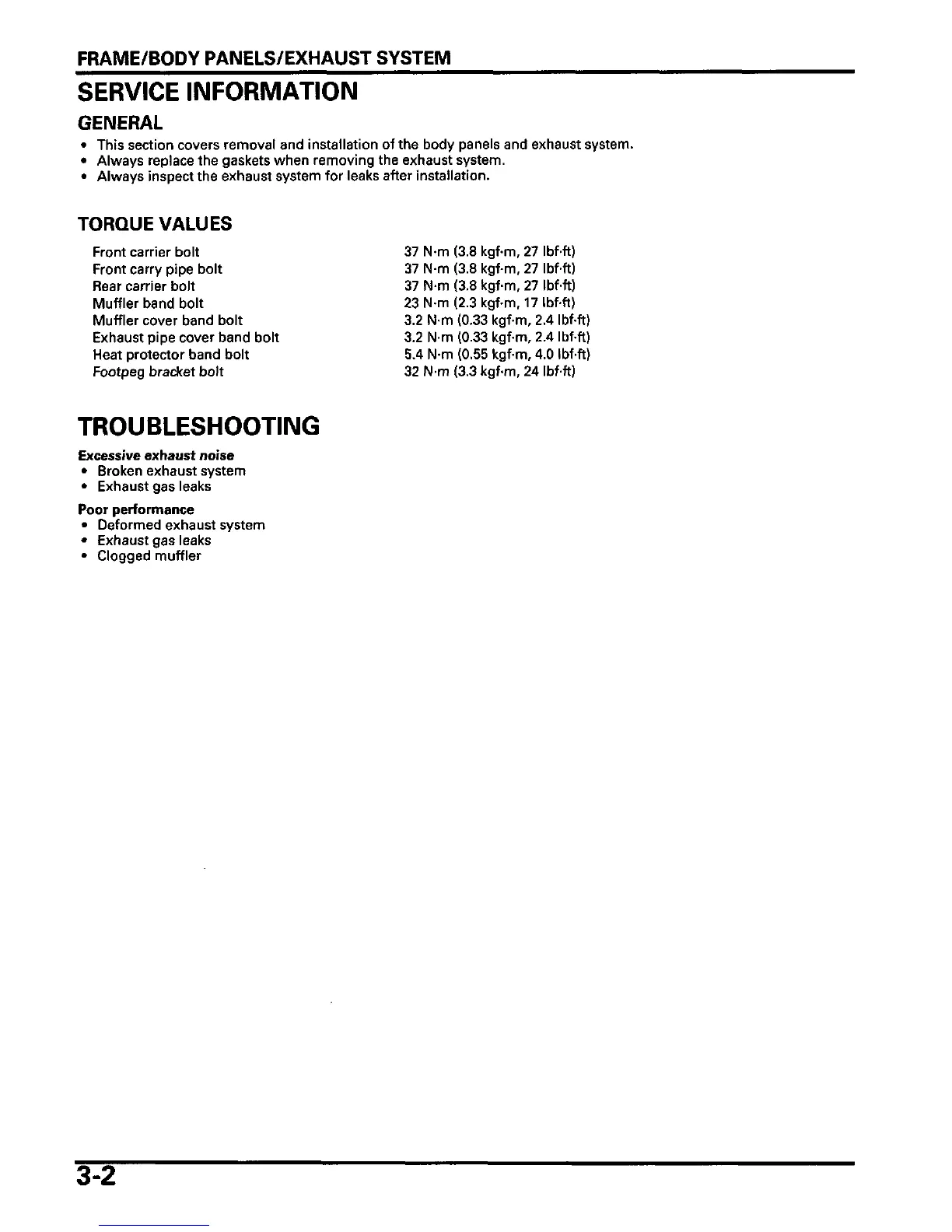

FRAME/BODY PANELS/EXHAUST SYSTEM
SERVICE INFORMATION
GENERAL
• This section covers removal and installation of the body panels and exhaust system.
• Always replace the gaskets when removing the exhaust system.
• Always inspect the exhaust system for leaks after installation.
TORQUE VALUES
Front carrier bolt 37 N-m (3.8 kgfm, 27 Ibf-ft)
Front carry pipe bolt 37 N-m (3.8 kgfm, 27 Ibf-ft)
Rear carrier bolt 37 N-m (3.8 kgf-m, 27 Ibf-ft)
Muffler band bolt 23 N-m (2.3 kgf-m, 17 Ibf-ft)
Muffler cover band bolt 3.2 N-m (0.33 kgf-m, 2.4 Ibf-ft)
Exhaust pipe cover band bolt 3.2 N-m (0.33 kgf-m, 2.4 Ibf-ft)
Heat protector band bolt 5.4 N-m (0.55 kgf-m, 4.0 Ibf-ft)
Footpeg bracket bolt 32 N-m (3.3 kgf-m, 24 Ibf-ft)
TROUBLESHOOTING
Excessive exhaust noise
• Broken exhaust system
• Exhaust gas leaks
Poor performance
• Deformed exhaust system
• Exhaust gas leaks
• Clogged muffler
3-2
