© 2007 American Honda Motor Co., Inc. - All Rights Reserved. All 37152 (0706) 5 of 6
5426250Y
BUS CABLE
AUDIO UNIT
BUS CABLE
14-PIN
CONNECTOR
5426260Y
AUDIO UNIT
AUDIO
BRACKET
AUDIO
BRACKET
SCREWS
(Reuse.)
ANTENNA
CONNECTOR
VEHICLE
HARNESS
BUS
CABLE
BUS
CABLE
WIRE TIE
EPT
SEALER
AIR
DUCT
HEATER
CONTROL
UNIT
OPENING
VEHICLE 30-PIN
CONNECTOR
VEHICLE 20-PIN
CONNECTOR
VEHICLE 20-PIN
CONNECTOR
VEHICLE 14-PIN
CONNECTOR
(2WD vehicle only.)

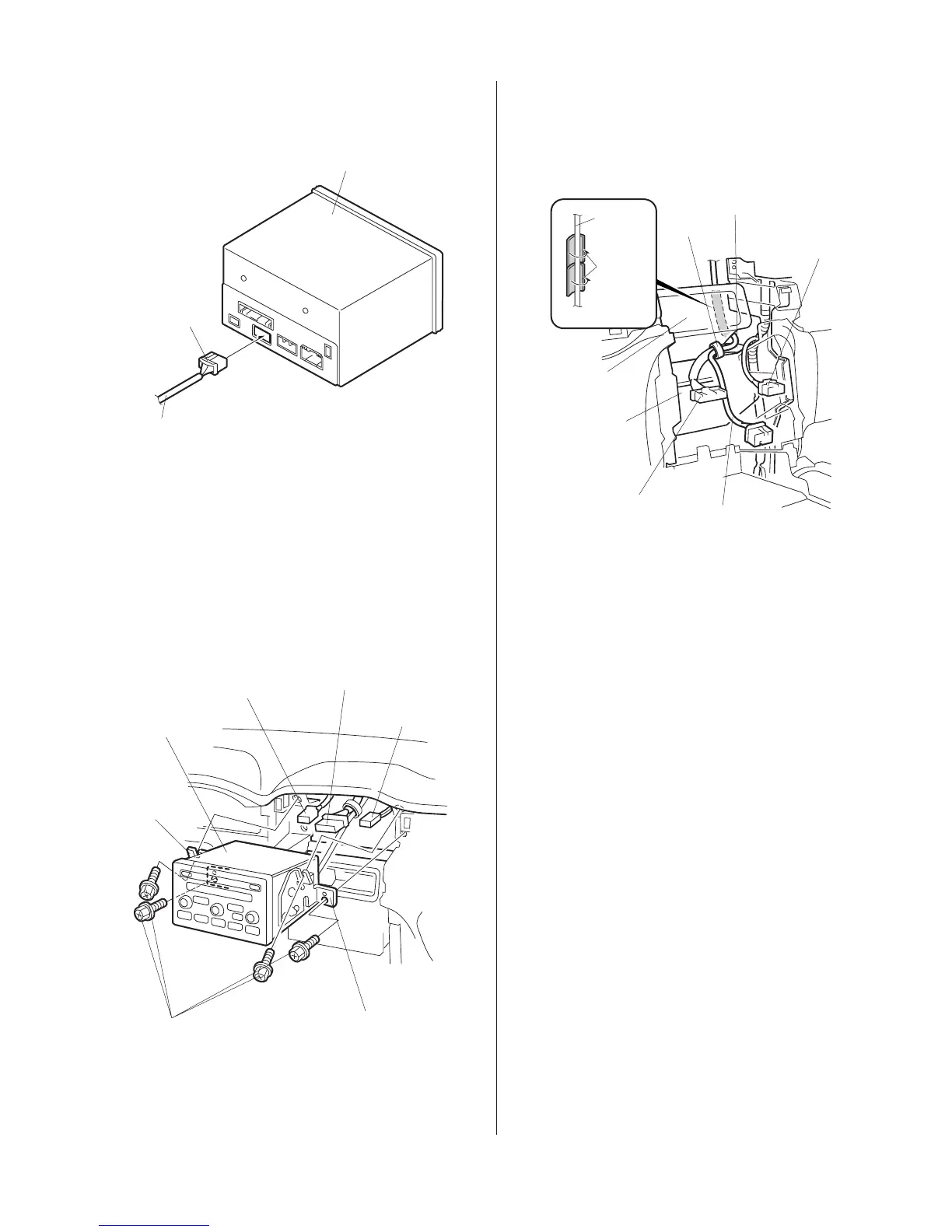

antenna connector to the audio unit. Insert the
audio unit into the audio panel opening and
secure it with the four screws that you removed in
step 6.
16. At the heater control unit opening, attach two EPT
audio unit.
15. Connect the two vehicle connectors and the
sealers to the bus cable at the location shown.
17. Secure the bus cable to the vehicle harness using
one wire tie.
18. Connect the bus cable 14-pin connector to the
To Next Page
