Honda B75 - Cylinder Block, Pistons and Crankshaft

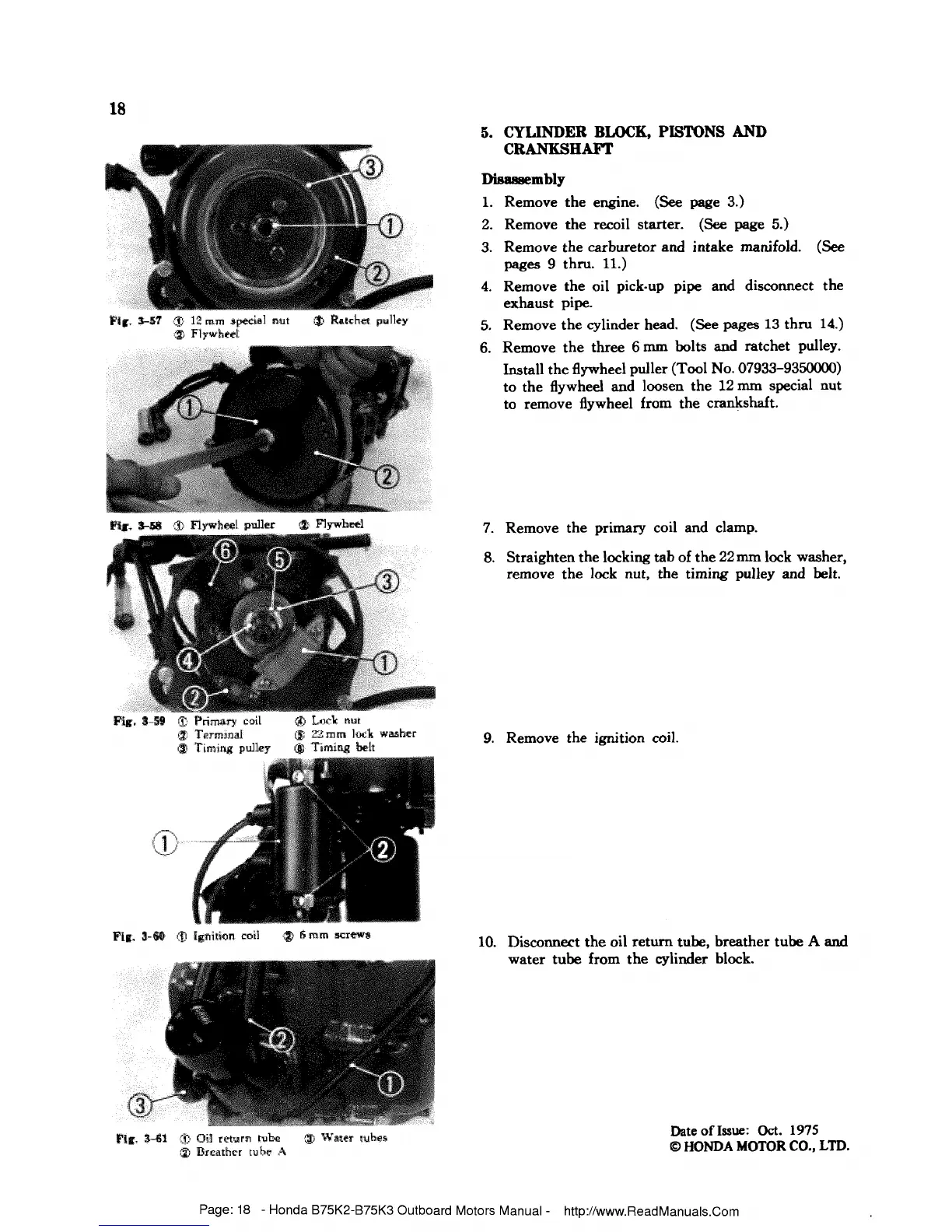

5. CYLINDER BLOCK, PISTONS AND
CRANKSHAFT
Disassembly
1. Remove the engine. (See page 3.)
2. Remove the recoil starter. (See page 5.)
3. Remove the carburetor and intake manifold. (See
pages 9 thru. 11.)
4.
Remove the oil pick-up pipe and disconnect the
exhaust pipe.
5. Remove the cylinder head. (See pages 13 thru 14.)
6. Remove the three 6 rnm bolts and ratchet pulley.
Install the flywheel puller (Tool
No. 07933-9350000)
to the flywheel and loosen the 12 rnm special nut
to remove flywheel from the crankshaft.
7. Remove the primary coil and clamp.
8. Straighten the locking tab of the 22 nun lock washer,
remove the
lock nut, the timing pulley and belt.
9. Remove the ignition coil.
10. Disconnect the oil return tube, breather tube A and
water tube from the cylinder block.
Date of Issue: Oct. 1975
Q HONDA MOTOR CO., LTD.
