Honda CB300F 2015 User Manual

•
-I
0
c
0-
(I
:::T
0
0
c!.
:J
lO
82

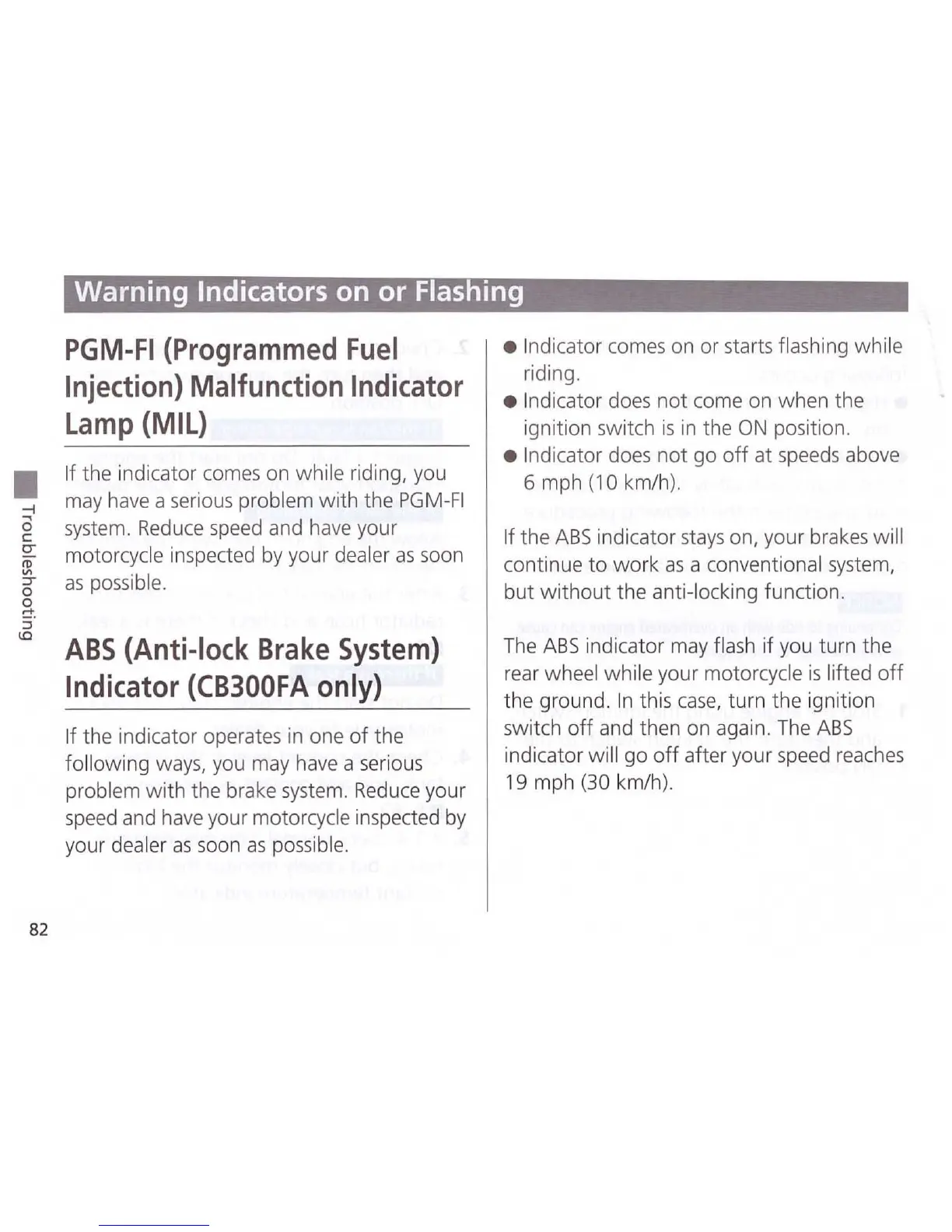

Warning Indicators on or Flashing
PGM-FI (Programmed Fuel
Injection) Malfunction Indicator
Lamp (MIL)
If the indicator comes on while riding, you
may have a serious
problem with the PGM-FI
system. Reduce speed and have your
motorcycle inspected by your dealer as soon
as possible.
ABS (Anti-lock Brake System)
Indicator (CB300FA only)
If the indicator operates in one of the
following ways, you may have a se rious
problem with the brake system. Reduce your
speed and have your
motorcycle inspected by
your dealer as soon as possible.
• Indicator
comes on or starts flashing while
riding.
• Indicator does not come on when the
ignition switch
is in the ON position.
• Indicator does not go off at speeds above
6 mph
(10 km/h).
If the ABS indicator stays on, your brakes will
continue to work as a conventional system,
but without the anti-locking function.
The
ABS indicator may flash if you turn the
rear
wheel while your motorcycle is lifted off
the ground. In this case, turn the ignition
switch
off and then on aga in . The ABS
indicator w ill go off after your speed reaches
19 mph (30 km/h).

Honda CB300F 2015 Specifications

General

Engine Type	286cc liquid-cooled single-cylinder four-stroke
Bore and Stroke	76mm x 63mm
Compression Ratio	10.7:1
Induction	PGM-FI with 38mm throttle body
Ignition	Computer-controlled digital transistorized with electronic advance
Transmission	Six-speed
Final Drive	O-ring-sealed chain
Front Suspension	37mm fork; 4.65 inches travel
Front Brake	Single 296mm disc with two-piston caliper
Rear Brake	Single 220mm disc
Front Tire	110/70-17
Rear Tire	140/70-17
Rake	25.30 degrees
Trail	98mm (3.9 inches)
Wheelbase	54.3 inches
Seat Height	30.7 inches
Fuel Capacity	3.4 gallons
Rear Suspension	Pro-Link single shock with five positions of spring preload adjustability; 4.07 inches travel
Curb Weight	348 pounds (Includes all standard equipment, required fluids and full tank of fuel-ready to ride)
