Honda CB300F 2015 User Manual

•
-I
0
c
er
if
:T
o
g. _
::i
\0
92

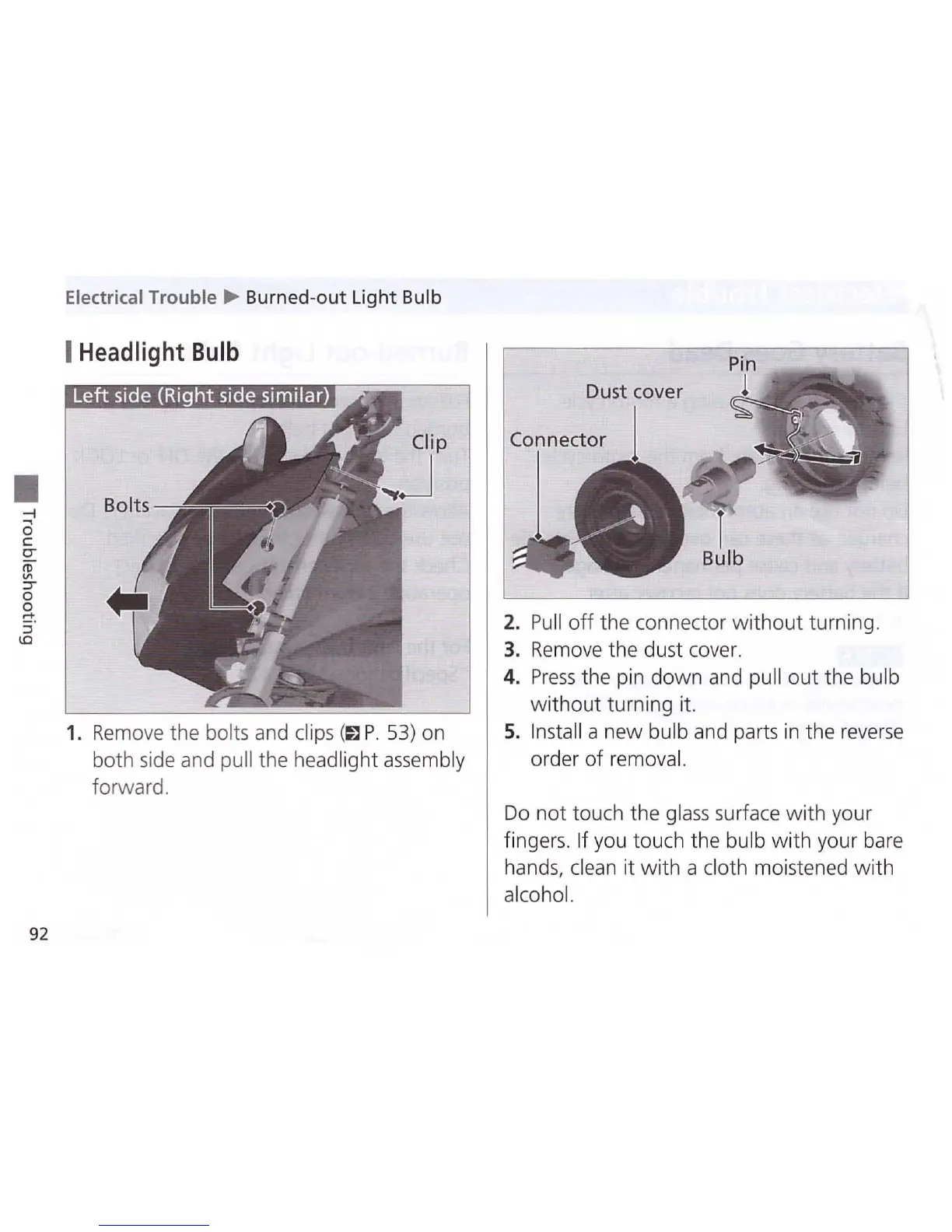

Electrical Trouble .... Burned-out Light Bulb
I Headlight Bulb
Left side (Right side similar)
1. Rem ove the bolts and clips(~ P. 53) on
both side and
pull the headlight assemb ly
forward.
2.
Pull off the connector wi thout turning.
3. Remove the dust cover.
4. Press the pin down and pull out the bulb
without turning it.
5. I nsta ll a new bulb and parts in the reverse
order of
remo va l.
Do not touch the gl ass surface with your
finger
s. If you touch the bu lb with your bare
hands,
clean it wit h a cloth moistened with
alcohol.

Honda CB300F 2015 Specifications

General

Engine Type	286cc liquid-cooled single-cylinder four-stroke
Bore and Stroke	76mm x 63mm
Compression Ratio	10.7:1
Induction	PGM-FI with 38mm throttle body
Ignition	Computer-controlled digital transistorized with electronic advance
Transmission	Six-speed
Final Drive	O-ring-sealed chain
Front Suspension	37mm fork; 4.65 inches travel
Front Brake	Single 296mm disc with two-piston caliper
Rear Brake	Single 220mm disc
Front Tire	110/70-17
Rear Tire	140/70-17
Rake	25.30 degrees
Trail	98mm (3.9 inches)
Wheelbase	54.3 inches
Seat Height	30.7 inches
Fuel Capacity	3.4 gallons
Rear Suspension	Pro-Link single shock with five positions of spring preload adjustability; 4.07 inches travel
Curb Weight	348 pounds (Includes all standard equipment, required fluids and full tank of fuel-ready to ride)
