Seat
CB500XA
#
Removal
1.
Insert the ignition key into the seat lock.
2.
Turn the key clockwise, then pull the seat
back and up.
#
Installation
1.
Align the groove of the recess with the
tab.
2.
Insert the front prong into the front stay.
3.
Insert the rear prongs into the rear stays.
4.
Push forward and down on the rear of the
seat until it locks in place.
Make sure that the seat is locked securely
in position to pull it up lightly.
The seat locks automatically when closed.
Take care not to lock your key in the
compartment under the seat.
Removing & Installing Body Components u Seat
Maintenance
125

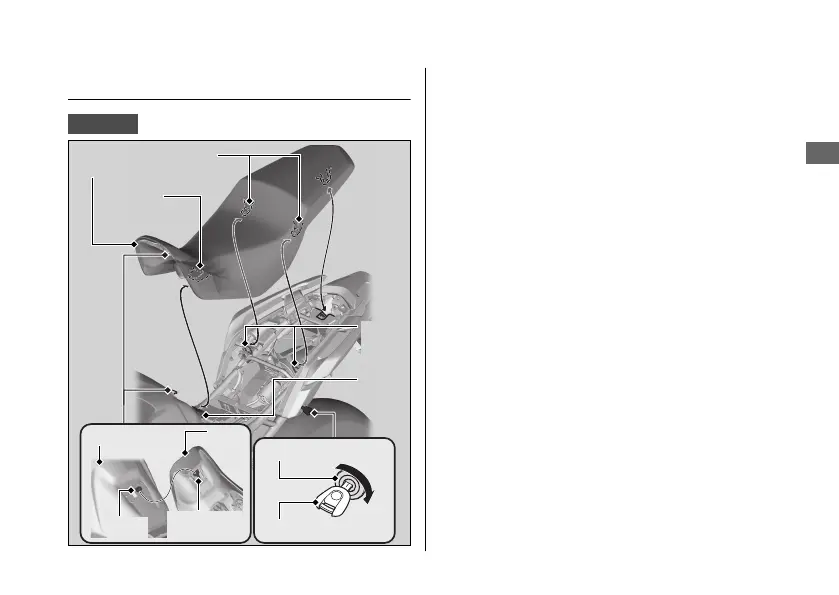

Seat
Tab
Groove of
the recess
Seat lock
Ignition key
Rear
stays
Front
prong
Rear
prongs
Front
stay
Seat
Fuel tank
To Next Page
