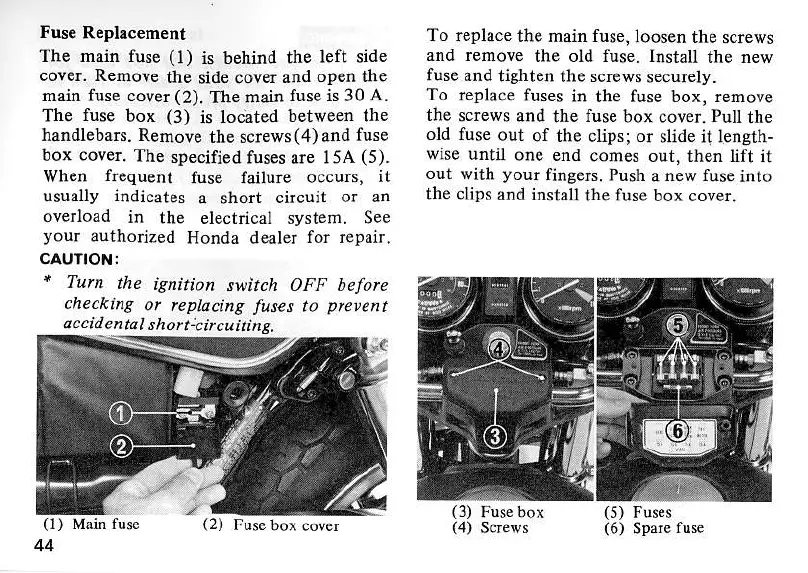

Honda CB650 Custom - Fuse Replacement

The main fuse
(1)
is behind the
left side
cover. Remove
tle
side cover
and
open the
nain fuse cover
(2).
The nain
fuse is 30 A.
The
fuse
box
(3)
is located
tetween the
hrndlebaB. Remove
the screws(4)
and
fuse
box cover.
The
specifi€d
fus€s are 15A
(5).
When
frequent
fuse failure
occuis,
it
usualy indicates
a short
circuit
o! an
overload
in
the el€ctrical systen. See
your
autho.ized
Honda dealer
fot relan.
*
Tuln
the
icnition
switch OFF belorc
checking
o/ rcplacing
fise!
to
prctent
d c.id
en
td I s h ot
tii cuitins.
To replace
the main fuse,
loosen the sc.ews
and remove
the old fuse. Install
the new
fuse and
tidten the sciews
securely.
To replace
fuses
in the fuse box, renove
the
screws and the fuse
box cover-
Pull
the
old fuse
out
of rhe cLips; or
slide il leneth-
wise uniil
one end
com€s out, then lift it
out
with
your
fingers.
Push
a
new fuse
into
the clips
and install
the tuse box cover.
