Honda CRF125F 2020 User Manual

12 Motorcycle Safety

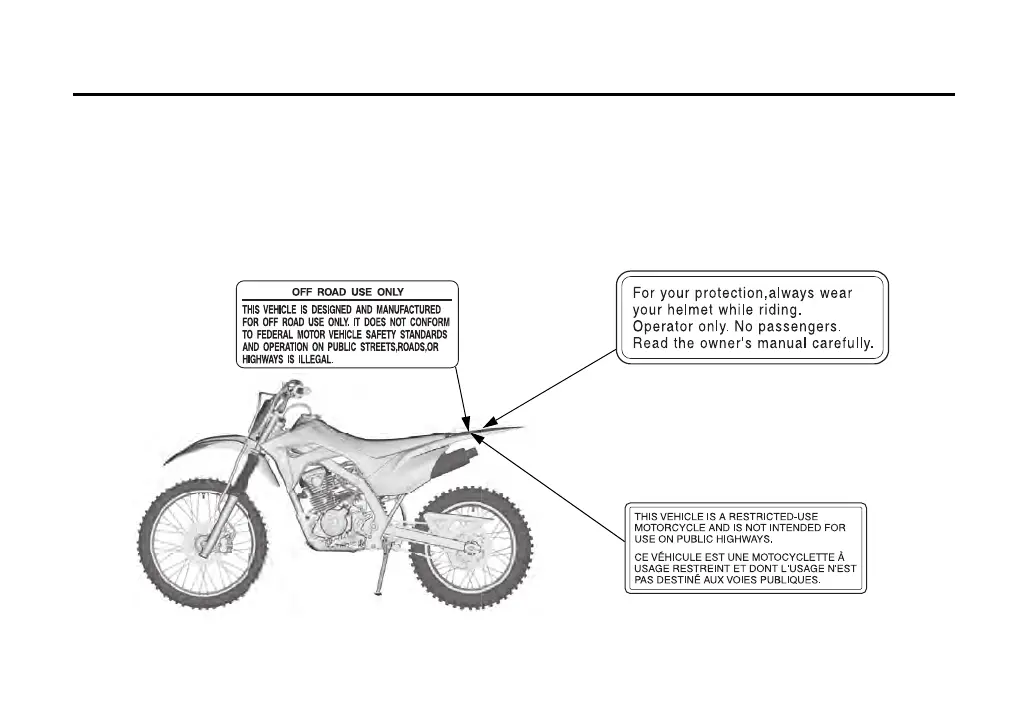

Safety Labels
This page shows the locations of safety labels on your motorcycle. Some labels warn you of
potential hazards that could cause serious injury. Others provide important safety information. Read
these labels carefully and don’t remove them.
If a label comes off or becomes hard to read, contact your dealer for a replacement.
(For USA)
(For Canada)
20YM CRF125FFB_31K28B60_FM.book 12 ページ ２０１９年３月１日 金曜日 午後１時４８分

Honda CRF125F 2020 Specifications

General

Displacement	124.9cc
Bore and Stroke	52.4mm x 57.9mm
Compression Ratio	9.0:1
Valve Train	SOHC; two-valve
Ignition	CDI
Transmission	Four-speed
Front Suspension	31mm telescopic fork; 5.9 inches travel
Rear Brake	Drum
Front Tire	70/100-17
Rear Tire	90/100-14
Wheelbase	49.4 inches
Seat Height	29.1 inches
Fuel Capacity	1.0 gallon
Color	Red
Engine Type	Single-cylinder four-stroke
Final Drive	Chain
Rear Suspension	Single shock
Front Brake	220mm hydraulic disc
Curb Weight	194 pounds
Induction	Carburetor
