Frame/ Body Panels
1-3

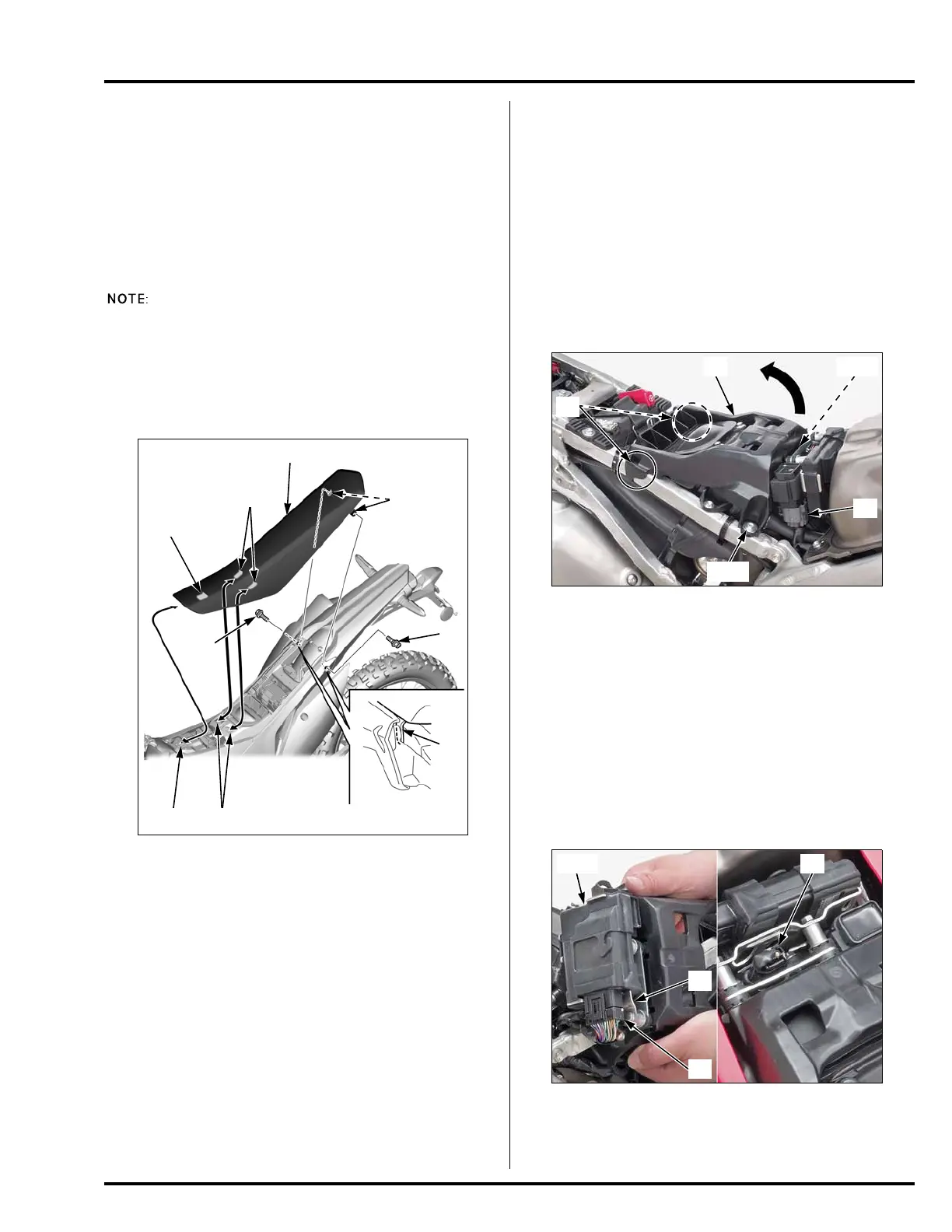

SEAT
REMOVAL/INSTALLATION
Remove the seat mounting bolts [1].
Remove the seat [2] by pulling it backward.
Installation is in the reverse order of removal.
• Align the seat hook [3] with the slot [4] on the fuel tank
and seat center prongs [5] with the seat support base
slots [6].
• Insert the seat rear stays [7] in the position shown.
Be careful not to scratch the side covers and rear
fender A with the seat rear stay.
TORQUE:
Seat mounting bolt:
26 N·m (2.7 kgf·m, 19 lbf·ft)
[5]
[1]
[1]
[2]
[3]
[4] [6]
[7]
[7]
SEAT SUPPORT BASE
HANGING/INSTALLATION
Remove the side covers 1-4.
Remove the bolts [1] and flange collars [2].
Disconnect the relay box 8P connector [3].
Pull up the front side of the seat support base [4].
Release the tabs [5] from the rear frame.
Remove the seat support base and hang it to the left side
of the rear frame.
Installation is in the reverse order of removal.
REMOVAL/INSTALLATION
Hang the seat support base 1-3.
Disconnect the ECM 33P connector [1].
Remove the ECM [2] from the ECM stay [3].
Remove the ECM suspension [4] from the ECM.
Disconnect the bank angle sensor 3P connector [5].
Remove the seat support base with the relay box and
bank angle sensor.
Installation is in the reverse order of removal.
