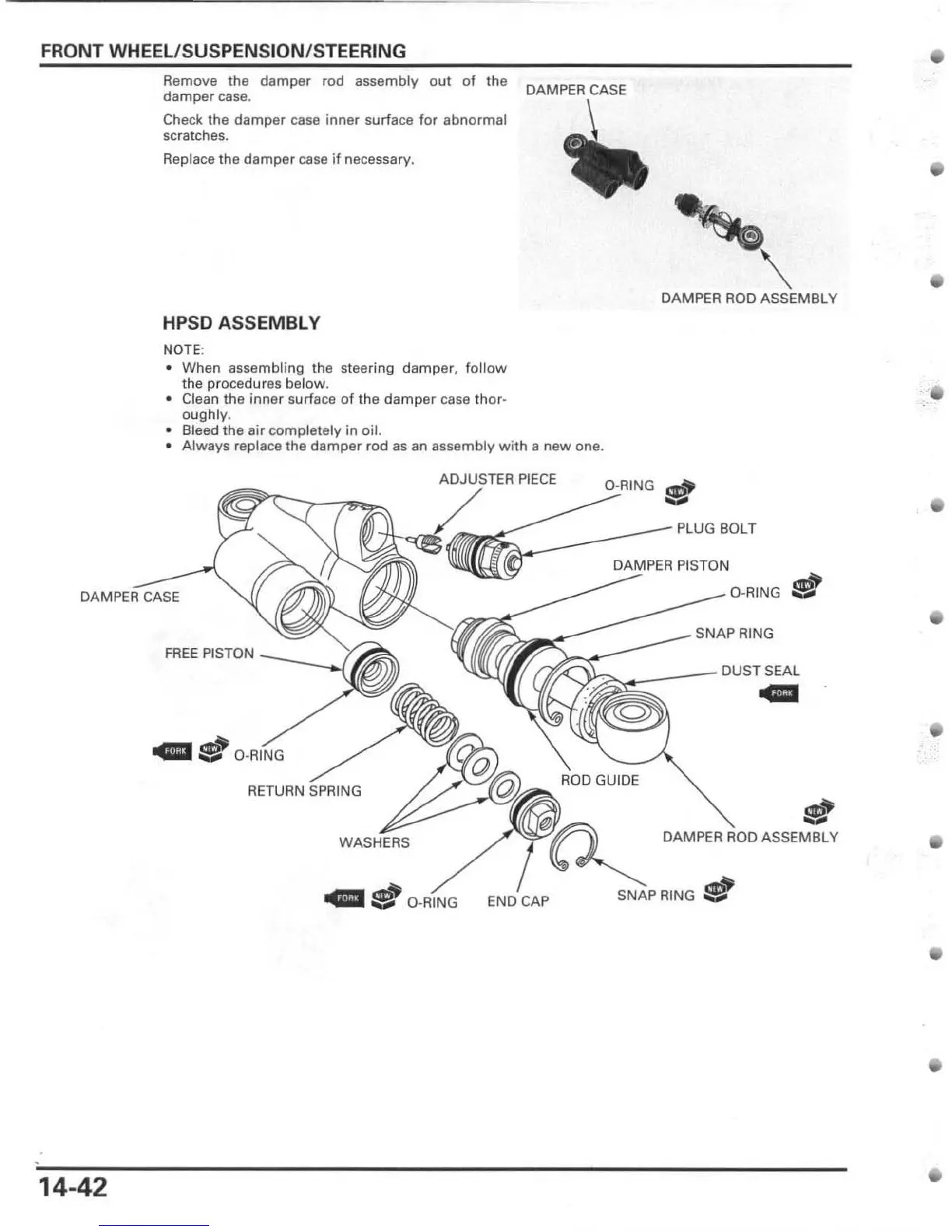

FRONT WHEEL/SUSPENSION/STEERING
Remove the damper rod assembly out of the
damper case.
Check the damper case inner surface for abnormal
scratches.
Replace the damper case if necessary.
HPSD ASSEMBLY
NOTE:
• When assembling the st ee ri ng damper, follow
the procedures be low.
• Clean
the inner s urf ace of the damp er case thor·
oughly.
• Bleed the air completely in oil.
DAMPER CASE
• Always replace the damper rod as an assembly with 8 new one.
A DJ USTER PIECE
,
\
DAMPER ROD ASSEM BLY
~~r- ____ -------- PlUGBO LT
SNAP RING
FREE PISTON -- _ _ I
.- __ ----DU STS EAl
..
.. fl O-RI NG
RETURN SP RING
eI
DAMPER ROD ASSEMBLY
.. fl O-RING
RING fI
14-42
