GENERAL DESCRIPTION
EC4000

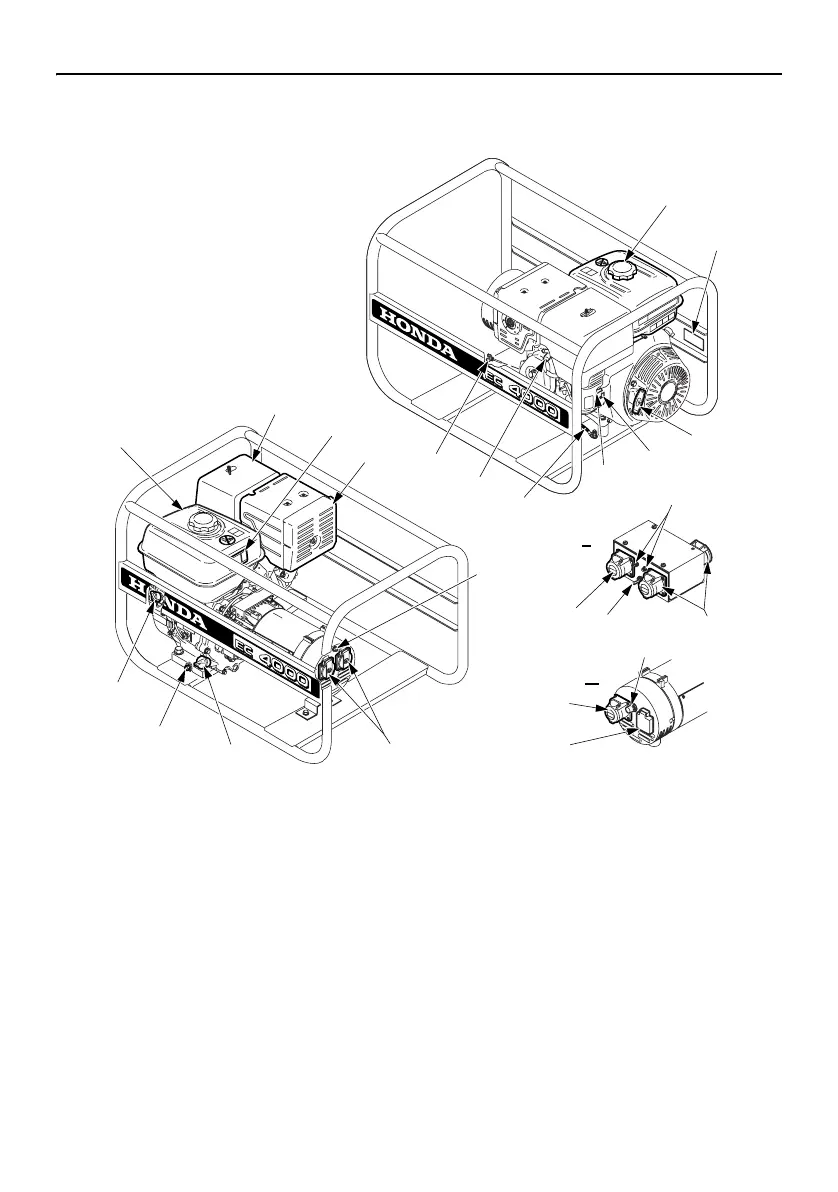

(The illustrations in this presentation are based on the EC4000 model, F, GV types)
[1] Fuel tank cap [11] Muffler
[2] Fuel tank [12] Thermal circuit breaker
[3] Recoil starter grip [13] 230V/16A receptacles (black) F type,
[4] Fuel valve (blue) GV and IT types
[5] Choke lever [13’] 230V/16A receptacles (blue) B, IT types
[6] Earth braid [13"] 115V/16A receptacles (yellow) B type
[7] Spark plug cap [14] Engine oil drain plug
[8] Oil filler cap & dipstick [15] Engine switch
[8’] Oil filler cap (choice of [8] or [8’] as required) [16] Voltage selector switch115/230V (B type)
[9] Air cleaner [17] “Serial number” Identification plate
[10] Label with list of specifications
[2]
[9]
[3]
[4]
[5]
[6]
[7]
[8-8']
[13']
[13]
[13']
[13"]
[12]
[12]
[16]
[11]
[10]
[1]
[17]
[13]
[15]
[14]
[8-8']
[12]
IT
B
