9

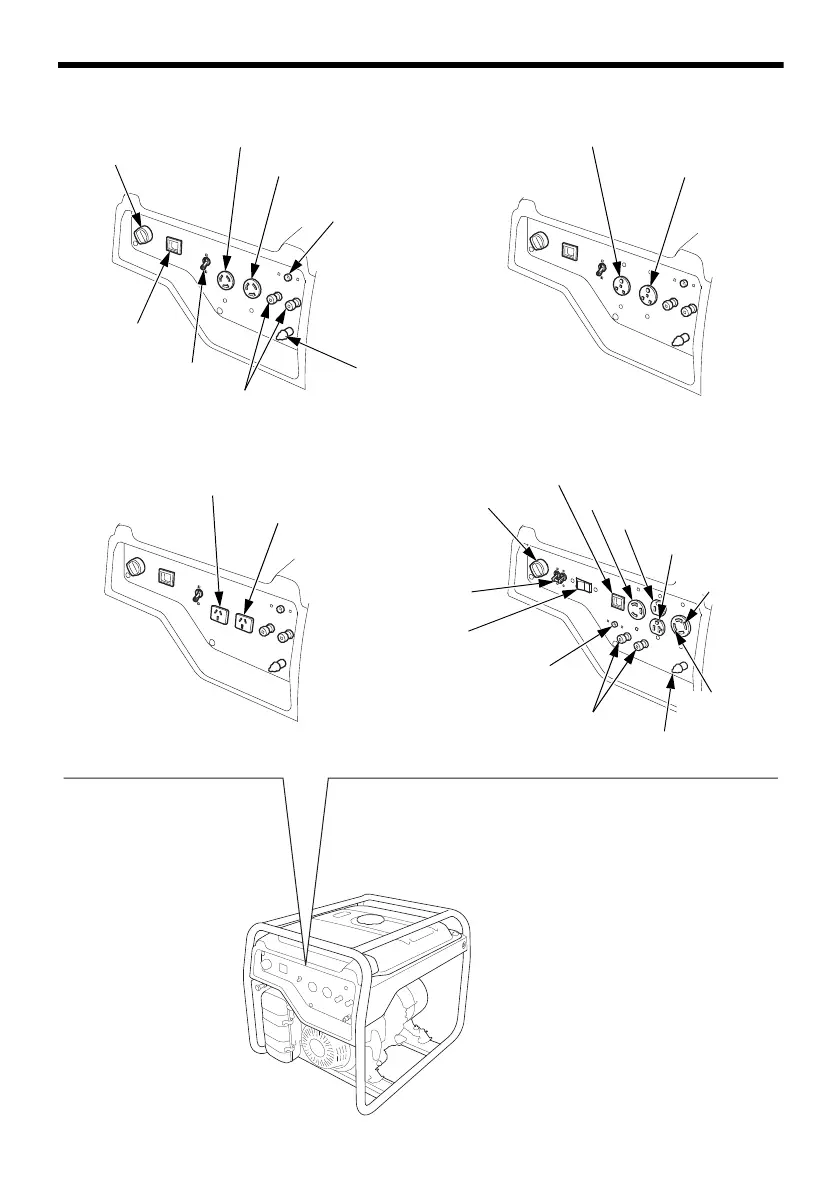

COMPONENT IDENTIFICATION
RECEPTACLE
No.4
S1H, RH, REH, KH types
MH type
RAH type
LD1H type
ENGINE SWITCH
RECEPTACLE No.1
RECEPTACLE No.2
DC CIRCUIT
PROTECTOR
DC TERMINALS
GROUND TERMINAL
AC CIRCUIT BREAKER
VOLT METER
RECEPTACLE No.1
RECEPTACLE No.2
RECEPTACLE No.1
RECEPTACLE No.2
RECEPTACLE No.1
GROUND TERMINAL
VOLT METER
RECEPTACLE No.3
RECEPTACLE
No.5
DC TERMINALS
VOLTAGE
SELECTOR SWITCH
ENGINE SWITCH
RECEPTACLE No.2
DC CIRCUIT
PROTECTOR
AC CIRCUIT
BREAKER
