ASSEMBLY

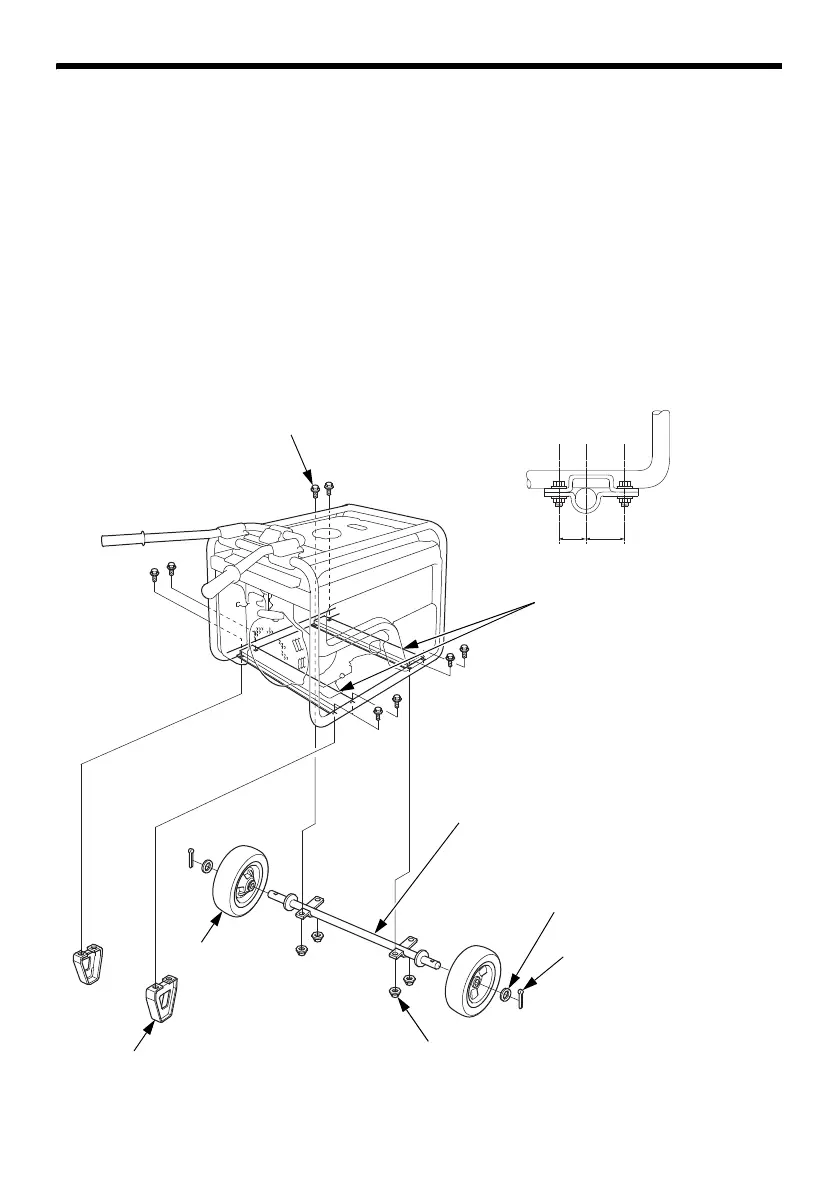

Wheel Kit Installation

1. Install the two stands on the under frame using four 8×16 mm flange bolts.

2. Install the two wheels on the axle shaft using the plain washers and split pins.

After installing the split pins, bend the pins to ensure that the wheels are

secured to the axle.

3. Install the axle assembly on the generator using four 8×16 mm flange bolts

and 8 mm flange nuts.

Torque: 19.5 lbf·ft (26.5 N·m, 2.7 kgf·m)

8×16 mm FLANGE BOLT (8)

SHORTER

UNDER FRAME

GENERATOR

SIDE

AXLE SHAFT

20 mm

PLAIN WASHER (2)

4.0×28 mm

SPLIT PIN (2)

8 mm FLANGE NUT (4)

STAND (2)

WHEEL (2)
