Honda EM5000SXK3AN User Manual

CONTROLS & FEATURES
32
DC Terminals
The DC terminals may ONLY be used for charging 12-volt automotive type
batteries.
The terminals are colored red to identify the positive (+) terminal and black to
identify the negative (–) terminal. The battery must be connected to the
generator DC terminals with the proper polarity (battery positive to generator
red terminal and battery negative to the generator black terminal).
DC Circuit Protector
The DC circuit protector automatically shuts off the DC battery charging circuit
when the DC charging circuit is overloaded, when there is a problem with the
battery, or when the connections between the battery and the generator are
improper. However, the DC circuit protector does not prevent overcharging.

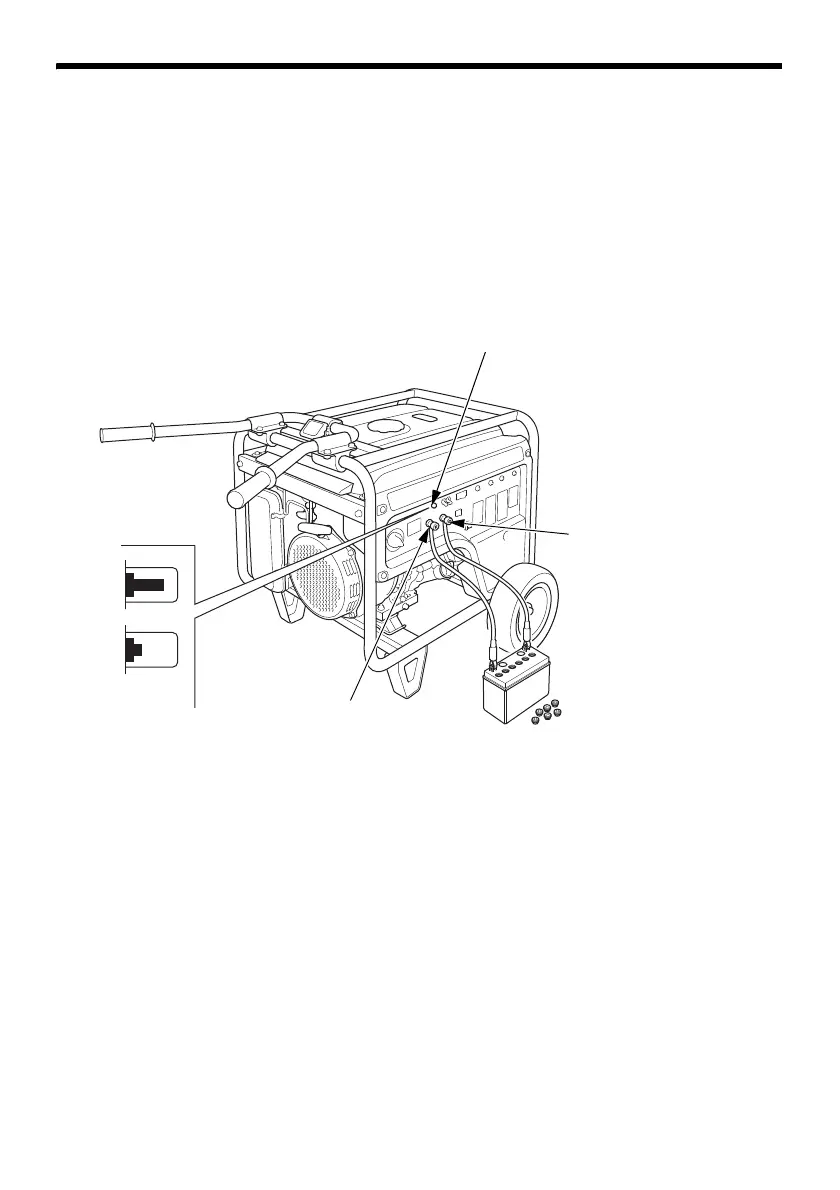

DC CIRCUIT PROTECTOR
POSITIVE DC TERMINAL
(RED)
NEGATIVE DC TERMINAL
(BLACK)
OFF
ON

Honda EM5000SXK3AN Specifications

General

Type	Portable Generator
Displacement	389 cc
Residential Warranty	3 years
Commercial Warranty	3 years
Engine Type	Honda GX390
Starting System	Recoil
AC Output	120/240V
DC Output	12V
Receptacles	1 x 120V 30A Twist Lock, 1 x 120V 20A Duplex
Rated Output	5000 watts
Max Output	5500 watts
Run Time at 50% Load	11.2 hr
