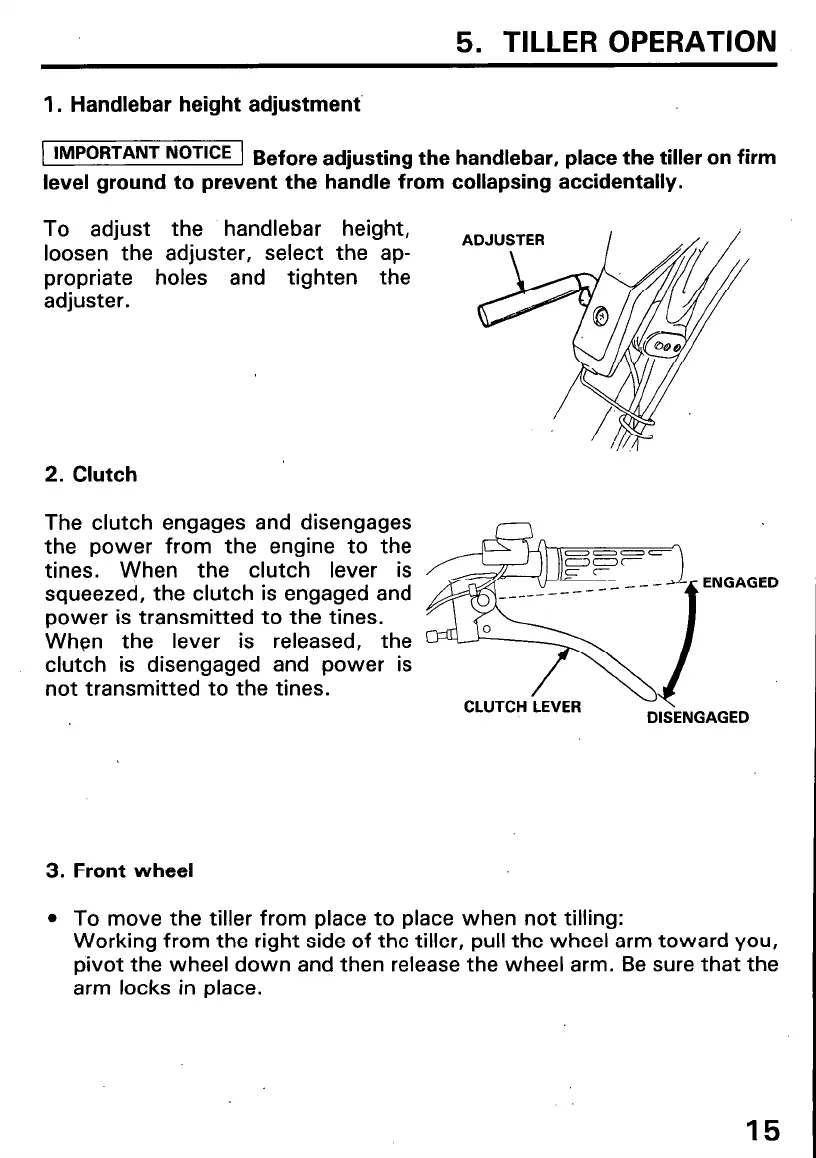

5. TILLER OPERATION
1. Handlebar height adjustment
1 IMPORTANT NoT’CE 1 Before adjusting the handlebar, place the tiller on firm
level ground to prevent the handle from collapsing accidentally.
To adjust the handlebar height,
loosen the adjuster, select the ap-
propriate holes and tighten the
adjuster.
2. Clutch
The clutch engages and disengages
the power from the engine to the
tines. When the clutch lever is
squeezed, the clutch is engaged and
power is transmitted to the tines.
When the lever is released, the
clutch is disengaged and power is
not transmitted to the tines.
3. Front wheel
l
To move the tiller from place to place when not tilling:
Working from the right side of the tiller, pull the wheel arm toward you,
pivot the wheel down and then release the wheel arm. Be sure that the
arm locks in place.
15
