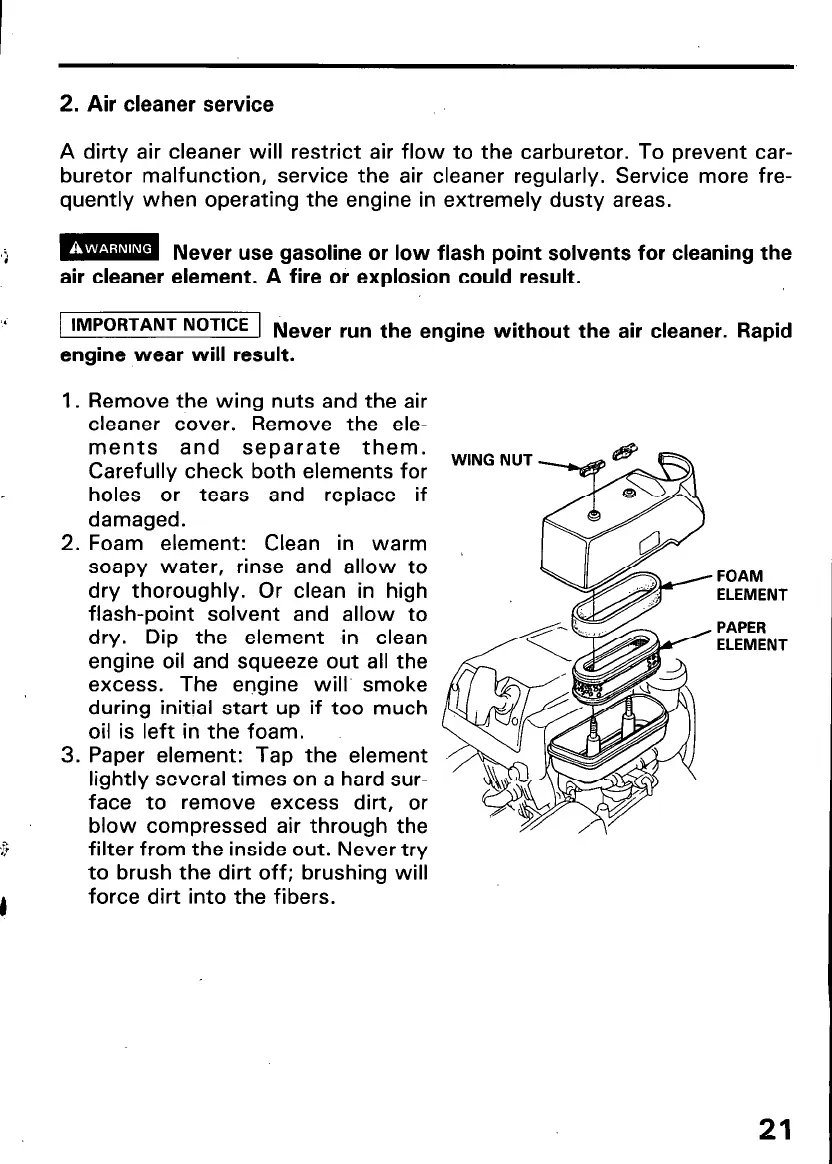

2. Air cleaner service
A dirty air cleaner will restrict air flow to the carburetor. To prevent car-
buretor malfunction, service the air cleaner regularly. Service more fre-
quently when operating the engine in extremely dusty areas.
,) m
Never use gasoline or low flash point solvents for cleaning the
air cleaner element. A fire or explosion could result.
2.
1 IMPORTANT NOTICE 1 N
ever run the engine without the air cleaner. Rapid
engine wear will result.
1.
_
2.
3.
.?
J
1
Remove the wing nuts and the air
cleaner cover. Remove the ele-
ments and separate them.
Carefully check both elements for
holes or tears and replace if
damaged.
Foam element: Clean in warm
soapy water, rinse and allow to
dry thoroughly. Or clean in high
flash-point solvent and allow to
dry. Dip the element in clean
engine oil and squeeze out all the
excess. The engine will’ smoke
during initial start-up if too much
oil is left in the foam.
Paper element: Tap the element
lightly several times on a hard sur-
face to remove excess dirt, or
blow compressed air through the
filter from the inside out. Never try
to brush the dirt off; brushing will
force dirt into the fibers.
FOAM
ELEMENT
PAPER
ELEMENT
21
