3.

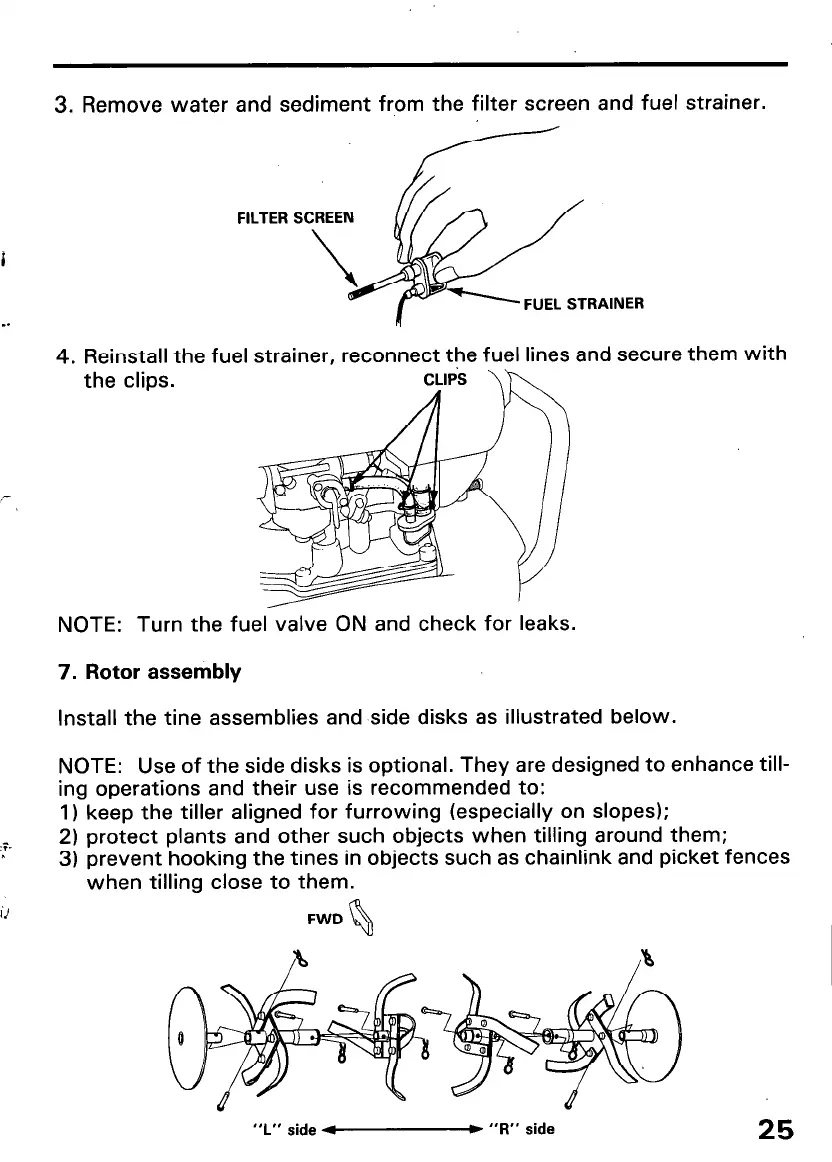

Remove water and sediment from the filter screen and fuel strainer.
/
4. Reinstall the fuel strainer, reconnect the fuel lines and secure them with
the clips.
NOTE: Turn the fuel valve ON and check for leaks.
7. Rotor assembly
Install the tine assemblies and side disks as illustrated below.
NOTE: Use of the side disks is optional. They are designed to enhance till-
ing operations and their use is recommended to:
1) keep the tiller aligned for furrowing (especially on slopes);
2) protect plants and other such objects when tilling around them;
3) prevent hooking the tines in objects such as chainlink and picket fences
when tilling close to them.
FWD
“L” side 4
“R” side
25
