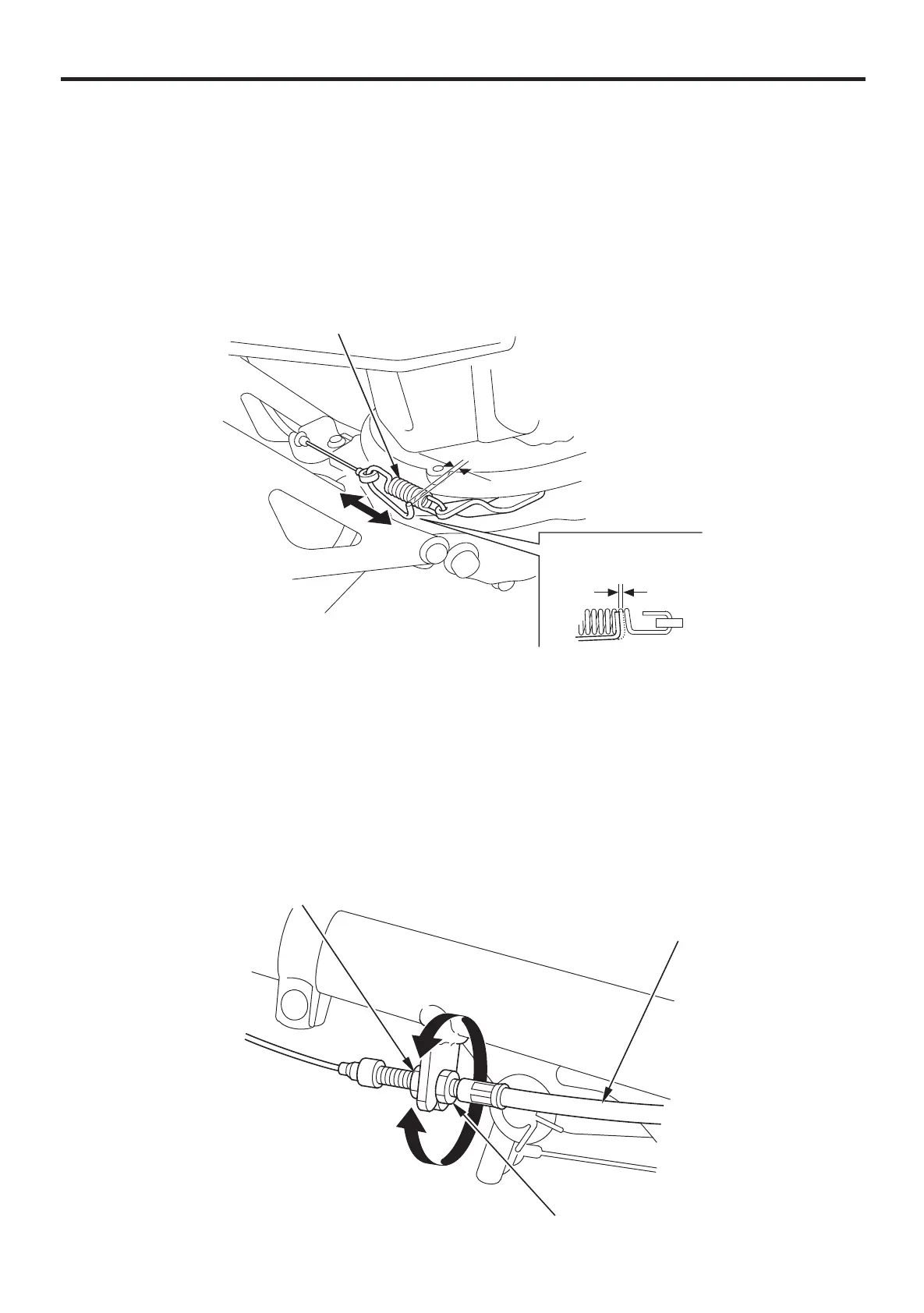

Main clutch cable adjustment
ADJUST ING NUT
CLUTCH SPRING
2.5 3.5 mm
(0.10 0.14 in)
MAIN CLUTCH CABLE
LOCK NUT
DECREASE
EXTENSION VALUE
INCREASE
EXTENSION VALUE
Pull the main clutch lever to the ENGAGED position, and check the
extension value of the clutch spring at the end of the longer spring
hook as shown.
Extension value should be:
If adjustment is necessary, set the main clutch lever to the
ENGAGED position.
Loosen the lock nut and turn the adjusting nut to obtain the correct
extension value of the clutch spring.
After adjustment, tighten the lock nut securely.
2.5 3.5 mm (0.10 0.14 in)
1.
2.
3.
4.
