Honda FF500 - Differential Lock Cable Adjustment

−
−
−−
45
Differential lock cable adjustment
FREE PLAY
15mm
(0.04 0.20 in)
DIFFERENTIAL
LOCK LEVER
DIFFERENTIAL LOCK CABLE
ADJUST ING NUT
LOCK NUT
D
D
E
E
C
C
R
R
E
E
A
A
S
S
E
E
F
F
R
R
E
E
E
E
P
P
L
L
A
A
Y
Y
INCREASE FRE
E PLAY

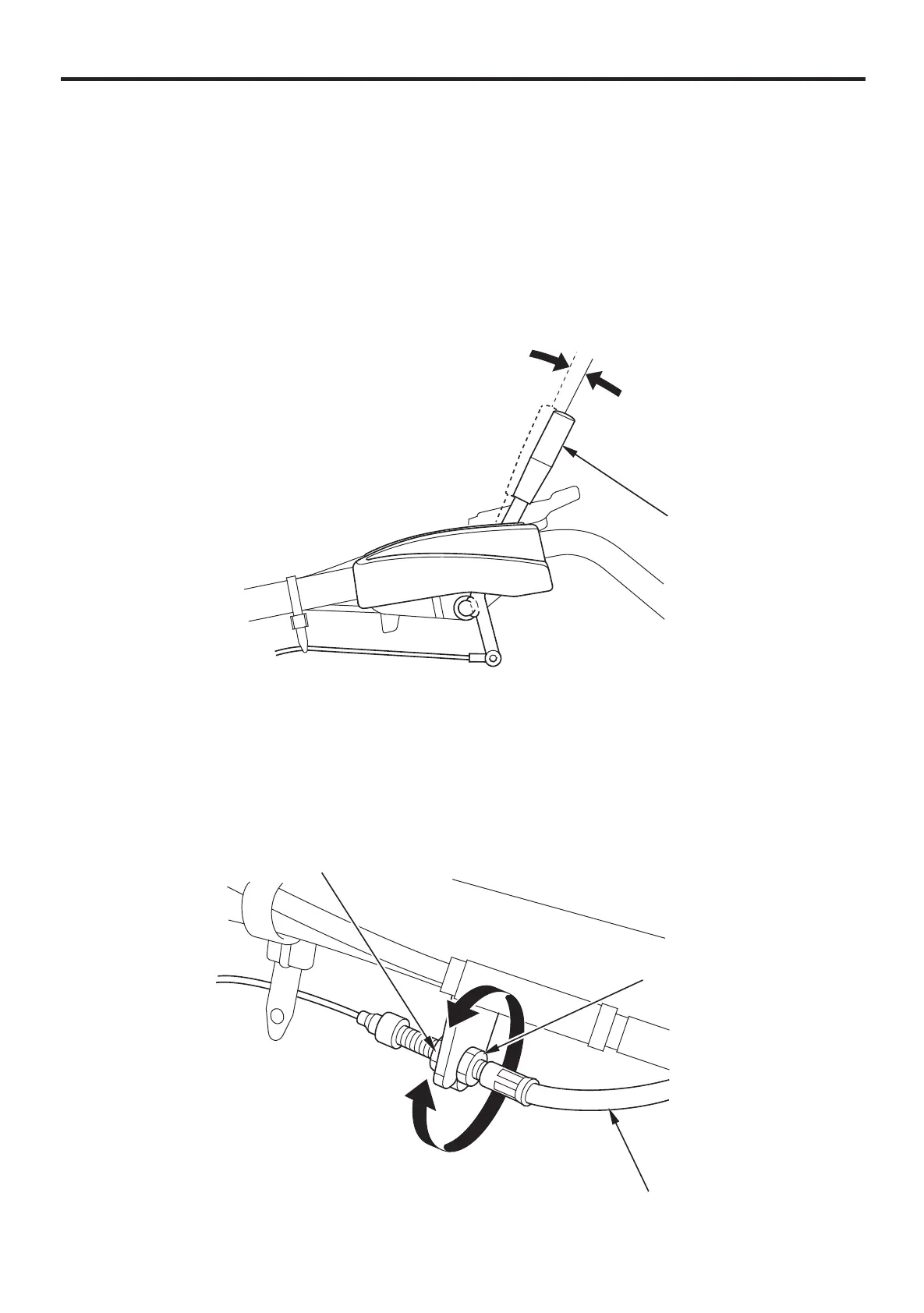

Set the differential lock lever in the UNLOCK position.
Check the differential lock lever free play at the end of the lever.
Differential lock lever free play should be:
Adjustment is necessary, loosen the lock nut and turn the adjusting
nut.
After adjustment, tighten the lock nut securely.
1.
3.
4.
2.
1 5 mm (0.04 0.20 in)
