50

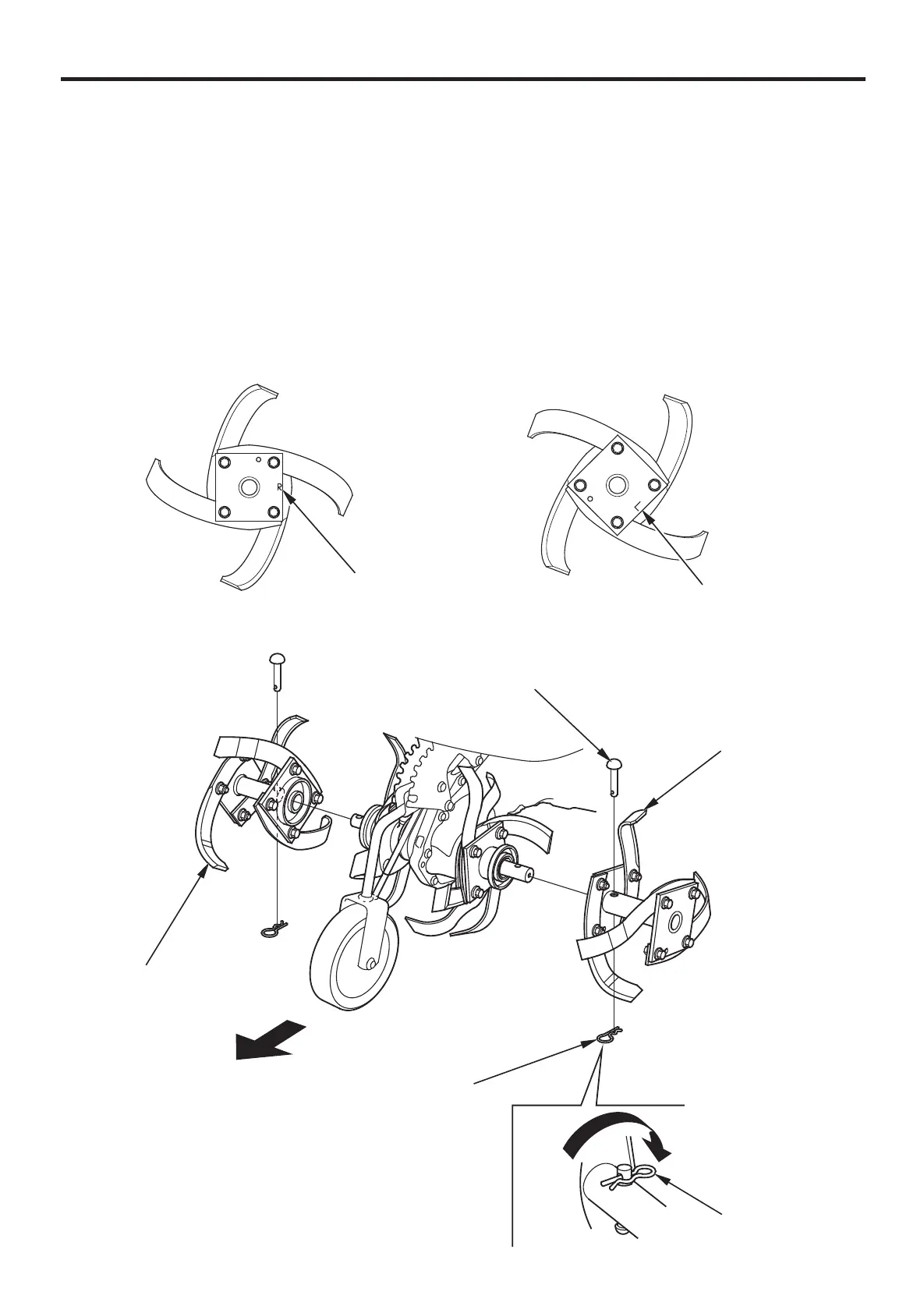

‘‘R’’ MARK
‘‘L’’ MARK
FRONT
RIGHT OUTER ROTARY
LEFT OUTER ROTARY
ROTATION
DIRECTION
RETA INING PIN
RETA INING PIN
RIGHT OUTER ROTARY
(Viewed from right side)
LEFT OUTER ROTARY
(Viewed from left side)
ROTARY PIN
Install the outer rotary with the ‘‘R’’ (right rotary) mark or ‘‘L’’ (left
rotary) mark facing outside as shown.
Align the pin holes of the outer rotary and rotary shaft, and install
the rotary pin.
Install the retaining pin in direction shown.
4.
5.
6.
