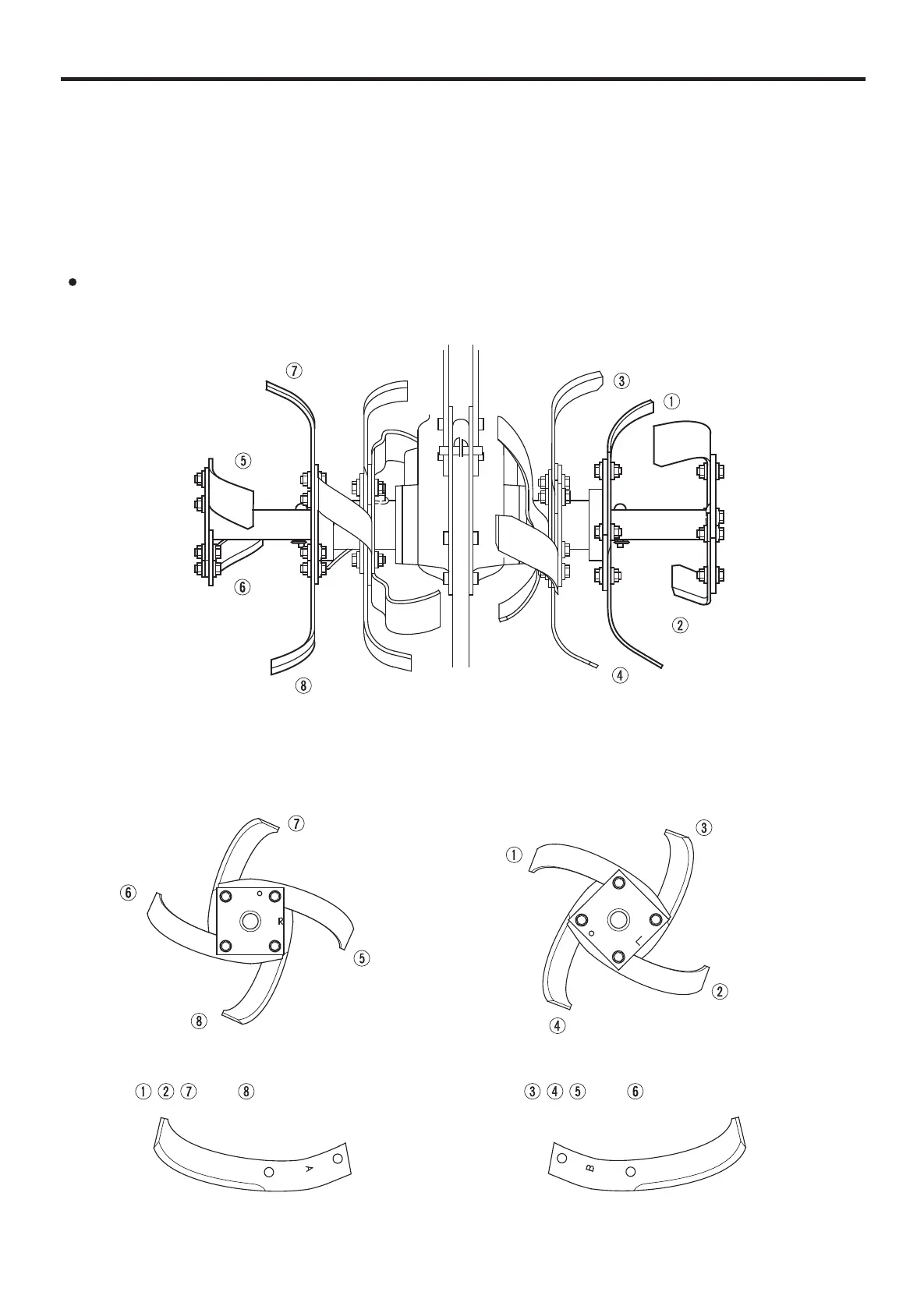

Tine installation:
Outer rotary tines:
RIGHT OUTER ROTARY
(Viewed from right side)
LEFT OUTER ROTARY
(Viewed from left side)
, , and : TINE A , , and : TINE B
Install the tines properly.
Incorrect arrangement of the tines or installing the tines in the wrong
direction will cause vibration and hinder proper tilling.
