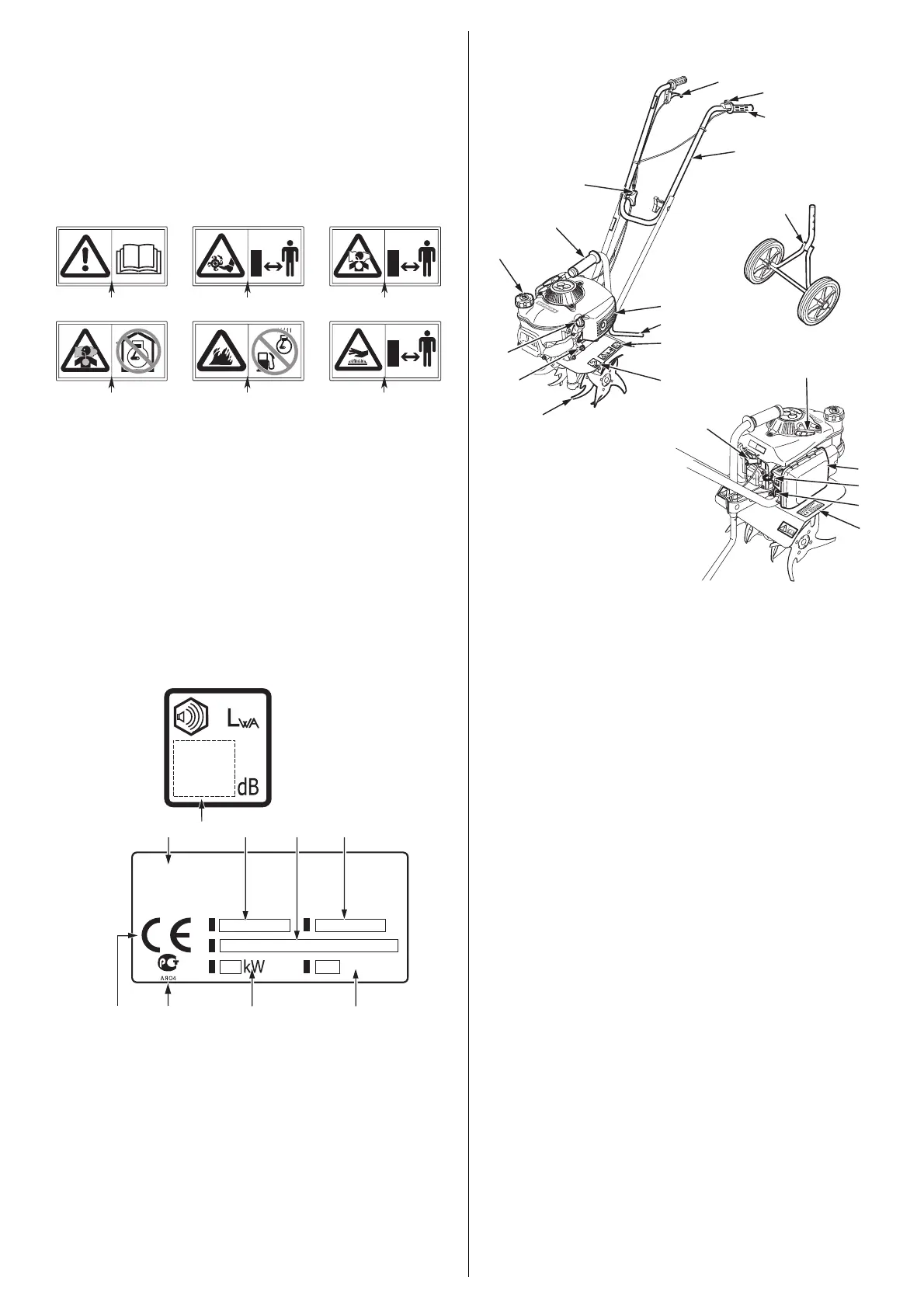

SAFETY STICKERS
Your motor hoe must be used with care. For this reason, adhesive
labels in the form of pictograms have been placed on it to remind
you of the main operating precautions. Their meanings are
specified below.
These stickers are considered to be an integral part of your motor
hoe. If any of them comes off or becomes difficult to read, please
contact your dealer to replace it.
We also recommend that you should carefully read all the safety
instructions given at the beginning of this manual (see page 2).
IDENTIFICATION OF MACHINE
GENERAL DESCRIPTION
IDENTIFICATION OF COMPONENTS
[1] WARNING: Read the owner's manual before using the motor hoe.
[2] WARNING: Rotating implements. Keep your hands and feet well clear.
[3] WARNING: Exhaust fumes contain carbon monoxide which is extremely
toxic.
Do not run the engine in an enclosed space where carbon monoxide fumes
may accumulate. Make sure there is adequate ventilation.
[4] The engine emits toxic carbon monoxide. Do not run in an enclosed area.
[5] Petrol is highly flammable. Stop the engine before refueling.
[6] Let the engine cool before storing the generator indoors.
[7] Acoustic power level according to directives 2000/14/EC, 2005/88/EC
[8] Conformity mark according to directives 98/37/EC, 2000/14/EC,
2004/108/EC, 2005/88/EC, 2006/42/EC
[9] Russian conformity mark
[10] Rated power in kW
[11] Weight in kg
[12] Year of manufacture
[13] Serial number
[14] Model - Type
[15] Name and address of manufacturer
[1]
[2] [3]
[4]
[5] [6]
[12][13]
[15]
[14]
[10] [11]
[A]
[B]
kg
Honda France Manufacturing S.A.S.
Rue des Châtaigniers - Pôle 45
45140 Ormes - France
[9]
[8]
[7]
CONTROLS FUNCTIONS
[16] Throttle/clutch lever . . . . . . . . Adjusts the engine speed and controls
the rotation of the tines.
[17] Handlebar clamping
screw . . . . . . . . . . . . . . . . . . . Used to fold the handlebar
[18] Carrying handle . . . . . . . . . . . Used to carry the machine in a balanced
position
[19] Recoil starter handle. . . . . . . . Used to start the engine
[20] Fuel tank cap
[21] Oil filler cap/dipstick . . . . . . . . Used to top up with oil and check the oil
level
[22] Oil drain plug . . . . . . . . . . . . . Can be removed to drain the engine oil
[23] Tines
[24] Depth bar . . . . . . . . . . . . . . . . Adjusts the machine's working depth
[25] Exhaust silencer
[26] Handlebar
[27] Handgrip
[28] Circuit breaker . . . . . . . . . . . . Shuts off the engine
[29] Fuel cock . . . . . . . . . . . . . . . . Opens and closes the fuel intake
[30] Choke . . . . . . . . . . . . . . . . . . . Used to start the engine when cold
[31] Air filter . . . . . . . . . . . . . . . . . . Protects the engine from ambient dust
[32] Spark plug
[33] Transport wheels . . . . . . . . . . Used to transport the machine (with
engine switched off)
[34] Oil level sticker
[16]
[23]
[34]
[24]
[A]
[25]
[26]
[28]
[27]
[17]
[18]
[20]
[21]
[22]
[29]
[31]
[30]
[32]
[B]
[19]
[33]
