HELPFUL TIPS & SUGGESTIONS

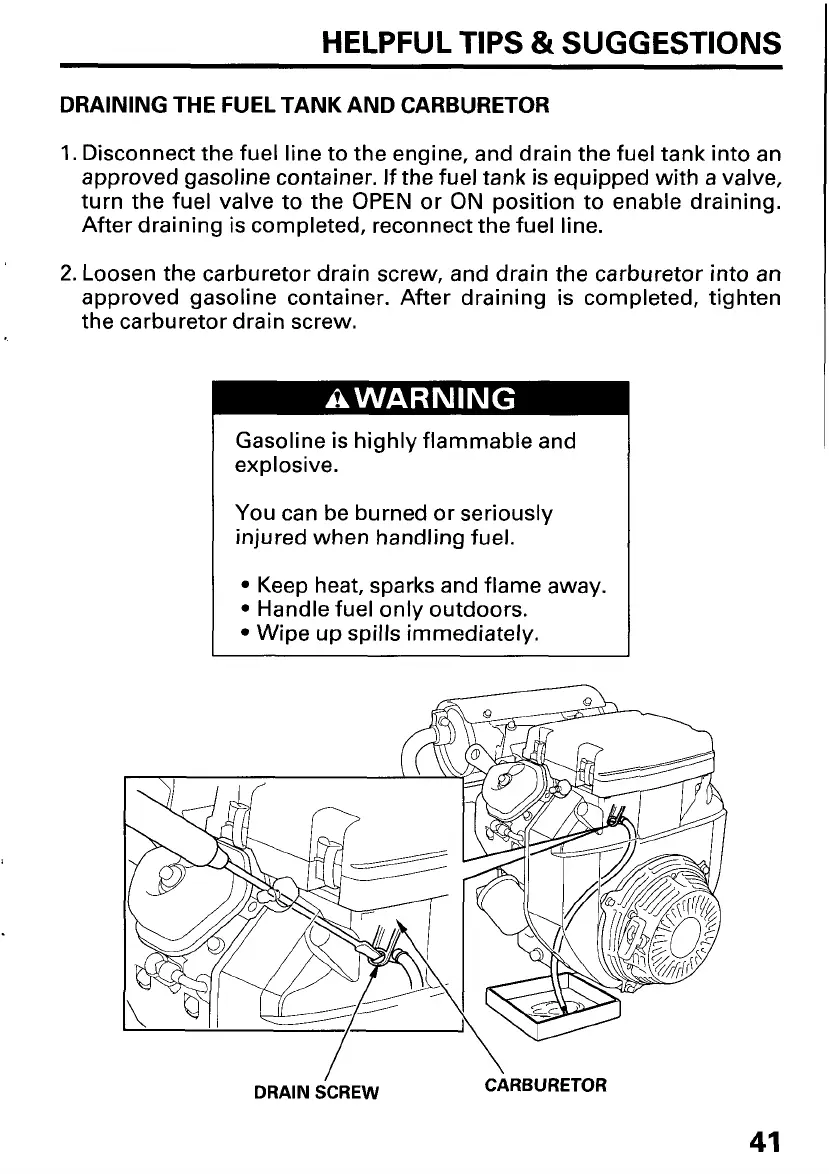

DRAINING THE FUEL TANK AND CARBURETOR
1. Disconnect the fuel line to the engine, and drain the fuel tank into an
approved gasoline container. If the fuel tank is equipped with
a valve,
turn the fuel valve to the
OPEN or ON position to enable draining.
After draining
is completed, reconnect the fuel line.
2. Loosen the carburetor drain screw, and drain the carburetor into an
approved gasoline container. After draining
is completed, tighten
the carburetor drain screw.
Gasoline is highly flammable and
explosive.
You can be burned or seriously
injured when handling fuel.
Keep heat, sparks and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
/
\
DRAIN SCREW CARBURETOR
41

Honda GX610 Specifications

General

PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Ignition System	Transistorized magneto
Engine Type	Air-cooled 4-stroke OHV
Displacement	614 cm³
Starting System	Electric / Recoil
Fuel Tank Capacity	6.5 L (1.7 US gal)
