Honda GXV340 - Spark Plug Gap Measurement and Installation

−−
−
−
22
0.70 0.80 mm
(0.028 0.031 in)

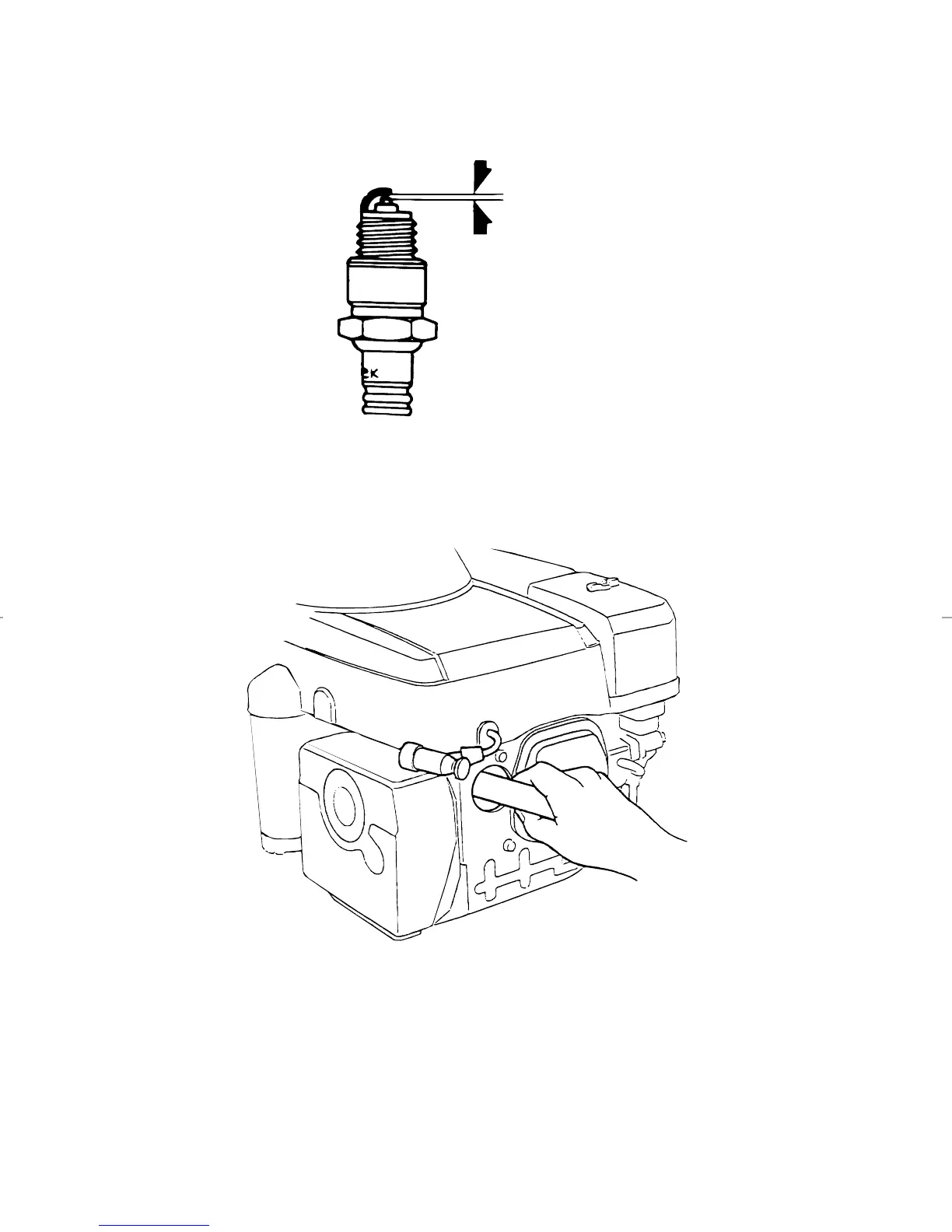

Measure the plug gap with a feeler gauge. Correct as necessary
by bending the side electrode.
The gap should be:
0.70 0.80 mm (0.028 0.031 in)
Check that the spark plug washer is in good condition and
thread the spark plug in by hand to prevent cross-threading.
3.
4.
04/01/30 15:08:29 32Z1E600_022
