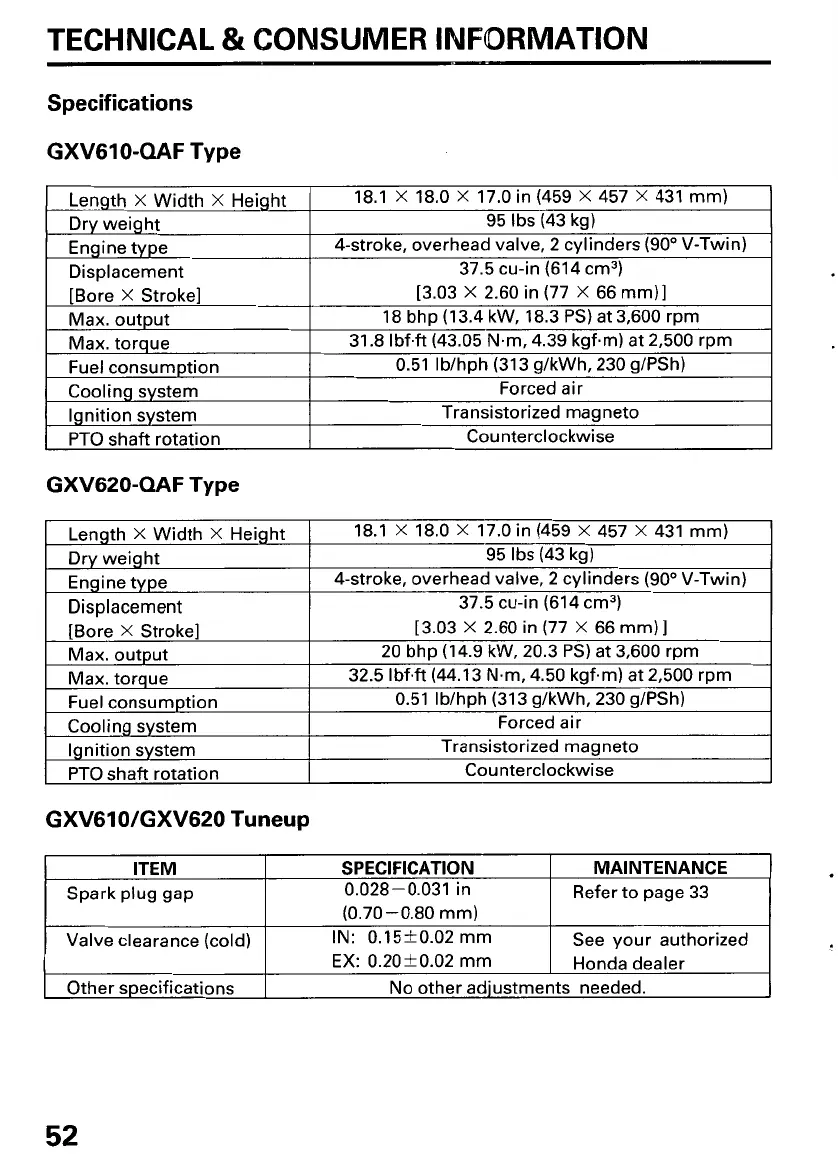

TECHNICAL & CONSUMER INFORMATION
Specifications
GXV610-QAF Type
Length X Width X Height
Counterclockwise
PTO shaft rotation
Transistorized magneto
Ignition system
Forced air
Cooling system
0.51 Ib/hph (313 g/kWh, 230 g/PSh)
Fuel consumption
31.8 Ibf.ft (43.05 N.m, 4.39 kgf.m) at 2,500 rpm
Max. torque
18 bhp (13.4 kW, 18.3 PS) at 3,600 rpm
Max. output
[3.03
X 2.60 in (77 X 66 mm)]
[Bore
X Stroke]
37.5 cu-in (614 cm3)
Displacement
4-stroke, overhead valve, 2 cylinders (90' V-Twin)
Engine type
95 Ibs (43 kg)
Dry weight
18.1
X 18.0 X 17.0 in (459 X 457 X 431 mm)
GXV620-QAF Type
Length X Width X Height
Dry weight
18.1
X 18.0 X 17.0 in (459 X 457 X 431 mm)
37.5 cu-in (614 cm3)
Displacement
4-stroke, overhead valve,
2 cylinders (90'V-Twin)
Engine type
95 Ibs (43 kg)
[Bore
X Stroke]
Counterclockwise
PTO shaft rotation
Transistorized magneto
Ignition system
Forced air
Cooling system
0.51 Ib/hph (313 g/kWh, 230 g/PSh)
Fuel consumption
32.5 Ibf.ft (44.13 N.m, 4.50 kgf.m) at 2,500 rpm
Max. torque
20 bhp (14.9 kW, 20.3 PS) at 3,600 rpm
Max. output
[3.03
X 2.60 in (77 X 66 mm)]
GXV61O/GXV620 Tuneup
ITEM MAINTENANCE SPECIFICATION
Spark plug gap
No other adjustments needed.
Other specifications
See your authorized
IN: 0.15+0.02 mm
Valve clearance (cold)
(0.70-0.80
mm)
Refer to page 33
0.028-0.031 in
EX: 0.20k0.02 mm
Honda dealer
52

Honda GXV670 Specifications

General

Cooling System	Air-cooled
Engine Type	4-stroke, OHV
Net Power Output	22.0 HP
Ignition System	Transistorized
Starting System	Electric
Lubrication System	Forced Lubrication
Fuel Type	Gasoline
Fuel System	Carburetor
Cylinder	V-Twin
