2. IDENTIFICATION OF THE MACHINE AND PARTS
IDENTIFICATION OF THE MACHINE

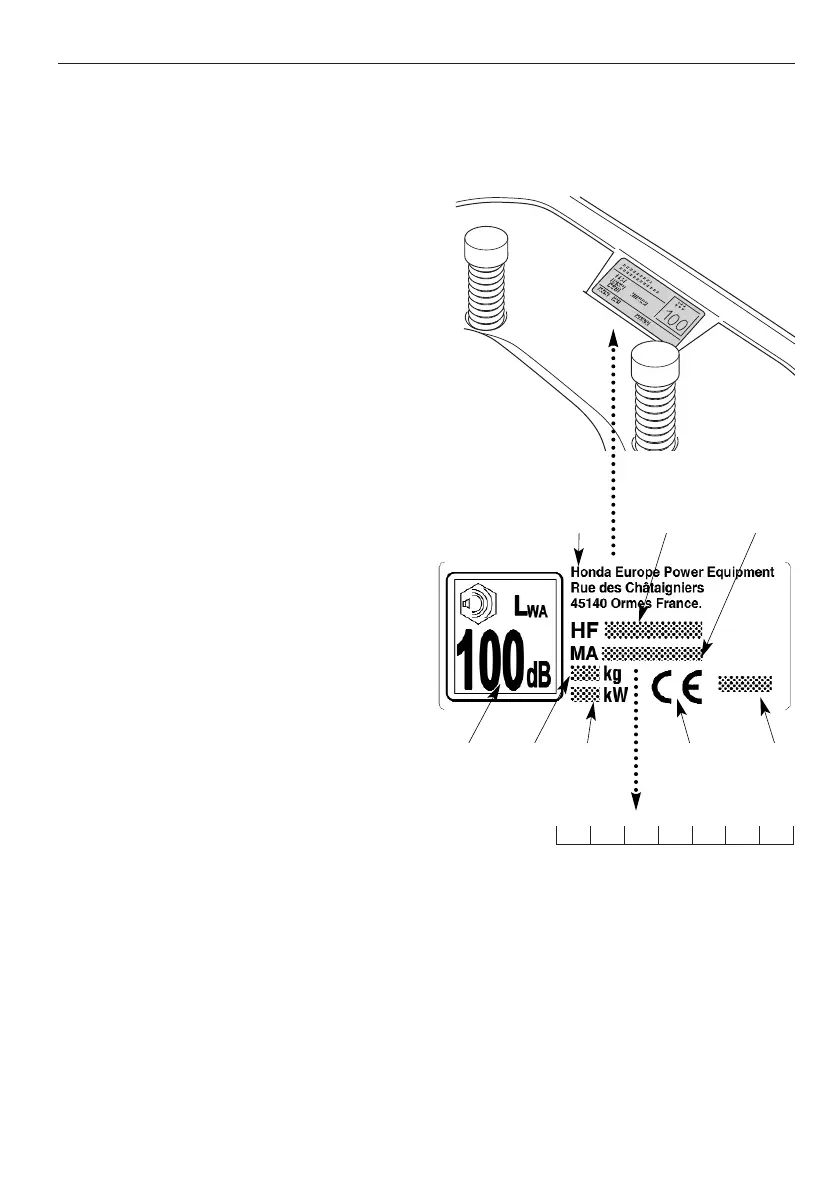

The plate located under the driver’s seat
has the essential data and serial number
of each machine (5).
This number must be quoted when you
require technical assistance or spare
parts.
1. Acoustic power level according to
directive 2000/14/CE
2. Conformity mark according to direc-
tive 98/37/EEC
3. Year of manufacture
4. Type of machine
5. Serial number
6. Weight in kgs
7. Name and address of Manufacturer
8. Engine nominal power (at 2800 rpm).
IDENTIFICATION OF MAIN COMPONENTS
Various main components can be seen on the machine, and these have the fol-
lowing functions:
11. Cutting deck: this is the guard enclosing the rotating blade.
12. Blade: this is what cuts the grass.The wings at the ends help convey the cut
grass towards the collector channel.
EN 7IDENTIFICATION OF THE MACHINE AND PARTS
Note your machine serial number here
✍
1 6 8 2 3
7 4 5
