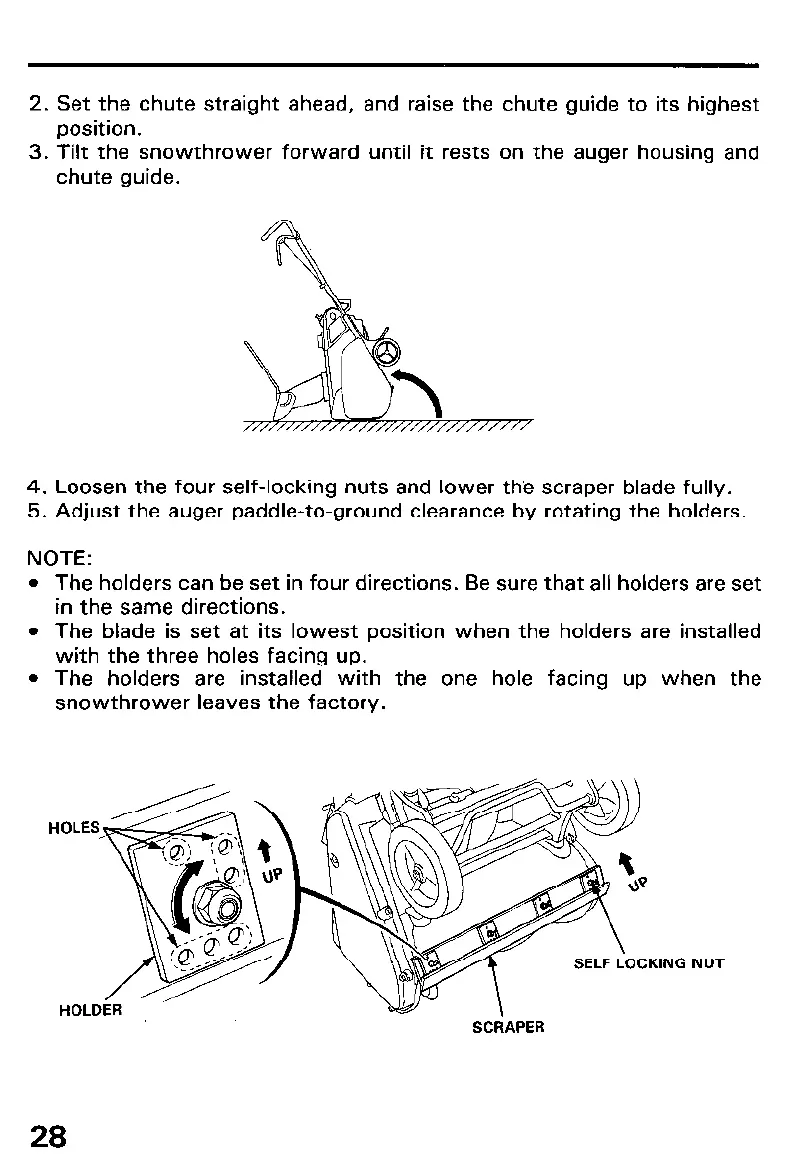

2. Set the chute straight ahead, and raise the chute guide to its highest
position.
3. Tilt the snowthrower forward until it rests on the auger housing and
chute guide.
4. Loosen the four self-locking nuts and lower the scraper blade fully.
5. Adjust the auger paddle-to-ground clearance by rotating the holders.
NOTE:
l The holders can be set in four directions. Be sure that all holders are set
in the same directions.
l The blade is set at its lowest position when the holders are installed
with the three holes facing up.
l The holders are installed with the one hole facing up when the
snowthrower leaves the factory.
HOLE
HOLDER
SCRAPER
28
