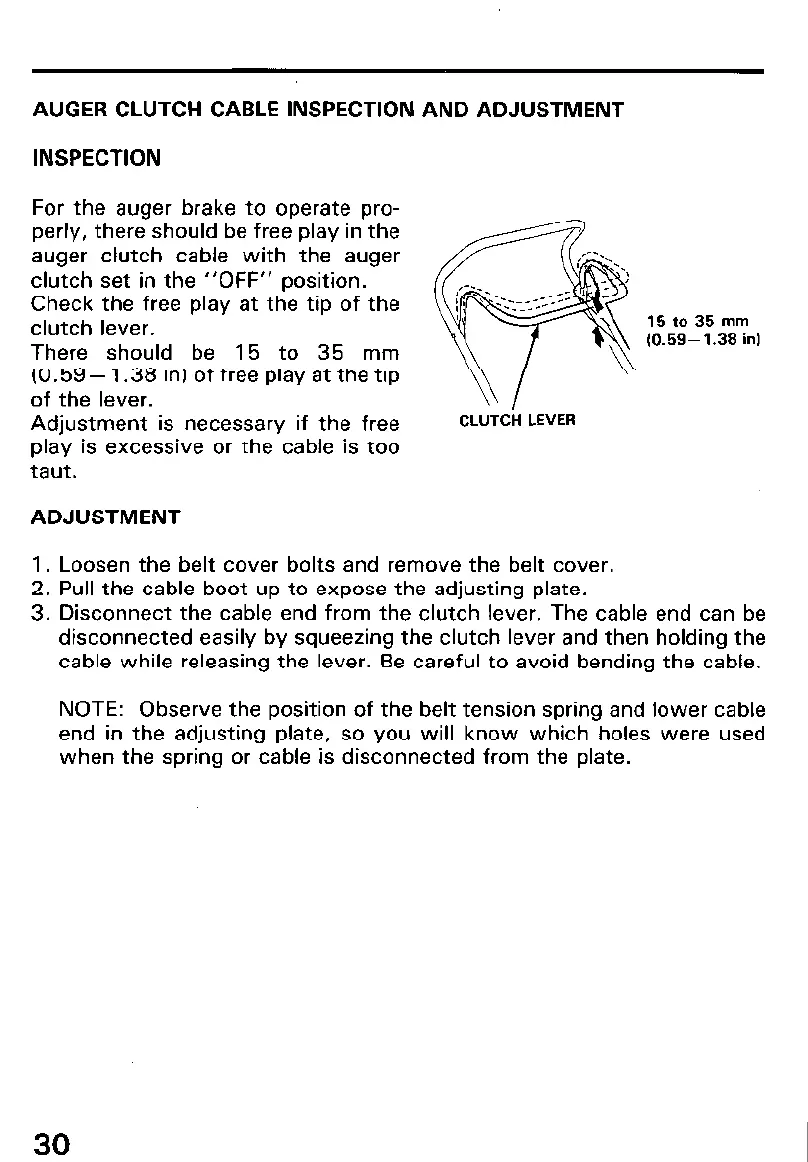

AUGER CLUTCH CABLE INSPECTION AND ADJUSTMENT
INSPECTION
For the auger brake to operate pro-
perly, there should be free play in the
auger clutch cable with the auger
clutch set in the “OFF” position.
Check the free play at the tip of the
clutch lever.
There should be 15 to 35 mm
(0.59- 1.38 in) of free play at the tip
of the lever.
Adjustment is necessary if the free
play is excessive or the cable is too
taut.
ADJUSTMENT
CLUTCii LEVER
15 to 35 mm
(0.59-1.38 in)
1. Loosen the belt cover bolts and remove the belt cover.
2. Pull the cable boot up to expose the adjusting plate.
3. Disconnect the cable end from the clutch lever. The cable end can be
disconnected easily by squeezing the clutch lever and then holding the
cable while releasing the lever. Be careful to avoid bending the cable.
NOTE: Observe the position of the belt tension spring and lower cable
end in the adjusting plate, so you will know which holes were used
when the spring or cable is disconnected from the plate.
30
