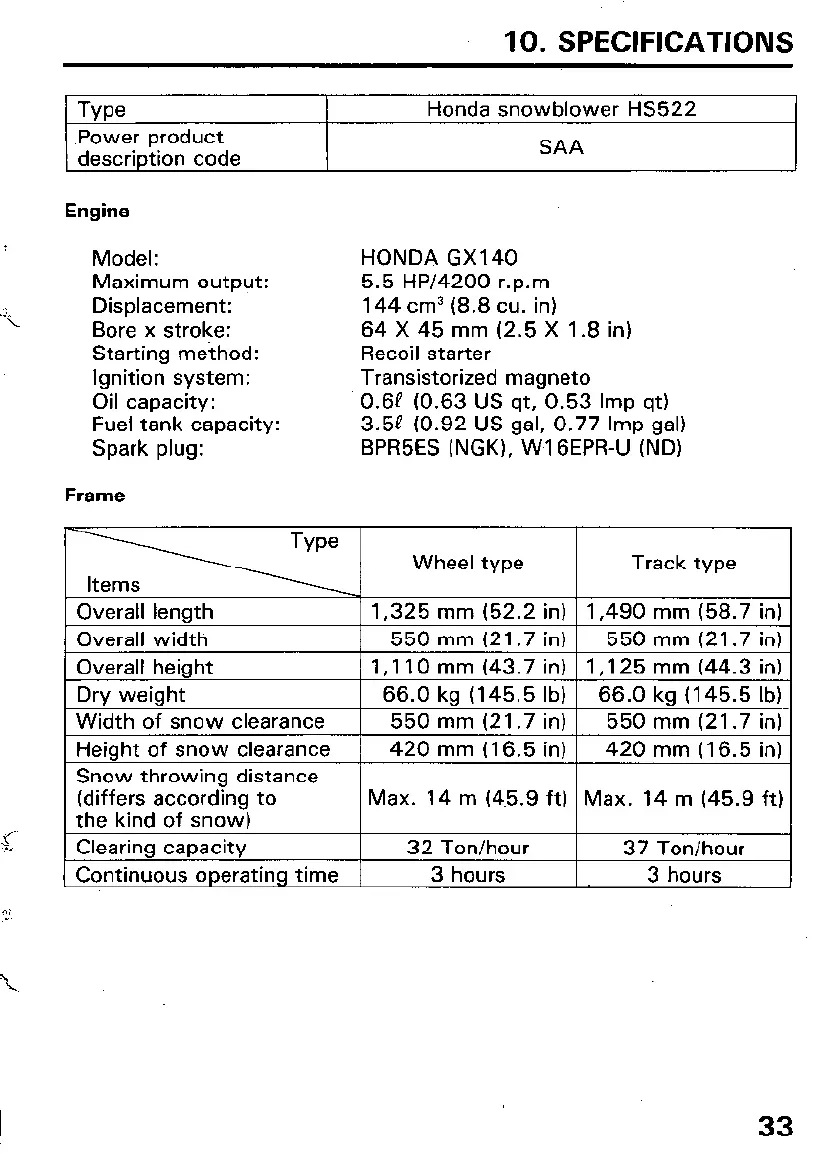

10. SPECIFICATIONS
Type
.Power product
description code
Honda snowblower HS522
SAA
Engine
Model:
Maximum output:
Displacement:
Bore x stroke:
Starting method:
Ignition system:
Oil capacity:
Fuel tank capacity:
Spark plug:
HONDA GX140
5.5 HP/4200 r.p.m
144 cm3 (8.8 cu. in)
64 X 45 mm (2.5 X 1.8 in)
Recoil starter
Transistorized magneto
0.6P (0.63 US qt, 0.53 Imp qt)
3.52 (0.92 US gal, 0.77 Imp gal)
BPR5ES (NGKI, WIGEPR-U (ND)
Frame
Wheel type Track type
Overall length
1,325 mm (52.2 in) 1,490 mm (58.7 in)
Overall width
550 mm (21.7 in) 550 mm (21.7 in)
Overall height
I,1 10 mm (43.7 in) 1,125 mm (44.3 in)
Dry weight 66.0 kg (145.5 lb) 66.0 kg (145.5 lb)
Width of snow clearance 550 mm (21.7 in) 550 mm 121.7 in)
.g
Height of snow clearance 420 mm (16.5 in) 420 mm (16.5 in)
Snow throwing distance
(differs according to Max. 14 m (45.9 ft) Max. 14 m (45.9 ft)
the kind of snow)
Clearinq capacitv
32 Ton/hour
37 Ton/hour
1 Continuous operating time 1 3 hours
3 hours
33
