Honda K20C1 User Manual

This document is confidential and is supplied on express condition that it shall not be lent, copied, or
disclosed to any other person, or used for any other purpose without the written consent of Honda
Performance Development.

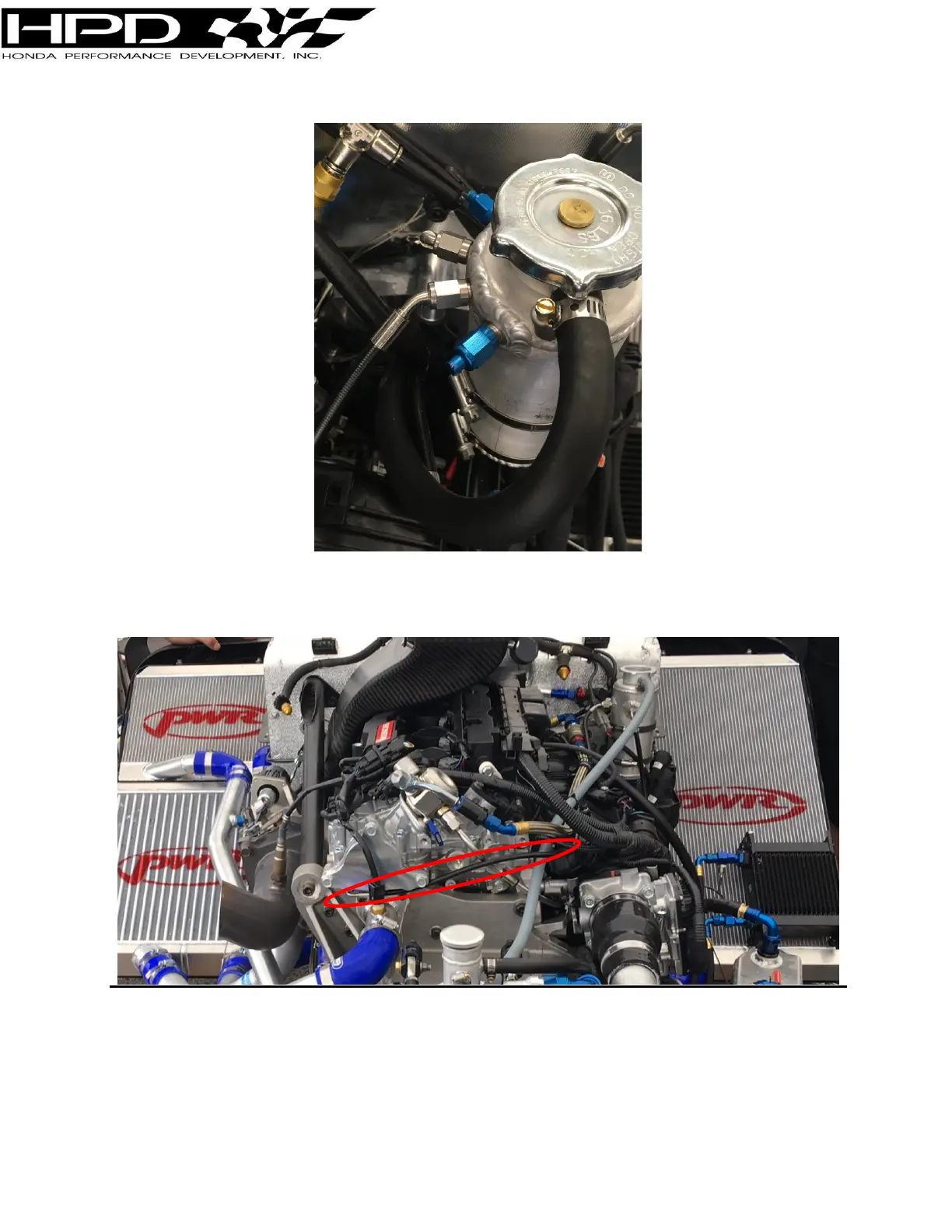

Figure 5: (Water Tank Ports - typical)
Figure 6: (Cylinder Head Port – depicted here with a constant bleed line directly behind
the water temperature sensor)

Honda K20C1 Specifications

General

Displacement	1996 cc
Compression Ratio	9.8:1
Fuel System	Direct injection
Redline	7000 rpm
Engine Type	Inline 4-cylinder
Bore x Stroke	86 mm x 85.9 mm
Maximum Power	306 hp at 6500 rpm
Maximum Torque	295 lb-ft @ 2500-4500 rpm
Turbocharger	Single-scroll
Valvetrain	DOHC, VTEC
