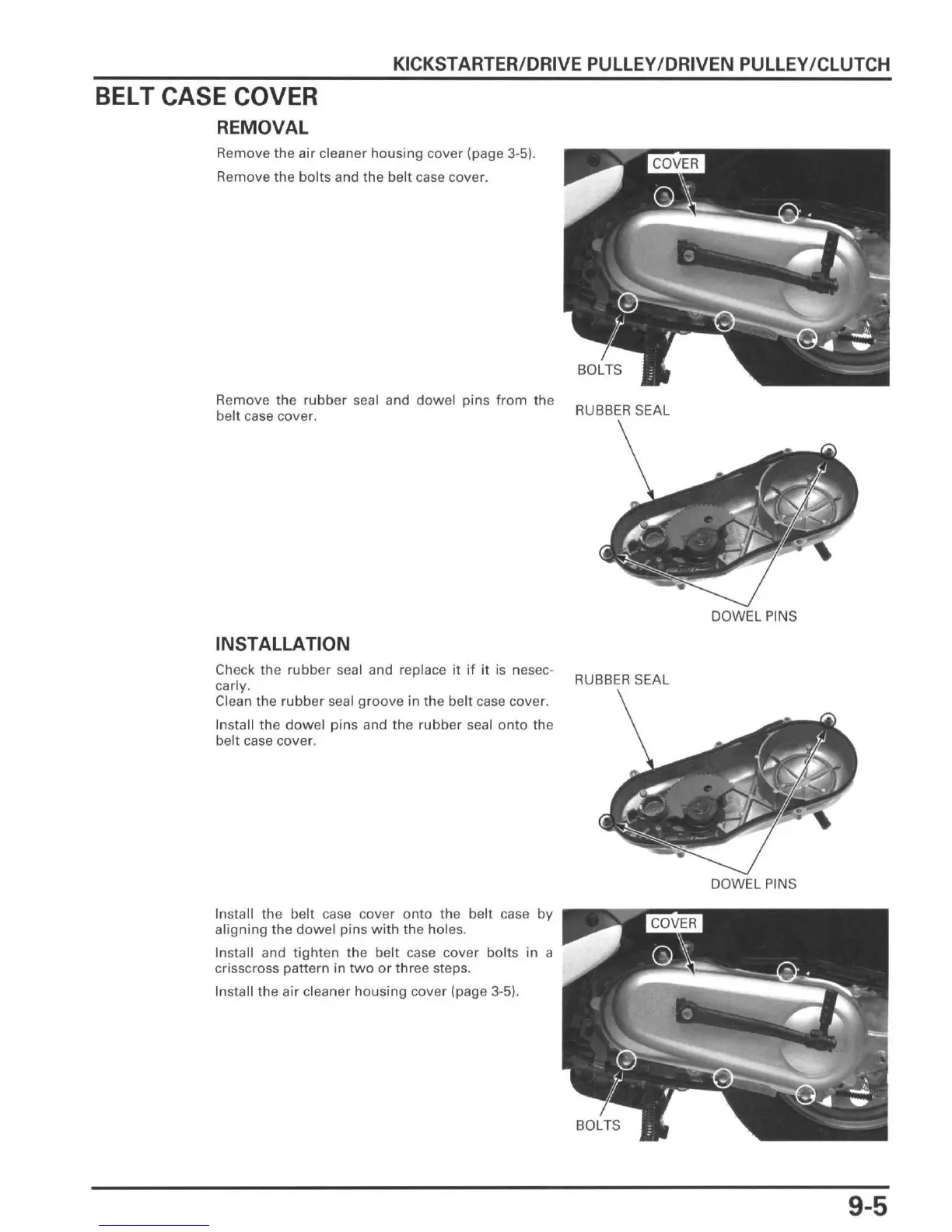

Honda Metropolitan CHF50 User Manual

KICKSTARTER/DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
BELT CASE COVER
REMOVAL
Remove the air cleaner housing cover (page 3-5).
Remove the bolts and the belt case cover.
Remove the rubber seal and dowel pins from the
belt case cover.
BOLTS
RUBBER SEAL
DOWEL PINS
INSTALLATION
Check the rubber seal and replace it if it is nesec-
carly.
Clean the rubber seal groove in the belt case cover.
Install the dowel pins and the rubber seal onto the
belt case cover.
RUBBER SEAL
DOWEL PINS
Install the belt case cover onto the belt case by
aligning the dowel pins with the holes.
Install and tighten the belt case cover bolts in a
crisscross pattern in two or three steps.
Install the air cleaner housing cover (page 3-5).
BOLTS
9-5

Honda Metropolitan CHF50 Specifications

General

Engine Type	49cc liquid-cooled single-cylinder four-stroke
Ignition	CDI
Transmission	Automatic V-Matic belt drive
Rear Suspension	Single shock
Front Brake	Drum
Rear Brake	Drum
Front Tire	80/100-10
Rear Tire	80/100-10
Seat Height	28.3 inches
Fuel Capacity	1.3 gallons
Bore x Stroke	37.8mm x 44.0mm
Compression Ratio	12.0:1
Starter	Electric
Curb Weight	179 pounds
