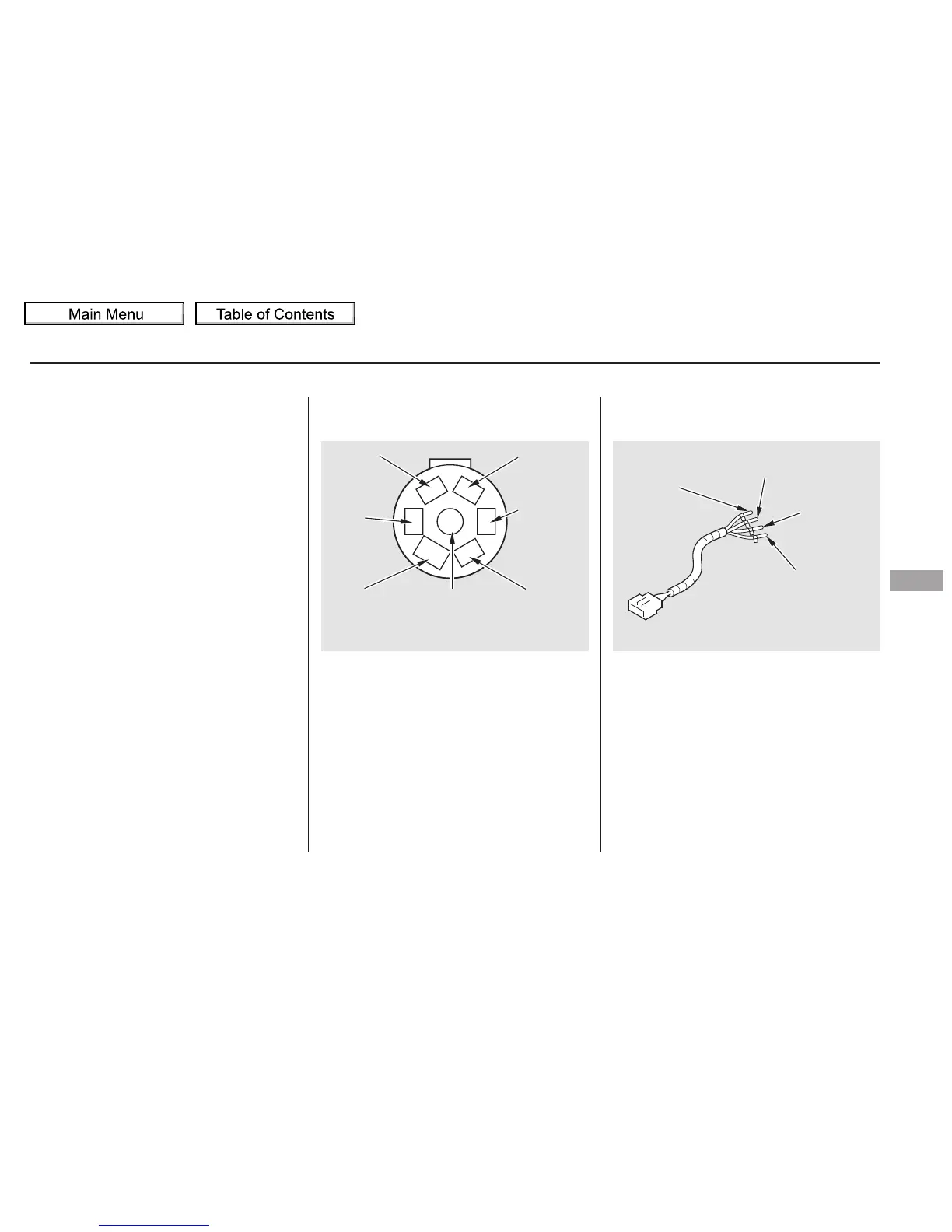

Refer to the above illustrations for
wiring information.
The trailer jumper harness is used to
install the controller for the electric
trailer brakes. For more information,
see on page .
Insert the connector securely into
the socket.
Hook the retaining tab on the
inner side of the lid against the
retaining tab of the connector to
prevent disconnection during
operation.
Insert the trailer brake fuse into the
secondary under-hood fuse box (see
page ).
3.
441
529
On Touring models On Touring models
Towing a Trailer
Trailer Jumper HarnessTrailer Connector Sockets
Trailer Brakes
Trailer Brake Fuse
Driving
445
7-PIN TRAILER SOCKET
SMALL
LIGHT
(GREEN)
LEFT
TURN/
STOP
(RED)
BACK LIGHT
(YELLOW)
GROUND
(BLACK)
BRAKE
(20A)
(BLUE)
ELECTRIC BRAKE
(BROWN/WHITE)
BRAKE LIGHTS
(SKY BLUE)
B
CHARGE
(BLUE)
RIGHT
TURN/
STOP
(WHITE)
ELECTRIC
BRAKE
(BROWN/
WHITE)
GROUND
(BLACK)
