1/8 5/16 in
(3 8 mm)
1/85/16in(38mm)
(1)
(2)
(B)
(4)(3)

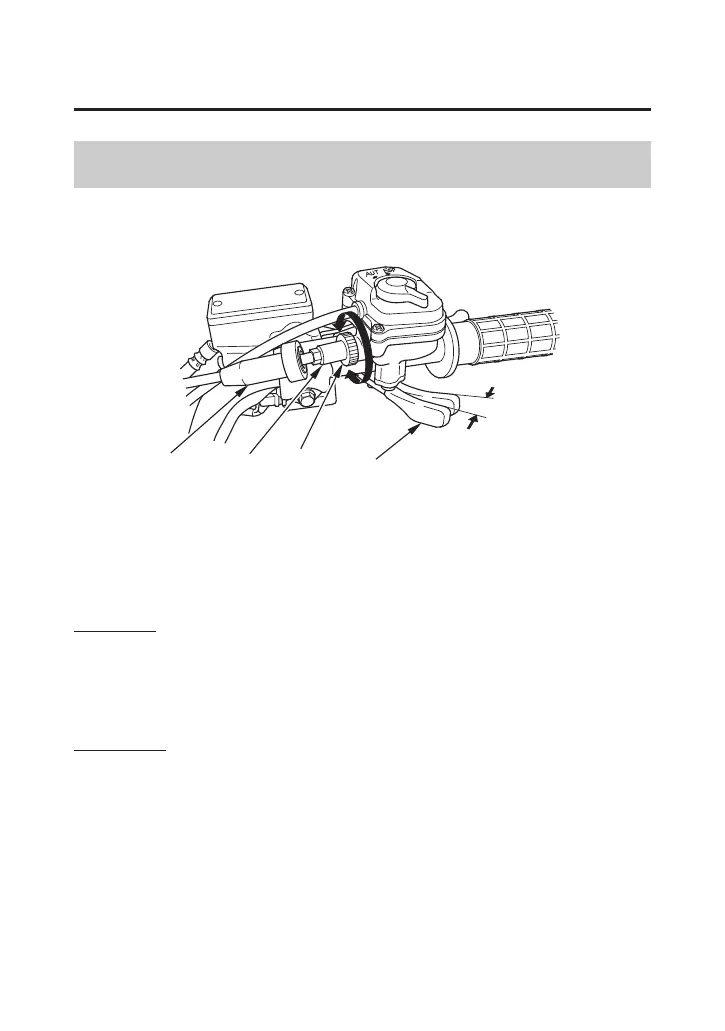

(1) throttle lever
(2) rubber sleeve
(3) throttle cable adjuster
(4) lock nut
(A) decrease freeplay
(B) increase freeplay
RIGHT HANDLEBAR
((AA))
135
Throttle Freeplay
Throttle
Servicing Your Honda
Safety PrecautionsRefer to on page .
After adjustment, check for smooth operation of the throttle lever
from fully closed to fully open in all steering positions.
Tighten the lock nut and reinstall the sleeve.
Loosen the lock nut ( ).
Turn the adjuster to obtain the correct freeplay.
Slide the rubber sleeve ( ) back to expose the throttle cable adjuster
().
Adjustment
Check freeplay at the throttle lever ( ).
Freeplay:
Inspection
1.
2.
3.
4.
5.
2
4
3
1
95
