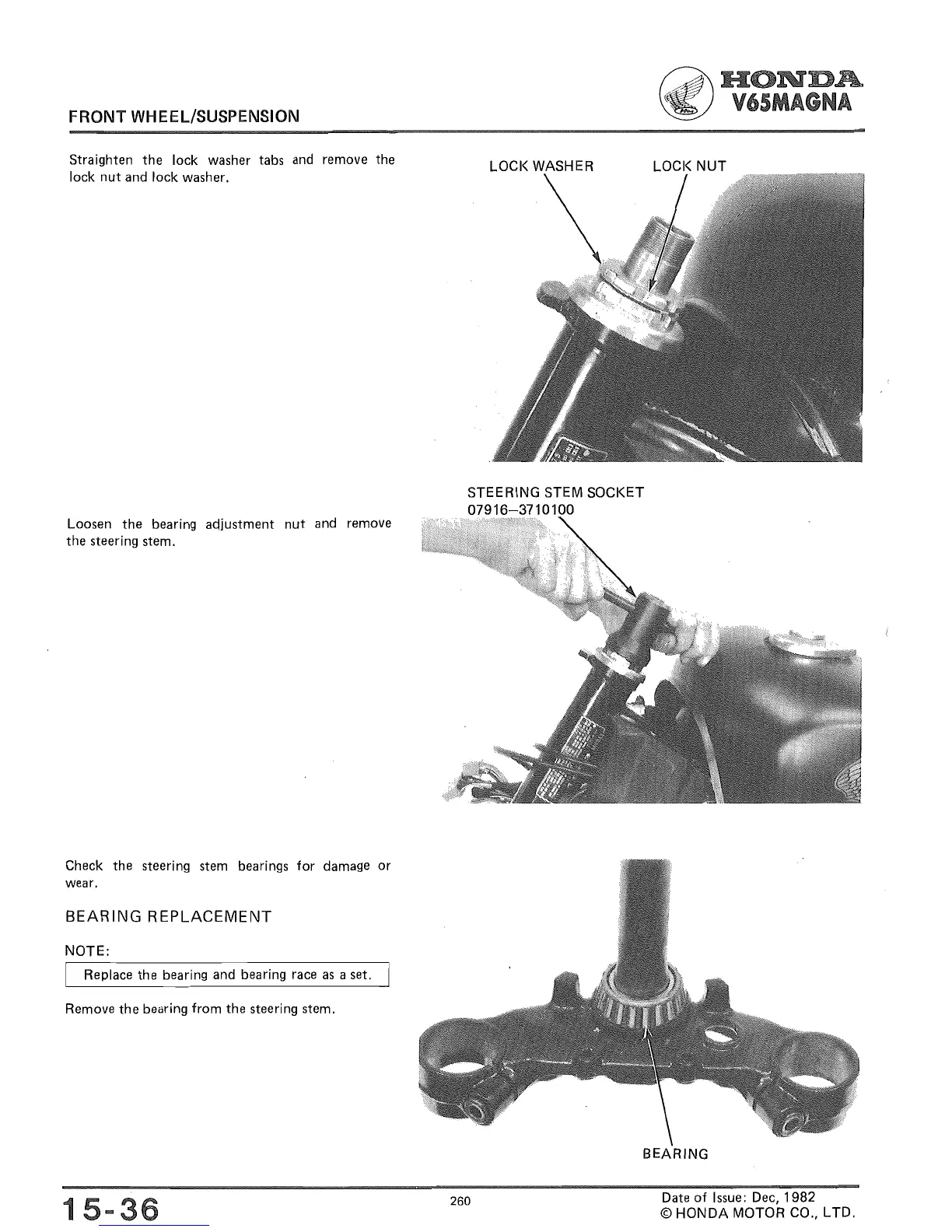

Honda VF1100C - Bearing Replacement

FRONT WHEEL/SUSPENSION
Straighten the lock washer tabs and remove the
lock nut and lock washer.
LOCK WASHER
CiJJ\HONDA
~ V65MAGNA
Loosen the bearing adjustment nut and remove
the steering stem.
Check the steering stem bearings for damage or
wear.
BEARING REPLACEMENT
NOTE:
Replace the bearing and bearing race as a set.
Remove
the bearing from the steering stem.
STEERING STEM SOCKET
07916-3710100
BEARING
15 .. 36
260
Date of Issue: Dec, 1982
© HONDA MOTOR CO., LTD.
