Honda WT20X - Servicing the pump casing

32
Servicing the pump casing5.
VOLUTE CASE
PUMP CASING
PUMP COVER
WRENCH
WRENCH
KNOBS
KNOBS
O-RING
PUMP DRAIN PLUG

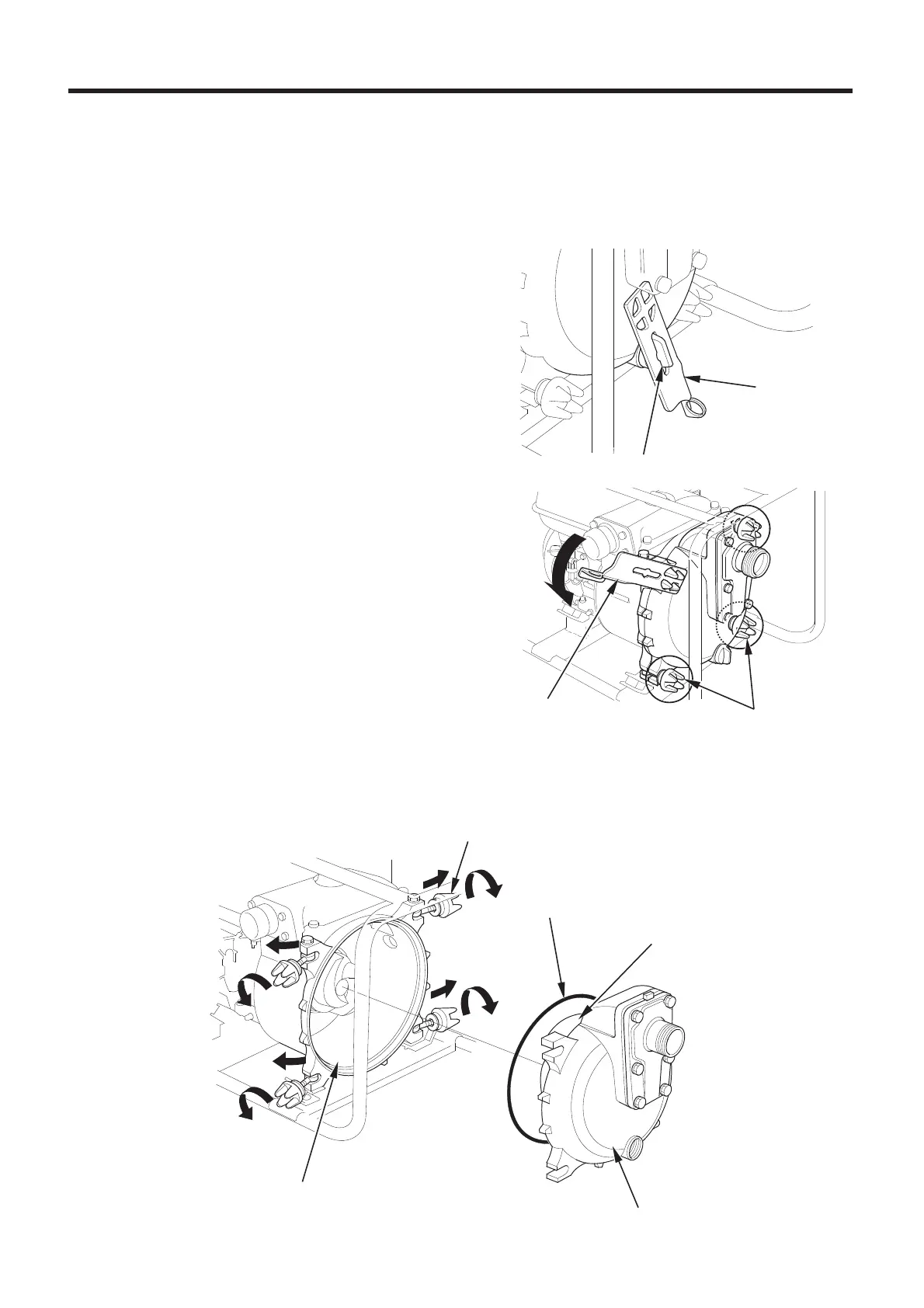

After each use, clean the inside of the pump casing using the following
procedure:
Remove the pump cover and the volute case from the pump casing,
and remove any debris from pump casing and volute case.
Loosen the pump cover knobs
using the wrench.
Remove the pump drain plug
from the pump cover using the
wrench to drain the water inside.
1.
2.
3.
