10

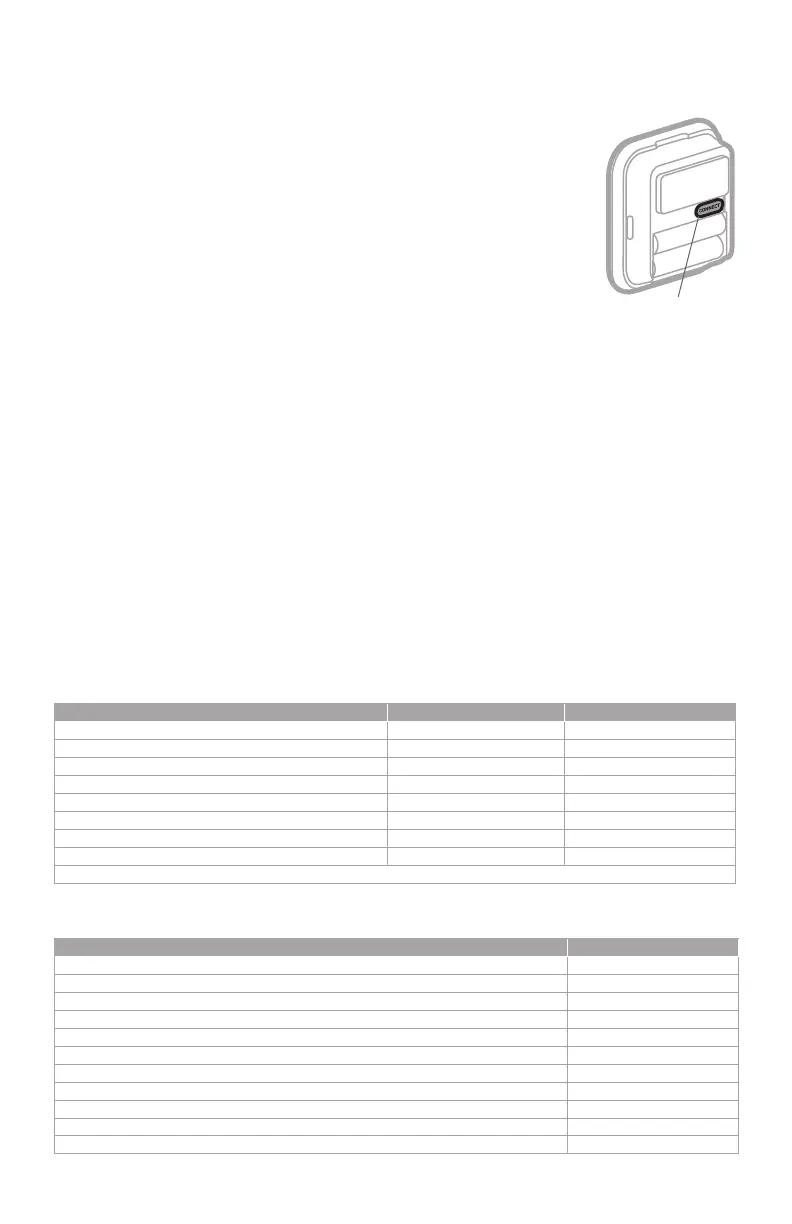

When you replace an EIM, you must reset the RedLINK
accessories before connecting them to the new thermostat.
Follow the instructions below:
At the Indoor Sensor or other RedLINK 3.0 accessory:
Press and hold the CONNECT button on the accessory until
the status light glows amber (hold for about 10 seconds). To
reconnect the thermostat, go to Step 4.
At the thermostat:
Go to Installer Options, choose Reset, then Factory reset.
This will clear the EIM and any other RedLINK 3.0 devices from
T10 as well as the system settings. After doing Factory Reset, follow thermostat
prompts to link new EIM and configure system settings.
Specifications
Control for up to 4 Heat/2 Cool heat pump systems or up to 3 Heat/2 Cool
conventional systems.
Operating Ambient Temperature
Equipment Interface Module: 40 to 165° F (40 to 74° C)
Operating Relative Humidity
Equipment Interface Module: 5% to 95% (non-condensing)
Physical Dimensions (height, width, depth)
Equipment Interface Module: 95/16 x 413/16 x 119/32 inches (91 x 147 x 42 mm)
Electrical ratings
Terminal Voltage (50/60 Hz) Max. Current Rating
W1 (stage 1 heat) 18 to 30 VAC 1.00A
W2/Aux1 (stage 2 heat or aux heat 1) 18 to 30 VAC 0.60A
W3/Aux2 (stage 3 heat or aux heat 2) 18 to 30 VAC 1.00A
G (fan) 18 to 30 VAC 0.50A
Y1 (compressor stage 1) 18 to 30 VAC 1.00A
Y2 (compressor stage 2) 18 to 30 VAC 0.60A
O/B (changeover valve) 18 to 30 VAC 1.00A
U1, U2, or U3 (dry contacts) 18 to 30 VAC 0.50A
L (input for heat pump)
M38771
To replace the Equipment Interface Module (EIM)
Press and hold
Indoor sensor
Model Numbers and Replacement Parts
Accessories / Replacement Parts Part Number
Equipment Interface Module (EIM) THM04R3000
Wireless Indoor Sensor (2-pack) C7189R30022
T10+ Thermostat with Indoor Sensor THX321WFS3001W
T10+ Thermostat without Sensor THX321WF3003W
T10+ Thermostat, EIM, RATS/DATS, Wireless Indoor Sensor YTHM1004R3000
T10+ Thermostat, EIM, RATS/DATS, OAS, Wireless Indoor Sensor YTHM1004R3001
Wireless Outdoor Sensor (OAS) C7089R3013
Wired Indoor Sensor (10K ohm) C7189U1005
Wired Outdoor Sensor (10K ohm) C7089U1006
Large Cover Plate for T10+ Thermostat THP2400A1080
Wired Floor Sensor for Radiant Heat (10K ohm) AC11201
