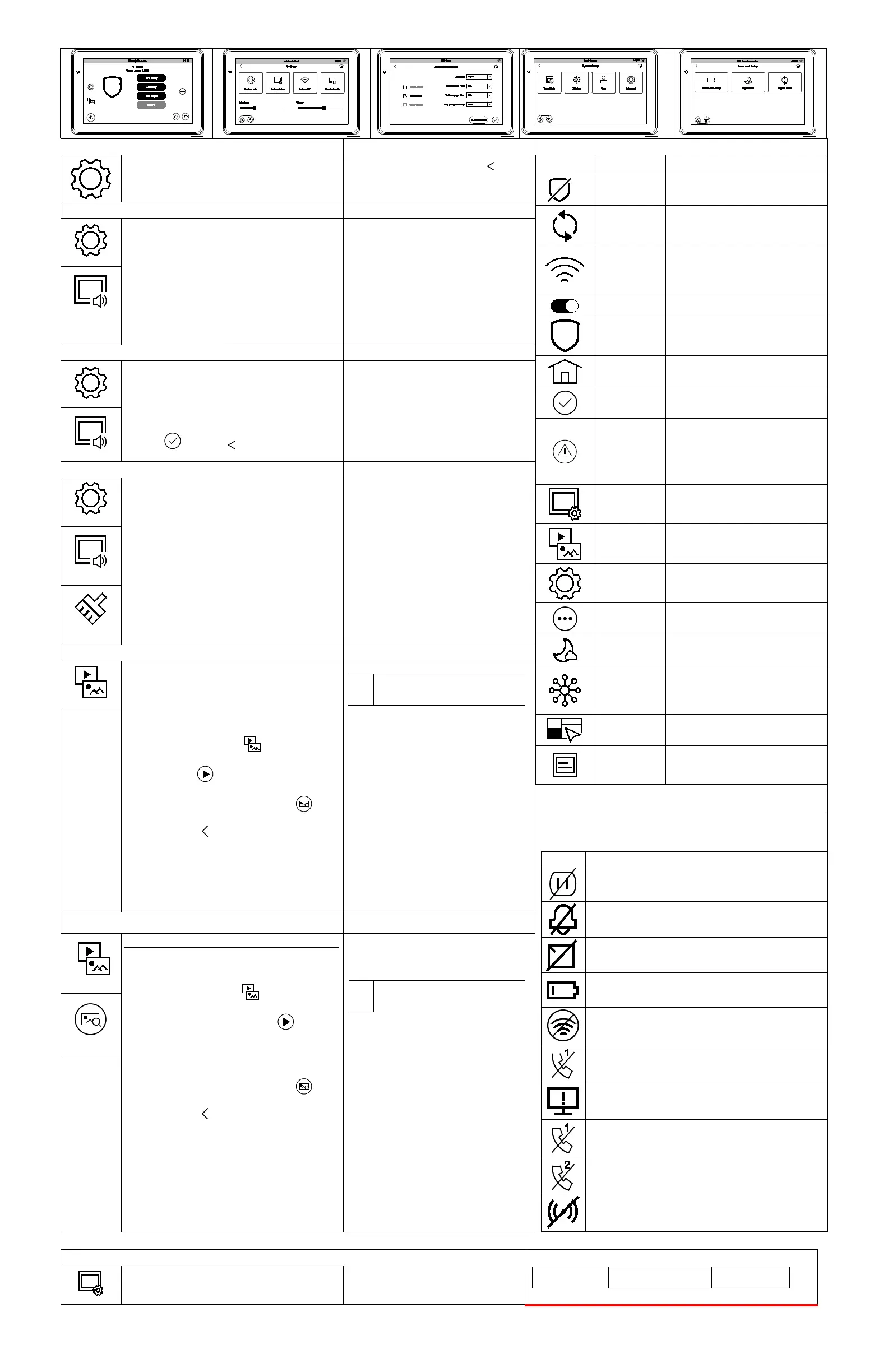

Adjust the Brightness / Volume
1. From the Home/Security screen, select the
Setup icon.
2. Move the Brightness/Volume slide bar to
adjust the brightness/volume.
Changes are saved when you exit this
screen.
The Security screen displays an Icon(s) if a panel fault occurs. The
following lists the Icons that are displayed to the left of the Panic
icon.
AC Loss;
The system is not receiving AC power.
Bell Failure;
The system bell or siren has a problem. Note: This Icon
is displayed when interfacing with residential panels only.
Expander Failure;
The system has a failure in an expansion module.
Low Battery;
The system battery, that powers the system during an AC
LRR Supervision Failure;
The Communication Device used to communicate with
the central station has a supervision failure.
Max Attempts Exceeded;
The system has exceeded the maximum attempts to
communicate with the Central Station.
Pager Failure; The system cannot communicate with an
assigned pager.
Telco-1 Cut;
The system is not able to communicate with the central
monitoring station over the primary phone line.
Telco-2 Cut;
The system is not able to communicate with the central
monitoring station over the secondary phone line.
Wireless Failure;
The system is not able to communicate with its wireless
devices.
ICON ICON TITLE FUNCTION
Disarmed System is Disarmed
Reset Select to reset Touchscreen
WIFI
Accesses WIFI Setup screen. Used
to connect to WIFI networks. (if
installed and programmed by your
installer.)
WIFI ON Select to turn WIFI On and OFF.
Security
Arm the system and access the three
arming modes.
Home
Returns you to the Home/Security
screen.
Apply Select to accept changes.
Panic
Displays Emergency functions (as
programmed by the installer). See
Programming the Control Panel note.
Note: This icon is displayed and
active on all screens except while in
System Setup
This icon alerts the user to a Control
Panel Message.
Multimedia Accesses Image and Video files.
Setup Allows access to Setup menus.
More Choices
Allows access to Event Logs,
Console Mode and Show Zones
Night Setup
Allows user to Arm the system in
Night mode.
CS Setup
Provides access to ECP Address &
Options, Screen Security, Device
events, Code Authority, and Panel
Configuration.
ECP Address
& Options
Allows user to enter the ECP address
to communicate with alarm panel.
Panel Config.
Provides access to the details of your
system and panel configuration
information.
Operating Modes / Language Selection
1. Select the Disp&Audio Setup icon.
2. Enter your “Authorized Code" if required.
3. Select Chime Mode or Voice Mode to turn
the mode on or off.
4. To change the Touchscreen display
language, select the desired language from
the drop-down menu.
The touchpad will revert back to the
Home/Security screen with the selected language
If the Chime Mode and Voice Mode are both
selected, the Voice Chime is automatically
selected.
It may take a few seconds for the Chime
Mode to take effect.
When the Touchscreen exits the “Operating
Modes” screen, your selection is saved.
The Touchscreen allows you to select from
three languages, (English, French Canadian
and Latin American Spanish) with the default
being English.
Adjust the Screen Timeouts
1. Select the Disp&Audio Setup icon.
2. Enter your “Authorized Code" if required.
3. Select the desired selection from the drop-
down list displaying the time period for each
option.
4. Select to save or to go back to the
If changes are made, when you exit, a
message displays:
“Information Settings Saved”
Settings include:
• Backlight Off After X time
• Return To Homepage After X time
• Auto Slideshow After X time.
1. From the Home/Security screen, select the
Setup icon.
2. Select the Disp&Audio Setup icon.
3. Enter your “Authorized Code" if required.
4. Select the CLEAN SCREEN icon to disable
the Touchscreen for 26 seconds so you can
wipe the screen clean.
A pop-up window displays "Touch Screen will
be disabled so that you may wipe the screen
clean. Please use a damp, soft cloth. DO NOT
use any liquids, sprays, or ammonia-based
cleaners. Press CONTINUE to disable
touchscreen."
** Panics cannot be initiated during this process**
At the "Screen Disabled for =30 Seconds"
screen, the touchscreen should be wiped
clean of fingerprints using a mild soap solution
and a soft cloth. When the counter reaches
zero, the window aut
omatically closes and the
touchscreen is active.
IMPORTANT: Do not use an abrasive
cleaning agent or abrasive cloth when
cleaning the Touchscreen or damage to the
touchscreen may occur.
NOTE: The Emergency screen cannot be
accessed while running in the clean screen
mode.
Select Cancel to exit.
NOTE: Micro SD card max size is 64GB and must
be FAT32, SDXC format. Recommended is
Kingston or Samsung.
Insert a media card (Micro SD/ SDHC) with
stored (avi, .ts, .mpg, .mp4, .mov, .mkv, or .flv)
video files.
1. Select the Multimedia
icon and then
select the Video folder to view.
2. Select Play to start the selected
video file.
3. Select the Multimedia information icon
to view picture/video information.
4. Select Back
to return to the previous
screen.
NOTE: If the video file causes the keypad to lock,
press the reset button on the keypad to reset
the keypad.
U
L
Multimedia functionality is
supplementary only and has not
Picture Setup
Insert a media card (Micro SD/SDHC) with
stored (jpg, .bmp, .png or .jpeg) photos.
1. Select the Multimedia
icon and then
select the Picture folder to view.
2. Select a photo and select Play to view
pictures in a slide show format.
3. To set a picture as wallpaper, select the
Default/Wallpaper folder to activate the
wallpaper setting.
4. Select the Multimedia information
icon
to view picture/video information.
5. Select Back
to return to the previous
screen.
The Picture feature allows you to set up and
view up to 1000 stored photos or select a
photo to set it as a wallpaper display.
U
L
Multi-Media functionality is
supplementary only and has not
-2-
Panel Type Panel Version
1. Select the Setup →System Setup and CS
Setup icons.
When the Touchscreen cannot communicate
with the alarm panel, the message “ECP
Error” is displayed, check the following:
