17

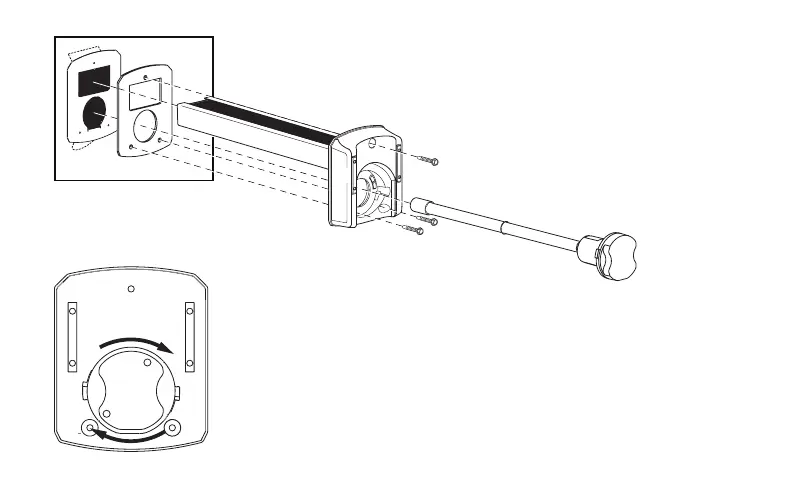

4. Remove one side of the backing from the gasket
and stick gasket on the duct board adapter so
that the openings line up.
5. Peel away the other side of the backing on the gasket and
insert AirBRIGHT into the duct until the base sticks securely
to the gasket.
6. Secure the base to the ductwork using self tapping screws.
7. Insert lamp into base and turn handle clockwise to lock in
place.
8. Find a suitable location on the outside of the duct-work
near the UV Lamp installation and apply the warning/lamp
replacement sticker.
