IMMERSION WELLS AND COMPRESSION FITTINGS
5 68-0040—04

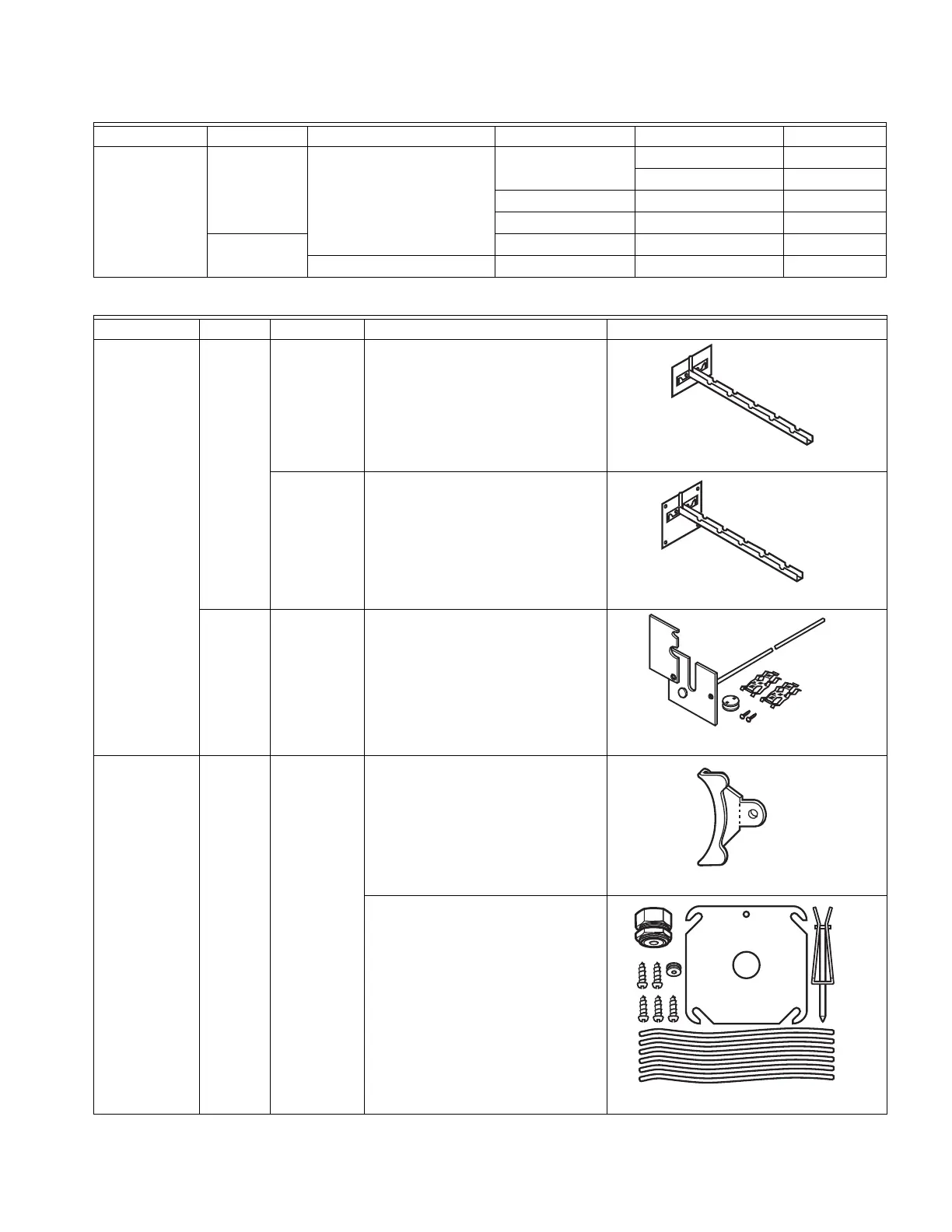

Table 3. Capillary Compression Fittings.
Material Spud Maximum Bulb Diameter Insulation Depth Capillary Diameter Part Number
Brass 1/2-14 NPT 1/2 in. 1-5/16 in. 5/64 in. 104484A
1/8 in. 7617M
1-1/2 in. 5/64 in. 104484C
2 in. 5/64 in. 7617ABY
3/4-14 NPT 1-5/8 in. 5/64 in. 104484B
11/16 in. 1-1/2 in. 1/8 in. 7617P
Table 4. Element Holders for Duct-Mount Applications .
Application Length Plate Size Description Part Number
Bulb holders 8-5/8 in. 2-3/4 in.
x 1-3/4 in.
Supports capillary and bulb in duct;
mounting screws not included.
2-3/4 in x 3 in.
14 in. 3-1/4 in x
3-1/4 in.
Holds 1 or 2 elements in 0°F to
100°F air; grommet holds one
5/64 in. and one 1/8 in. diameter
capillary; helps reduce airflow through
opening in duct.
Averaging
element holders
— — Mounting clip; use with grommet;
mounting screws not included; one
required per clip.
Use with 1/2 in. EMT thinwall conduit
where duct access is limited. Kit
includes 4 in. (101 mm) cover plate,
1/2 in. EMT compression fitting, 3/16
in. (5 mm) rubber grommet, clamp
assembly, wire ties and mounting
screws.
107324A
M17275A
131524A
M17276A
M17277A
311266D
314439
M17271
M17279
7640HX
