Mount the Charge Base or Net Base
You can mount the charger on a flat, horizontal surface such as
a desktop or workbench with an optional DIN rail.
Mounting hardware required:
• DIN rail
• 3/16-inch diameter x 5/8-inch long pan head screw
• 1/2-inch OD x 7/32-inch ID x 3/64-inch thick washer
• 3/16-inch diameter nut

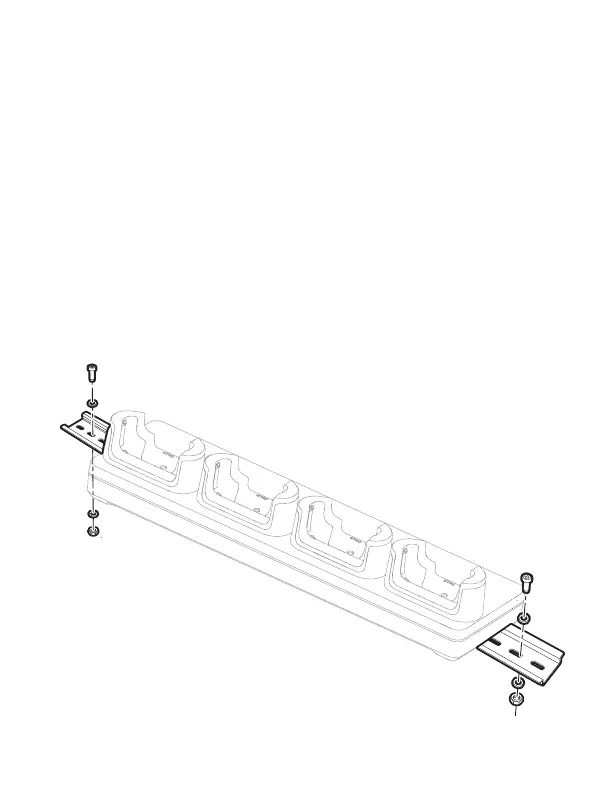

1. Slide the DIN rail into the slot on the bottom of the
Charge Base or Net Base.
2. Secure the DIN rail to the flat surface with the hardware.
